2016-2021 Tundra 7" Lift Fox 2.0 PS Coilover (BDS818FPS)

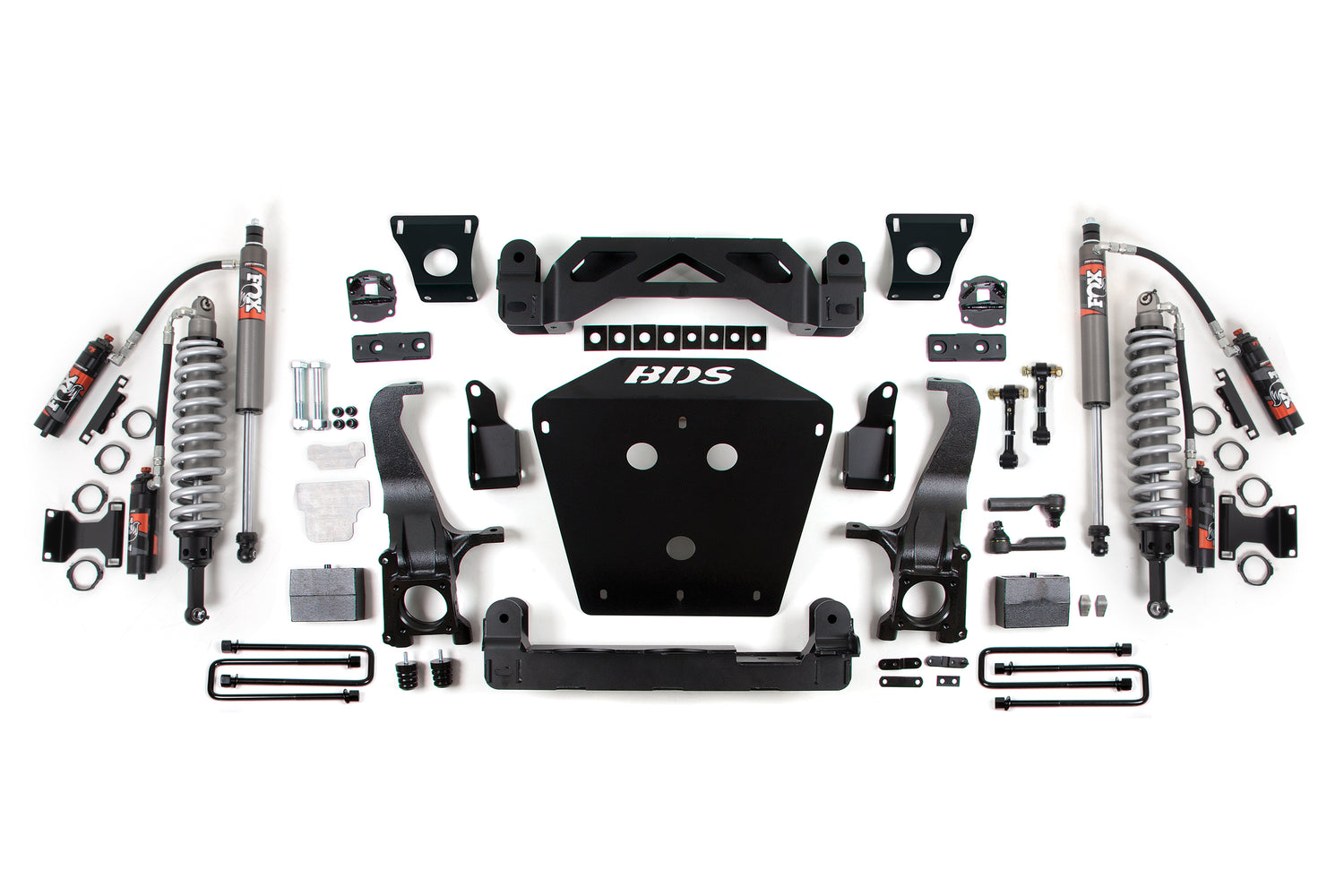

Engineered for serious Tundra enthusiasts, this 7" lift system pairs Fox 2.0 Performance Elite coil overs with BDS steering knuckles to deliver superior suspension performance. The setup maximizes ground clearance for aggressive tire upgrades while maintaining refined on-road manners and off-road control. Built for durability and responsive handling, it transforms your Tundra into a capable platform for both trail work and daily driving.

Features

• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.
• HD skid plate system improved offroad protection.
• Multipoint differential relocation brackets to secure the front axle and improve CV angles.
• FOX performance series IFP gas rear shocks to improved ride and offroad performance.
• Factory Protection Plus drivetrain warranty included

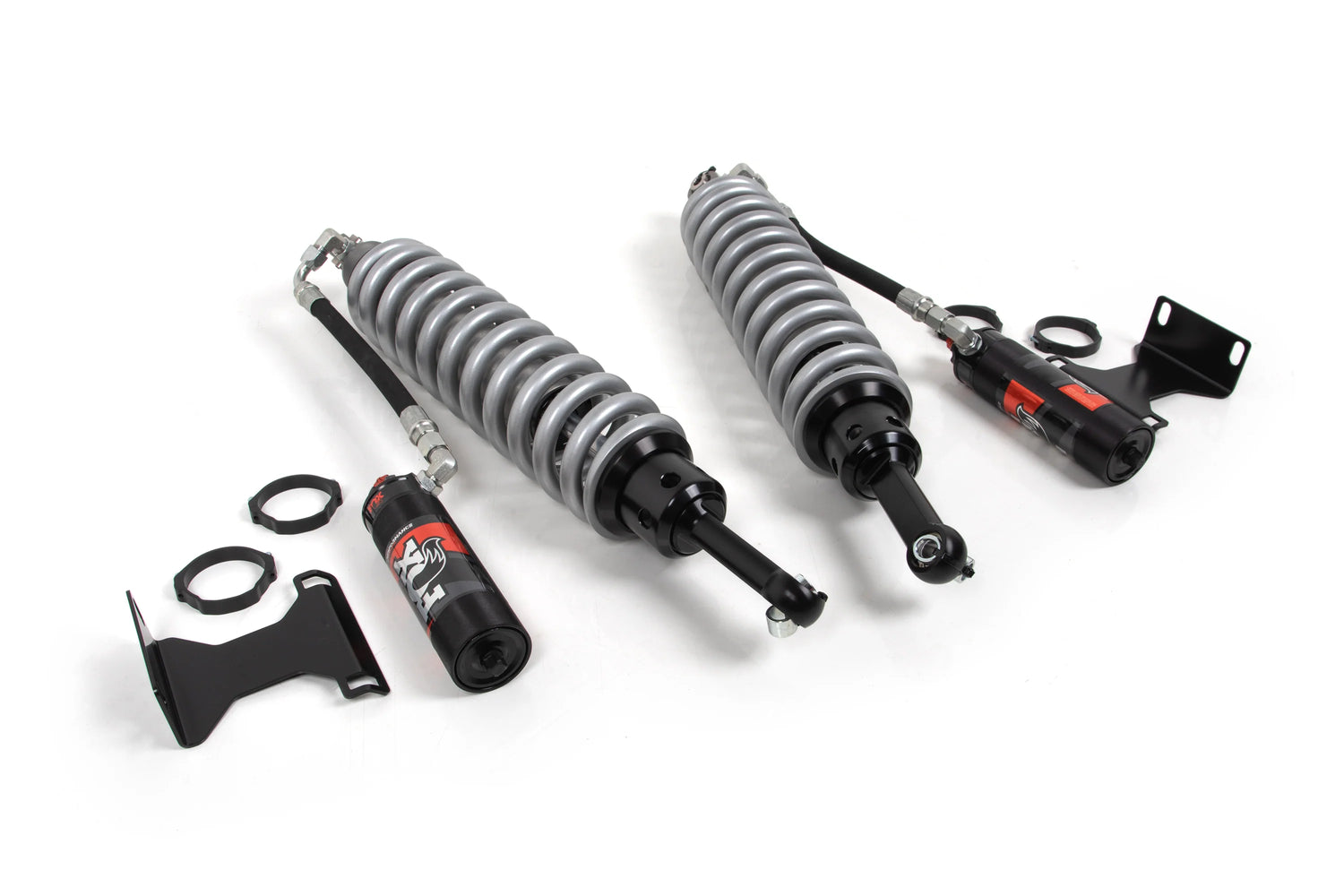

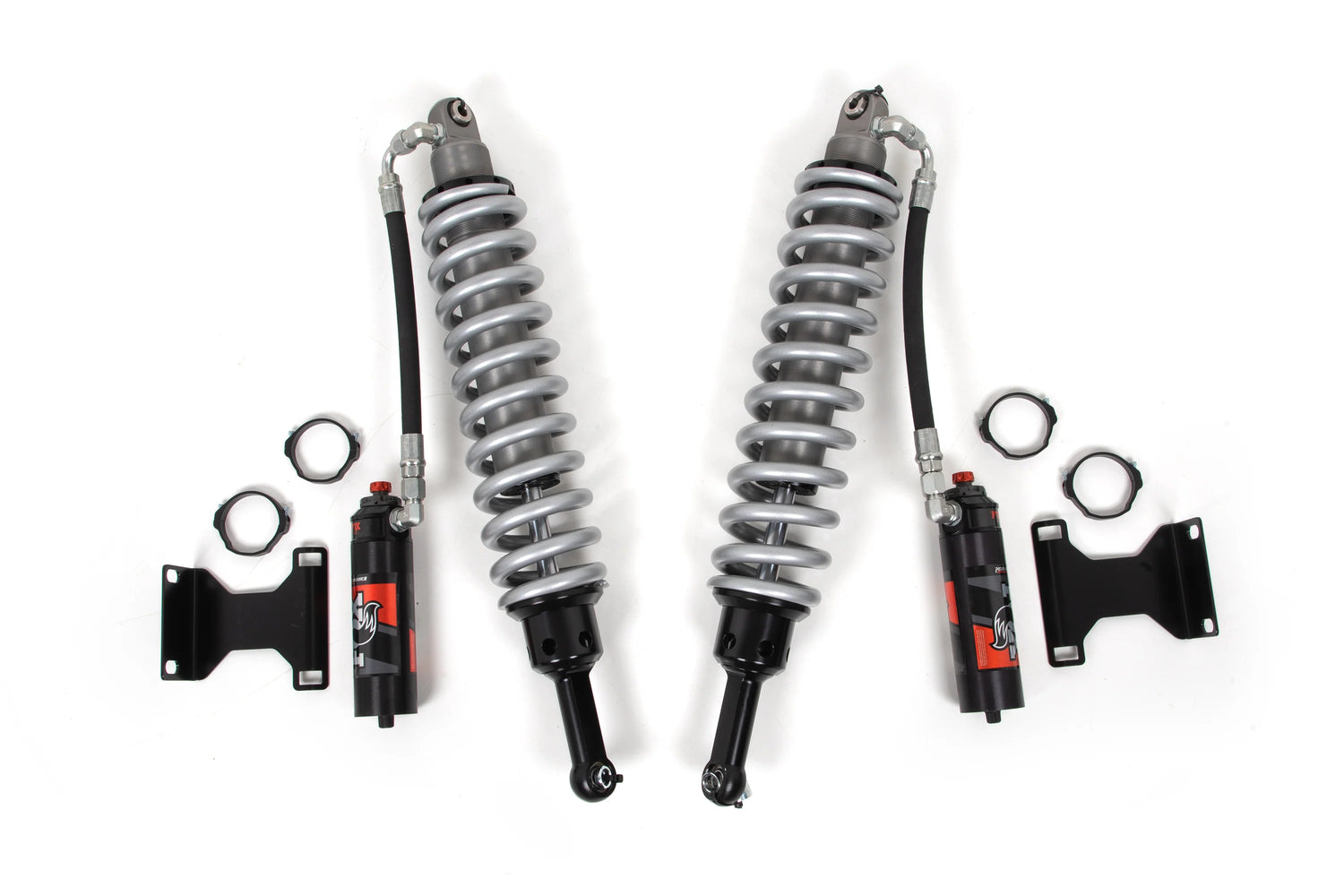

Shock Features

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Notes

• Requires frame bracket modification and welding
• No strut disassembly required
• Models with two piece rear drive line would require rear drive shaft modification
• Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface
• Will NOT work on TRD Pro (Bilstein and Fox Piggyback Strut) models

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 7"
• Rear Lift Method : Block
• Rear Lift Height : 4"
• Shocks Included : Yes
• Lift Height : 6-7.5"

Tire Fitment

• 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 6.25 in. Backspace
• 37 x 12.5 with 20 x 9 and 6.25 in. Backspace
