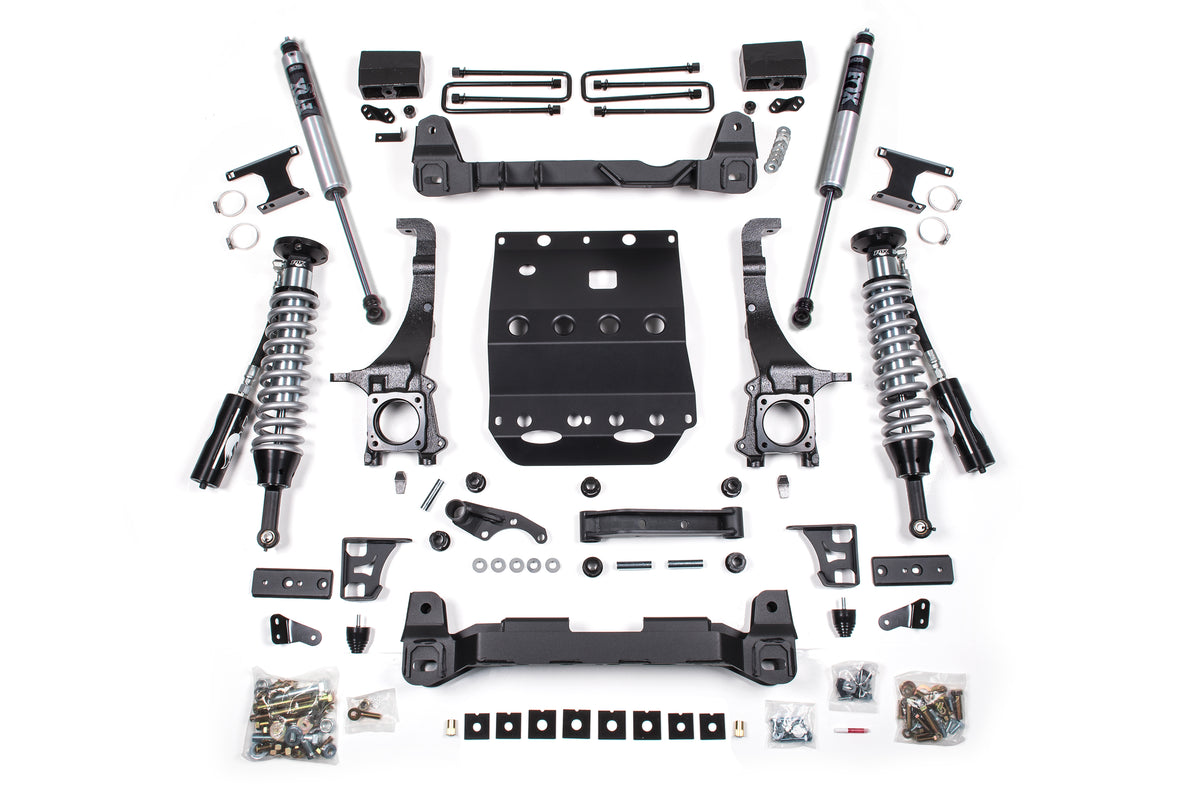

2016-2023 Tacoma 6" Lift Kit with FOX 2.5 Performance Shocks (BDS823F)

Take your 2016-2023 Toyota Tacoma 4WD to the next level with this BDS 6" suspension lift kit, with clearance for up to 35" tires. It uses BDS's high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry. Up front are FOX 2.5 coil-overs with remote reservoir, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates, CNC-machined ductile iron steering knuckles for ESC compatibility, plus sway bar drops, bump stop extensions, brake line brackets and lower control arm cams. The rear runs heavy duty cast steel lift blocks, longer u-bolts and FOX 2.0 IFP performance series shocks.

Features

• FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
• Optional Dual Speed Compression Adjust to tune high-speed and low-speed compression damping
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX 2.0 IFP gas rear shocks for improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• 2.5" smooth bore zinc plated seamless steel body, double-clear coated
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• Application-specific, adjustable 3.0 Eibach racing springs
• 7/8" hard chrome-plated steel shafts
• Application specific valving to maximize performance

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 4.5

Notes

• Will not work on TRD Pro models.
• Minor welding required.
• Requires frame bracket modification.
• Strut compressor required for installation.
• Stock wheels cannot be reinstalled.
• System will work on 2WD PreRunner models.
• Cannot use 17" wheels.
• FOX shocks required for 2013-2020 models.

Includes

• BDS018408, 2005-2023 Toyota Tacoma 4 inch Rear Block Kit (UPC 658848614479)
• BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4 (UPC 658848616190)
• BDS028612, 2016-2023 Toyota Tacoma Front Box Kit 3 of 4 (UPC 658848616244)
• BDS028621, 2016-2023 Toyota Tacoma Front Box Kit 2 of 4 (UPC 658848616251)
• FOX88302048, Kit: BDS 05-23 Tacoma Front Coilover, 2.5 Series R/R 6 inch (UPC 814897013896)
• FOX98224953, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
