2016-2023 Tacoma XB Evo Hybrid Headlights Set (LF2-530Y)

Description

Evolutionary: A simple design refresh would have been easy, but that's not what this is all about. The all-new XB Evo headlights are a showcase of everything Morimoto is made of. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Maximum Performance: Thanks to an all-new generation of Morimoto Bi-LED projectors, the XB Evo Hybrid headlights will meet & exceed the highest standards for headlight performance that are set by the Insurance Institute for Highway Safety... which is a tough mark even for most modern luxury automakers. Here, the Tacoma Evo Hybrid headlight utilizes dual Bi-LED projectors to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness.

Specs & Features

• Traffic Pattern: LHD / Right Hand Traffic Only
• Output (Standard Drivers): DOT (FMVSS108) Compliant (LB2V and UB2)
• Output (Supercharged Drivers): Non-Compliant
• Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
• Functions: Low, High, Park, Turn, and DRL
• Turn Signal Modes: Fade Off
• DRL Color: White

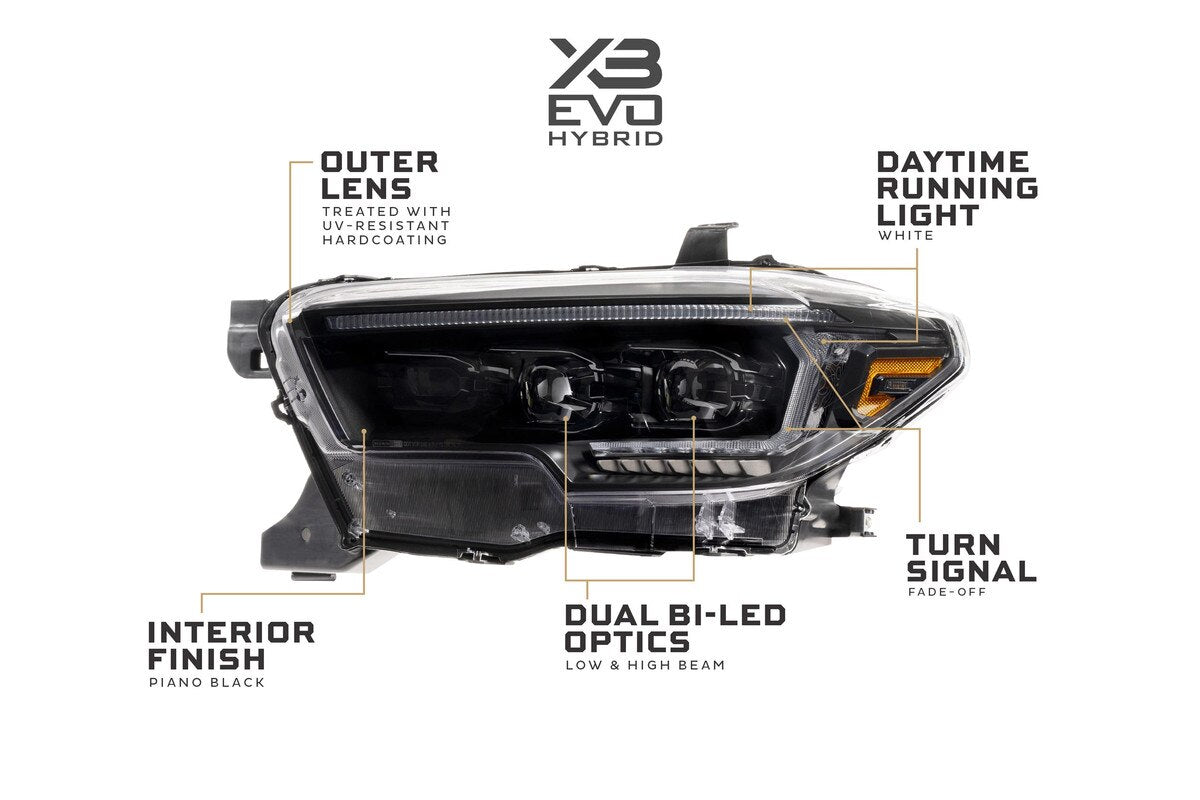

• DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern
• Internal Finish: Piano Black
• Side marker: Amber side reflex reflector (DOT compliant)

Features

• Dual Bi-LED Projectors: Two Type 1 Ishida Optic Bi-LED projectors with Nichia LEDs give a bright, wide low beam and a strong high beam.
• IIHS-Level Performance: Built to meet and exceed the IIHS standards for headlight performance.
• DOT Compliant: Meets FMVSS108 for on-road use, with +/- 6 degrees of vertical aim adjustment, even with a lift.
• 3D TIR Signals: Glass-like 3D TIR DRL and signal optics, with a white DRL and a fade-off turn signal.

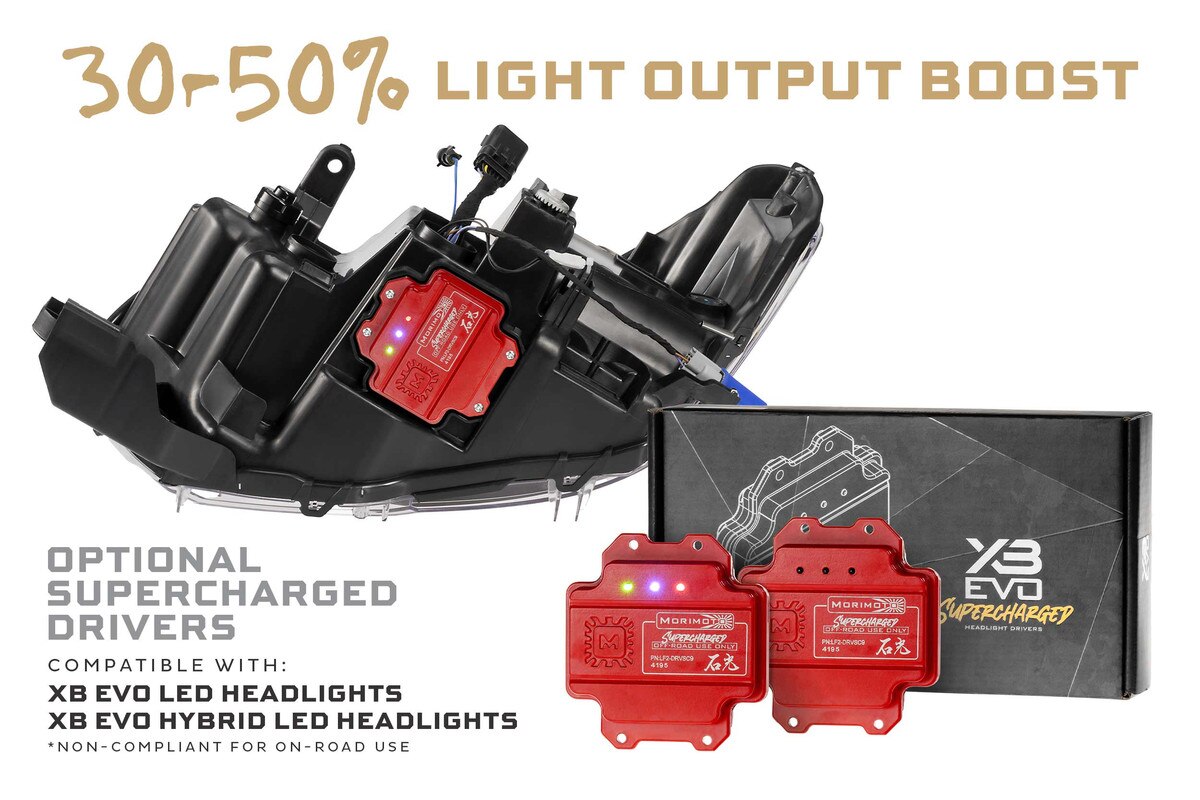

• Supercharged Ready: Optional LF2-DRVSC9 drivers boost low and high beam output 30 to 50% for off-road use only.

Specs

• Traffic Pattern: LHD / Right Hand Traffic Only
• Output (Standard Drivers): DOT (FMVSS108) Compliant (LB2V and UB2)
• Output (Supercharged Drivers): Non-Compliant
• Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
• Functions: Low, High, Park, Turn, and DRL
• Turn Signal Modes: Fade Off
• DRL Color: White
• DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern
• Internal Finish: Piano Black
• Side Marker: Amber side reflex reflector (DOT compliant)
• Lens Details: Polycarbonate with UV-Shield Hard coating

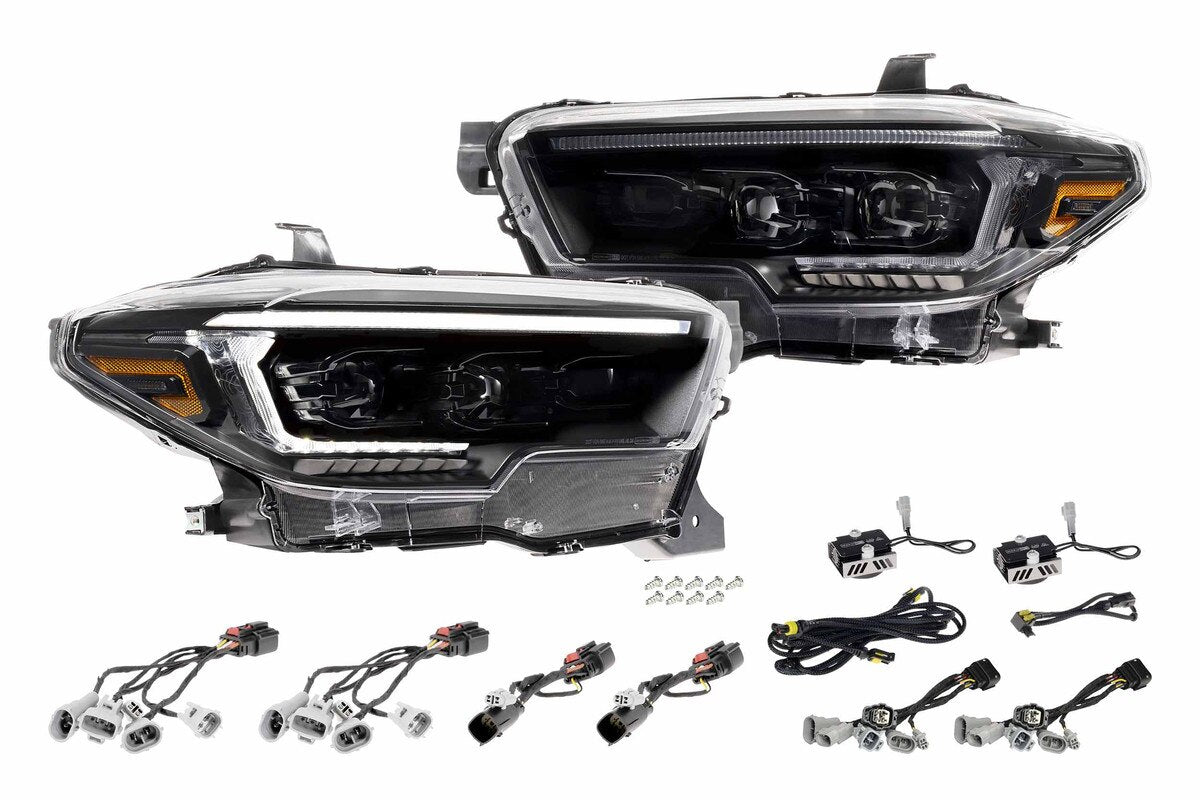

Includes

• Headlights: 2x (One Pair) 16-23 Toyota Tacoma XB Evo Hybrid

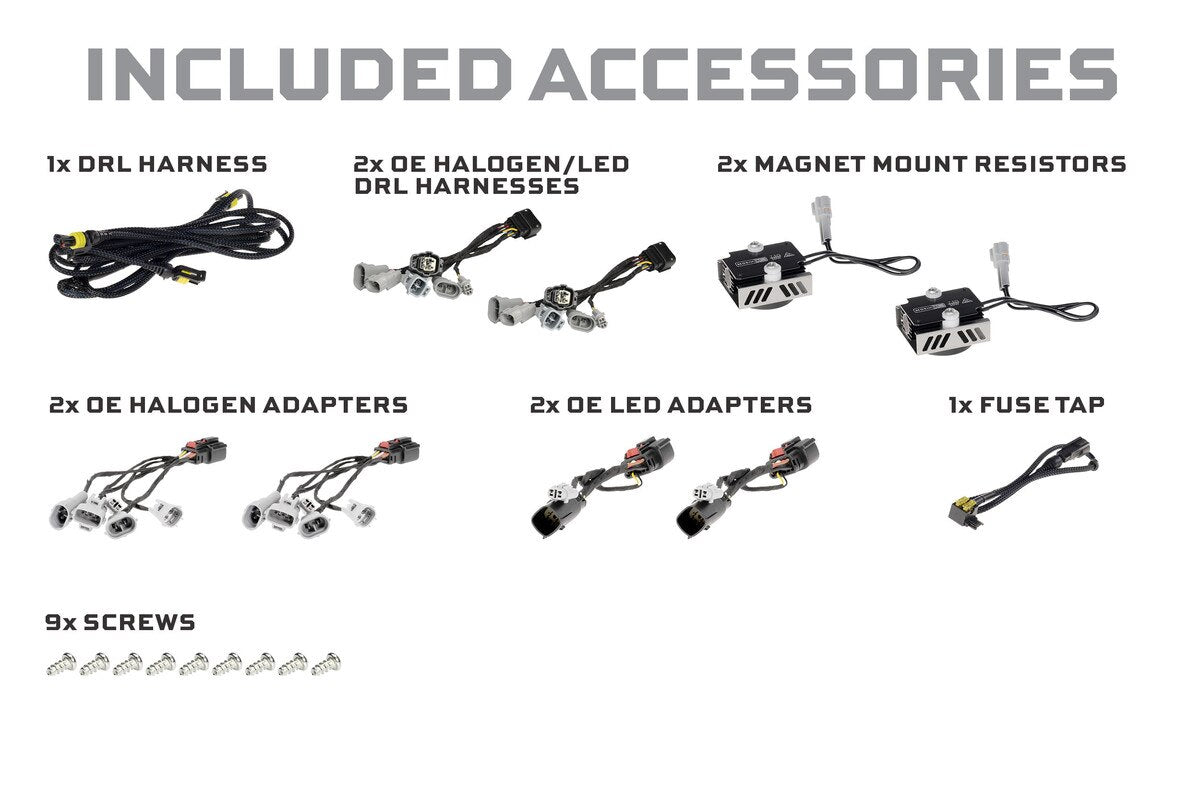

• Wiring: 2x Halogen Adapters, 2x LED Adapters, 2x Magnet Mount Resistors, 1x DRL Harness, 1x Fuse Tap, 9x Screws

Compatibility

• Compatible with Supercharged Drivers: LF2-DRVSC9
• Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.

Notes

• Compliance: Meets all DOT, SAE and FMVSS108 Standards*
• These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
