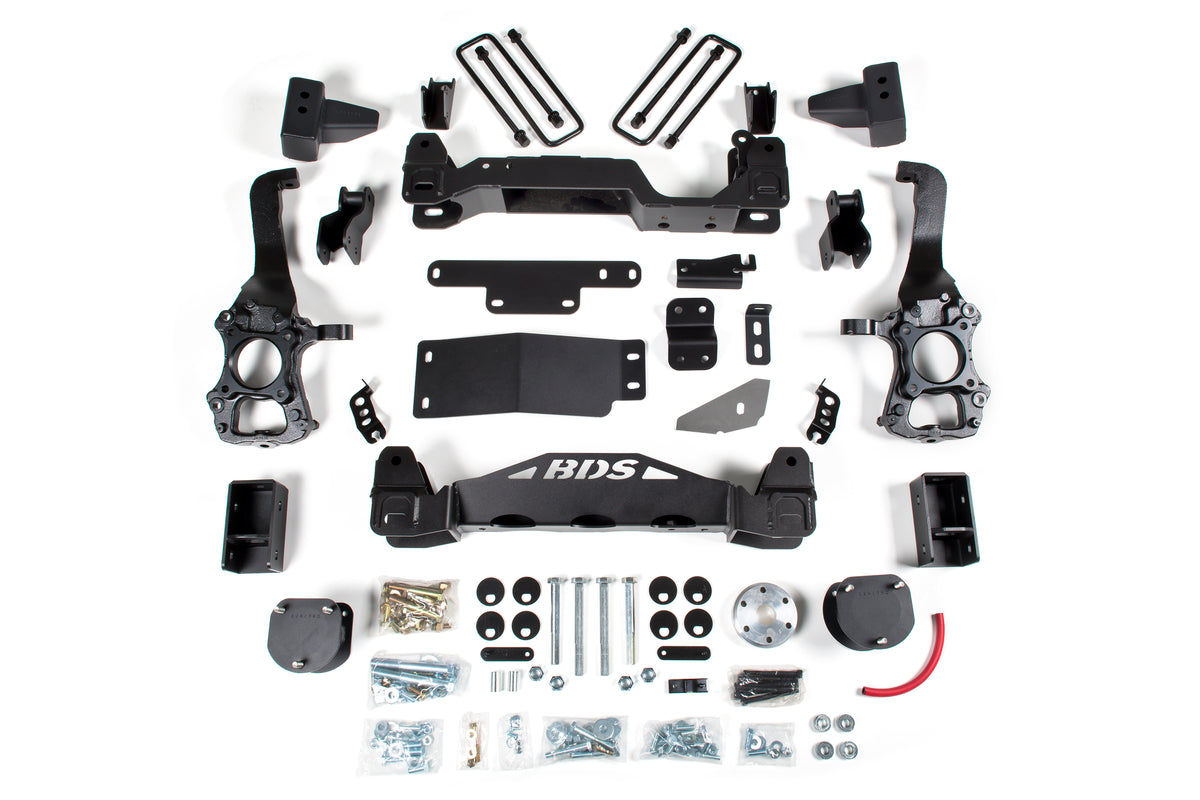

2017-2018 F-150 4" Lift Kit (BDS1962H)

BDS 4" suspension lift for the 2017-2018 Ford F150 Raptor 4WD with clearance for up to 37" tires. BDS determined the 4" lift height allows the best use of the factory FOX shocks while maintaining full factory suspension travel. Up front it uses 1/4" thick high-arched steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets, a skidplate, CNC-machined ductile iron steering knuckles, sway bar relocation brackets, brake line brackets, and alignment cam bolts. In the rear it uses high strength lift blocks and longer u-bolts plus rear shock relocation brackets to maintain the FOX internal bypass rear shocks.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts lift and level the stance
• Shock relocation brackets maintain factory FOX shocks
• Tail low to level stance
• FMVSS No.126 compliant

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: No
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5

Notes

• Requires frame bracket modification and welding.
• Stock wheels cannot be installed.
• 37x12.50 on 18x9 w/ 5 inch BS - check for proper tie rod end clearance.

Includes

• BDS013439, 2015-2020 Ford F150 4 inch Rear Block Kit (UPC 658848613557)
• BDS023408, 2017 Ford Raptor Box Kit (UPC 658848615674)
• BDS023634, 2015-2020 Ford F150 Knuckle Box Kit - DS (UPC 658848615919)
• BDS023635, 2015-2020 Ford F150 Knuckle Box Kit - PS (UPC 658848615926)
• BDS023650, 2015-2020 Ford F150 Front Box Kit (1of2) (UPC 658848615940)
• BDS023651, 2015-2020 Ford F150 Front Box Kit (2of2) (UPC 658848615957)
