2017-2019 Superduty 2.5" Lift Kit with FOX 2.0 Performance Shocks (BDS1543FS)

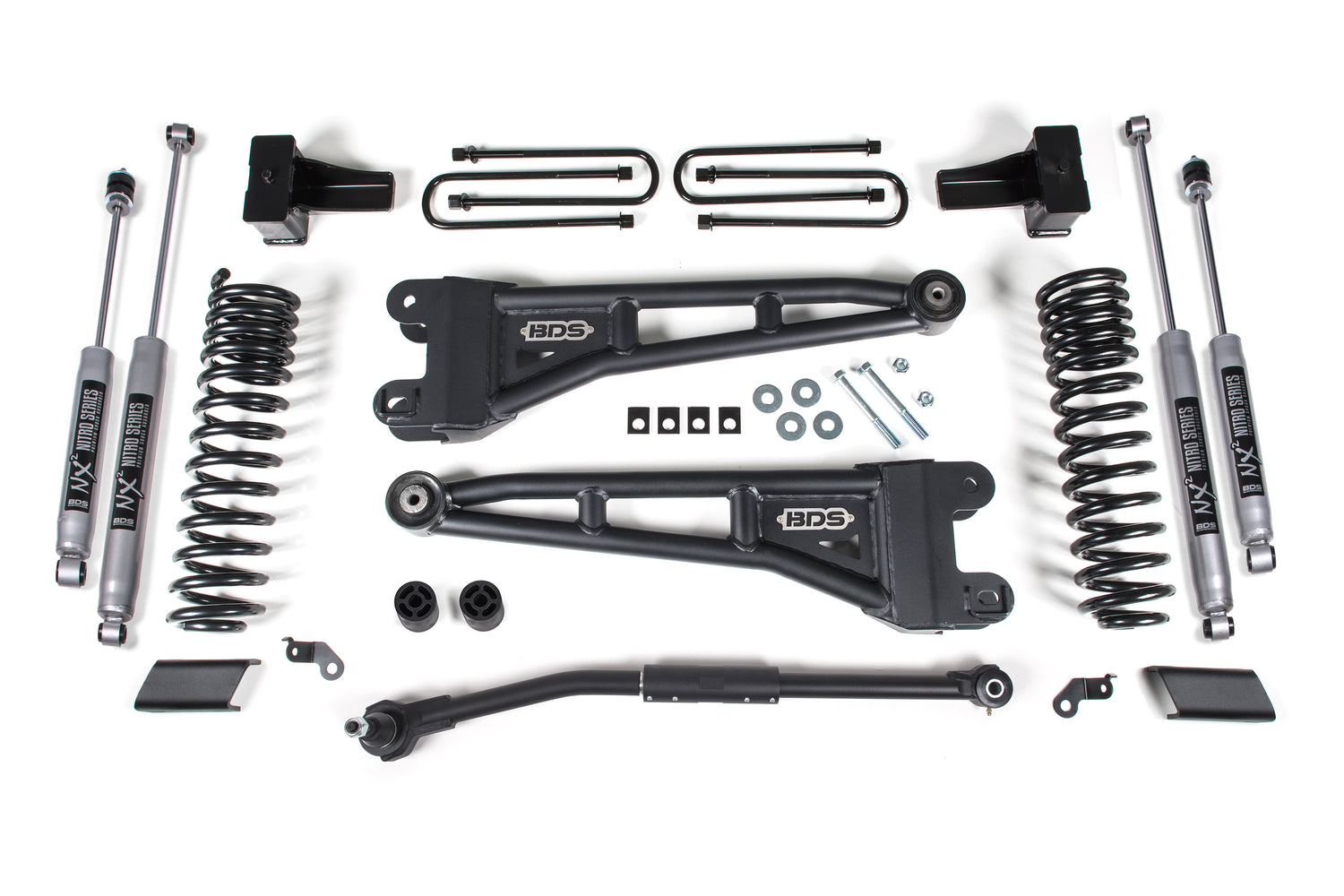

BDS 2.5" radius arm lift kit for Ford F250 and F350 Super Duty diesel trucks, with clearance for up to 35" tires. Up front are diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms that correct caster, a 1-3/8" solid steel adjustable track bar to recenter the front axle, sway bar relocation, brake line brackets, and nitrogen charged shocks. The rear uses a fabricated lift block, longer u-bolts, and NX2 Nitro or FOX Performance shocks.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Adjustable solid steel track bar recenters the front axle
• Fabricated steel blocks provide a level stance front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 2.5 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• Coil springs are designed for diesel trucks. They will work on gas trucks and net roughly 3" of front lift.
• Mounting larger tires on factory wheels is not recommended due to potential brake line clearance issues
• Factory track bar mounting bolt requires 405 ft-lbs of torque; plan ahead to achieve this spec

Includes

• BDS013262, 2017-2023 F250/350 2.5 inch Front Box Kit (UPC 658848613243)
• BDS013407, 2017-2023 F250 4 inch Rear Block Kit (UPC 658848613397)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
• FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
