2017-2019 Superduty 2.5" Lift Kit with NX2 Nitro Shocks (BDS1543H)

Improve the ride and level out your Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Features

• Coil springs are designed for diesel trucks. Will work on gas trucks and will net roughly 3 inch of front lift.
• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 2.5 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• Mounting larger Tires on factory wheels is not recommended due to potential brake line clearance issues.
• Factory track bar mounting bolt requires 405 ft-lbs of torque, plan ahead on how to achieve this torque spec.

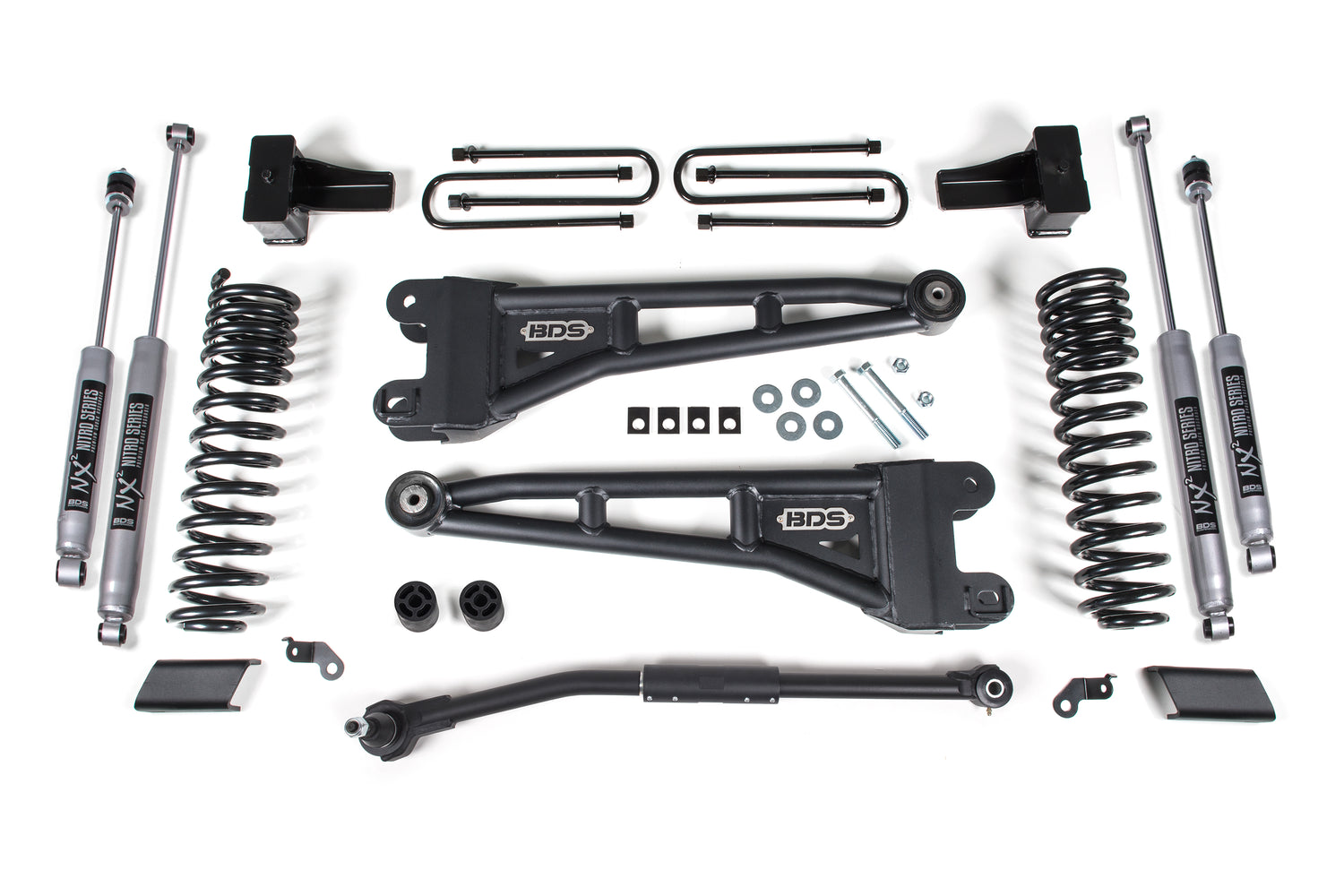

Includes

• BDS013262, 2017-2023 F250/350 2.5 inch Front Box Kit (UPC 658848613243)
• BDS013407, 2017-2023 F250 4 inch Rear Block Kit (UPC 658848613397)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609563)
• BDS85720, Shock- 24.00 x 14.50 x 2-3/8 - S50/EB2 (UPC 711745609587)
