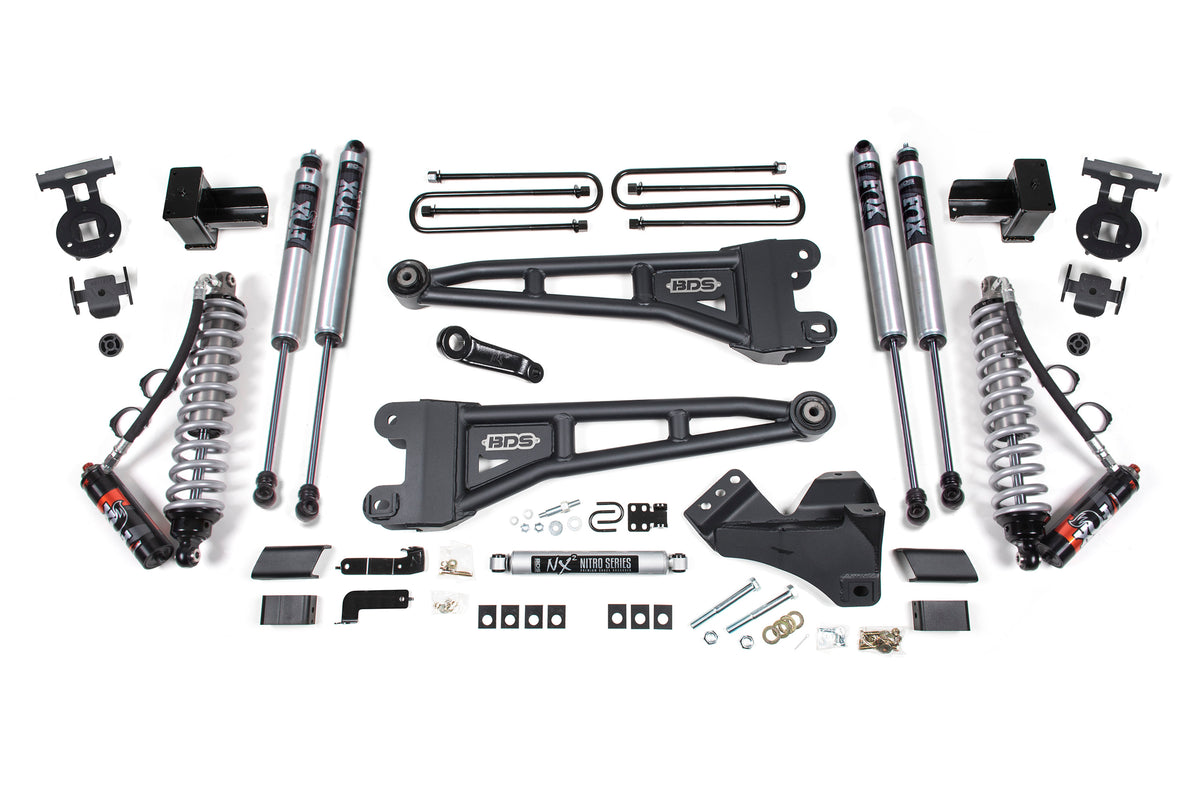

2017-2019 Superduty 4" FOX 2.5 PE Coilover Kit, 5" Block, 2 Leaf Main, FOX 2.0 Rear (BDS1520FPE)

Upgrade your 2017-2019 Ford F250 and F350 Super Duty diesel truck with this BDS 4" radius arm lift kit and FOX 2.5 Performance Elite coil-over conversion, with clearance for up to 37" tires. Up front are diesel-specific FOX 2.5 coil-overs, heavy duty replacement tubular radius arms with caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation and brake line brackets. The rear uses a high-strength fabricated lift block, longer u-bolts, brake line brackets and FOX Performance shocks. The DSC adjuster offers 10 low-speed and 12 high-speed compression levels.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments
• 2" impact extruded aluminum body, IFP monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Notes

• Trimming may be required (37 x 12.5 with 17 x 9, 18 x 9, or 20 x 9 and 5 in. backspace).
• Some F250/350 factory options increase the main leaf pack from 2 to 3 leaves (top overload options only); verify your configuration and order the appropriate option.

Includes

• BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit (UPC 658848613458)
• BDS013517, 2017-2024 F250 5 inch Rear Block Kit - 2 Leaf Main (W/O Overload Springs) (UPC 658848613601)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS123613, 2017-2024 Super Duty Coil-over Mount Kit (UPC 711745604407)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX88406427, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 4 inch Lift, Dual Speed Compression Adjust
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
