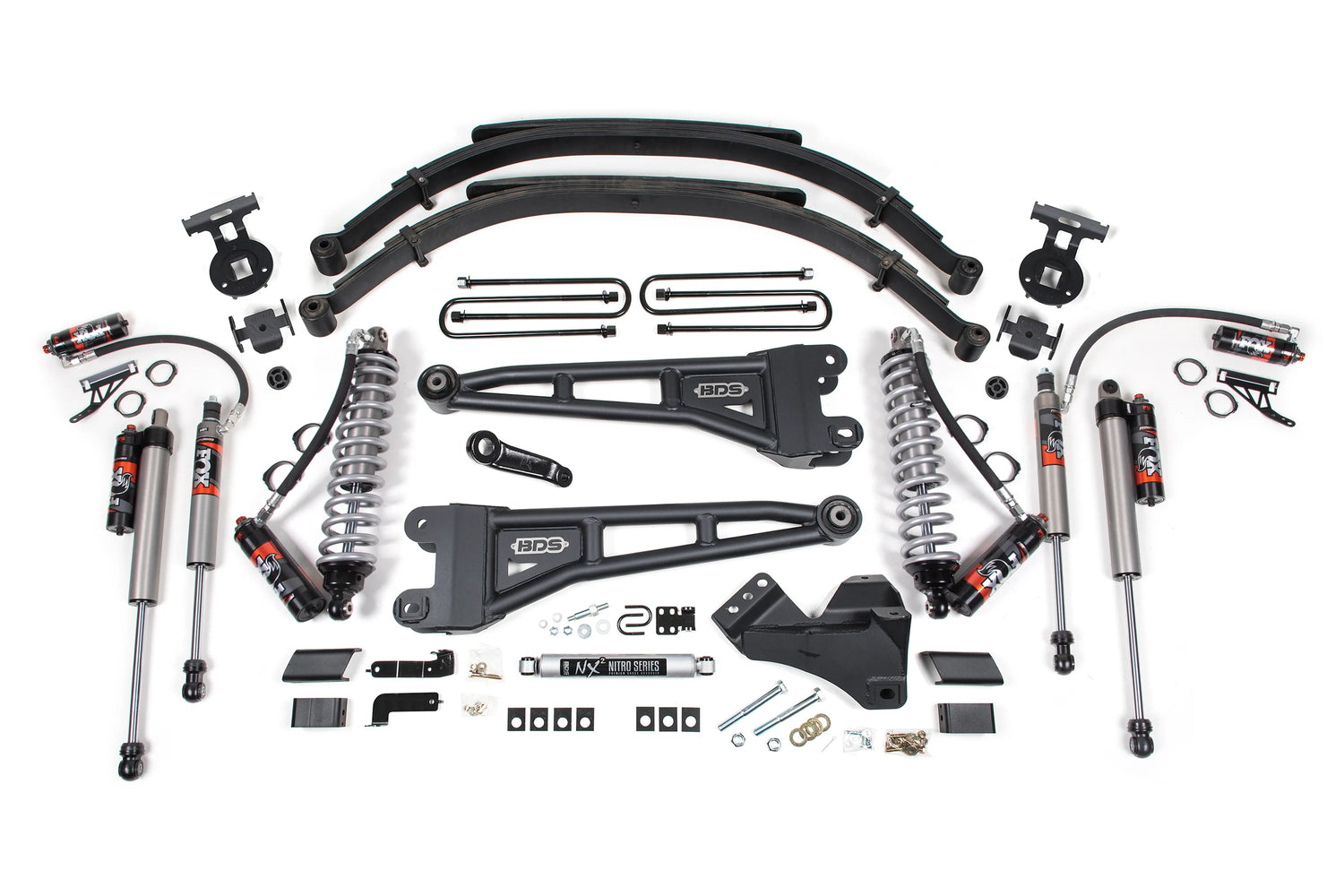

2017-2019 Superduty 4-Link FOX 2.5 PE Coilover Conversion 6" Lift Kit (BDS1977FPE)

Engineered for serious Super Duty owners, the BDS Suspension 6" 4-Link lift system transforms your F-250 or F-350 with FOX 2.5 coil-over technology. This complete suspension package delivers improved ride d3ynamics, enhanced off-road performance, and an aggressive stance while accommodating up to 38" tires. Built on proven 4-link geometry, it combines durability with refined handling for trucks that demand both capability and control.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments


Notes

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• 38 x 13.50 tires may require minor trimming.
• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• If your truck is equipped with a factory rear sway bar add: BDS123808
• The indexing ring has not been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
• Fits SRW models only.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 6
• Rear Lift Method : Leaf Spring
• Rear Lift Height : 6"
• Shocks Included : Yes
• Lift Height : 6-7.5"

Tire Fitment

• 38 x 13.5 with 17 x 9 and 5 in. Backspace
• 38 x 13.5 with 17 x 10 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace
