2017-2019 Superduty 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1527FPE)

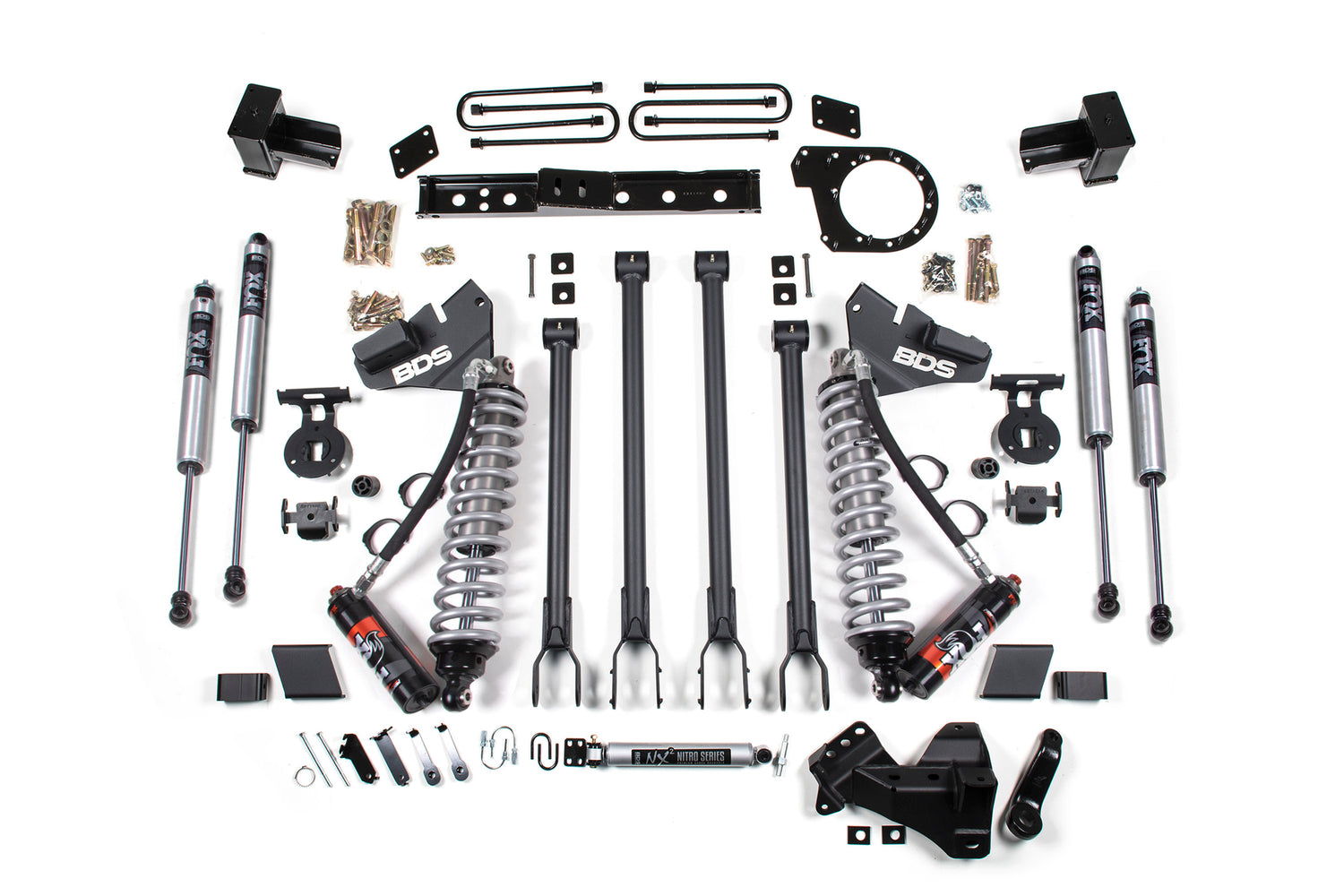

BDS 6" 4-link lift kit with FOX 2.5 Performance Elite coil-over conversion for 2017-2019 Ford F250 and F350 Super Duty diesel trucks, with clearance for up to 38" tires. Up front are FOX 2.5 coil-overs and mounting brackets, a 4-link control arm conversion, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. At this height the transfer case is indexed for use of the factory front driveshaft, so an ARP-stud indexing ring and a high-clearance transmission crossmember are supplied. The rear uses a fabricated lift block, longer u-bolts, brake line brackets, and FOX Performance shocks.

The FOX 2.5 Performance Elite shocks come tuned and ready to bolt on, with a remote reservoir to keep fluid cool and a DSC adjuster offering 10 low-speed and 12 high-speed compression settings.

Features

• FOX 2.5 coil-over mounts in factory coil bucket location
• Adds a secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-link control arms improve handling, stability, strength, and caster control through wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Fabricated steel blocks provide a level stance front to rear
• FOX shocks are fully serviceable and corrosion resistant

Notes

• Trimming may be required
• Some F250/350 models increase the main leaf pack from 2 to 3 leaves (top overload options only). Verify your factory configuration and choose the correct option.
• 38x13.5 with 17x9 and 5" backspace
• 38x13.5 with 17x10 and 5" backspace
• 38x13.5 with 20x10 and 5" backspace

Includes

• BDS013219, 2017-2019 Ford Super Duty - Add-A-Leaf Kit (UPC 658848613168)
• BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2 (UPC 658848613700)
• BDS013604, 2017-2022 Ford F-250 / F-350 6 inch 4-Link Box Kit 2of2 (UPC 658848613731)
• BDS013607, 2017-2019 Super Duty Rear 6 inch Block Kit (UPC 658848613755)
• BDS123605, 2017-2022 SD T-Case Indexing Kit- DSL (UPC 711745604377)
• BDS123613, 2017-2024 Super Duty Coil-over Mount Kit (UPC 711745604407)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
