2017-2019 Superduty 4" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1578FS)

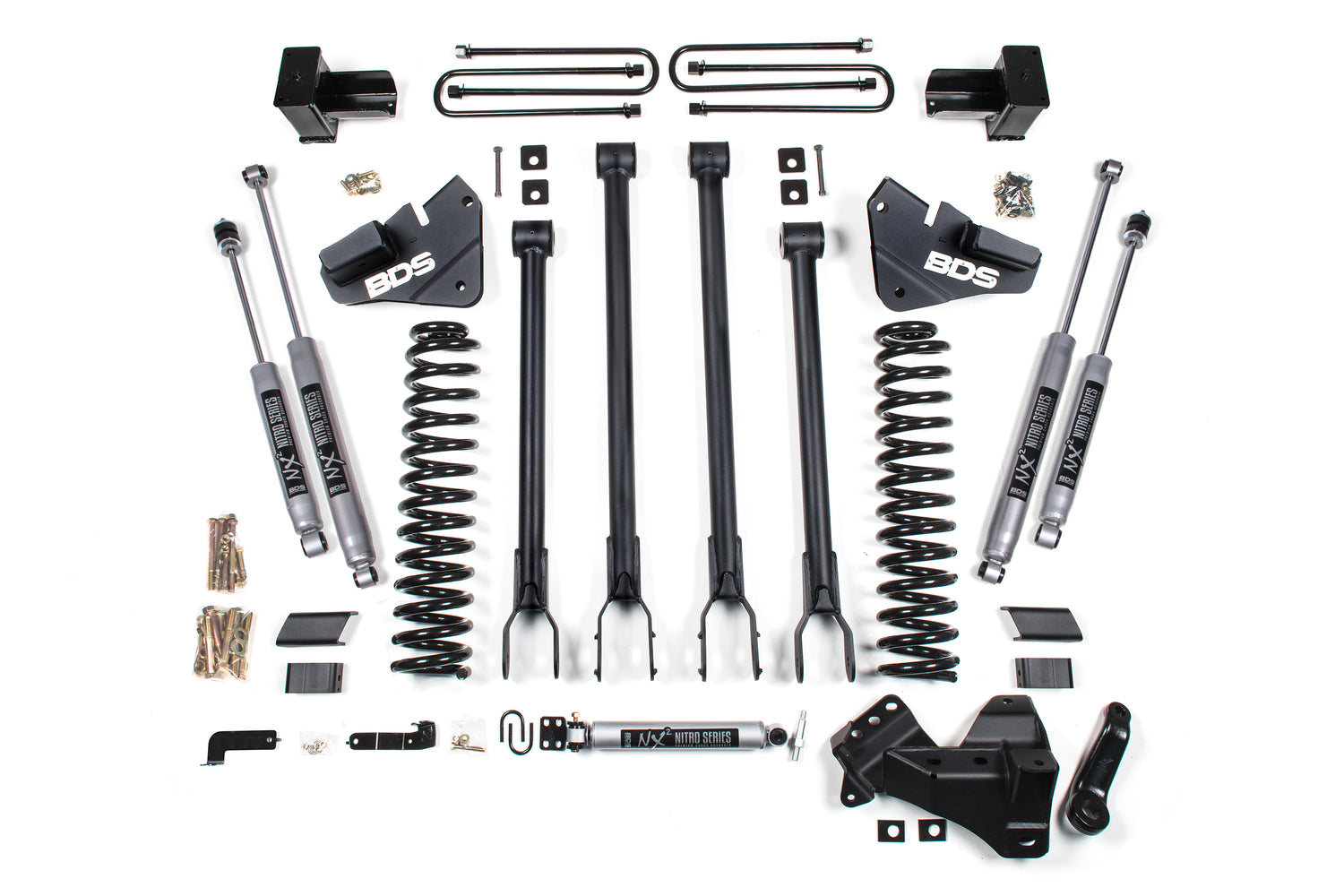

Upgrade your 2017-2019 Ford F350 DRW Super Duty gas truck with this BDS 4" lift kit and 4-link conversion, clearing up to 37" tires. Up front it includes gas-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and nitrogen charged shocks. The rear uses a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. The 4-link conversion replaces the factory stamped steel radius arms to optimize suspension geometry, add strength and limit caster change through wheel travel.

Features

• Pro-Ride dual rate coil springs for a smooth ride on any terrain
• Heavy duty 4-link control arms improve handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and drop pitman arm maintain proper steering angles
• Fabricated steel rear block for a level front-to-rear stance
• Standard NX2 Nitro shocks with vehicle-specific valving
• Optional FOX 2.0 Performance Series shocks for maximum on and off-road performance
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston with application-specific valving
• Clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 405 ft-lbs.

Includes

• BDS013423, 2017-2022 Ford F-250 / F-350 4 Inch 4-Link Box Kit 2of2 (UPC 658848613496)
• BDS013526, 2017-2020 F350 Dually 5 inch Block Kit (UPC 658848613632)
• BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2 (UPC 658848613700)
• BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit (UPC 658848616534)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
