2017-2019 Superduty 4" 4-Link Conversion Kit with FOX 2.5 Performance Elite Shocks (BDS1577FPE)

Maximize the capability of your 2017-2019 Ford F350 Dually (DRW) Super Duty diesel powered truck with this 4-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37 inch tires.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments
• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed

Shock Features

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

4-Link Features

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch
• Shocks Included: Yes

Notes

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
• 37 x 12.50 tires may require minor trimming.
• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• If your truck is equipped with a factory rear sway bar add: 123005.

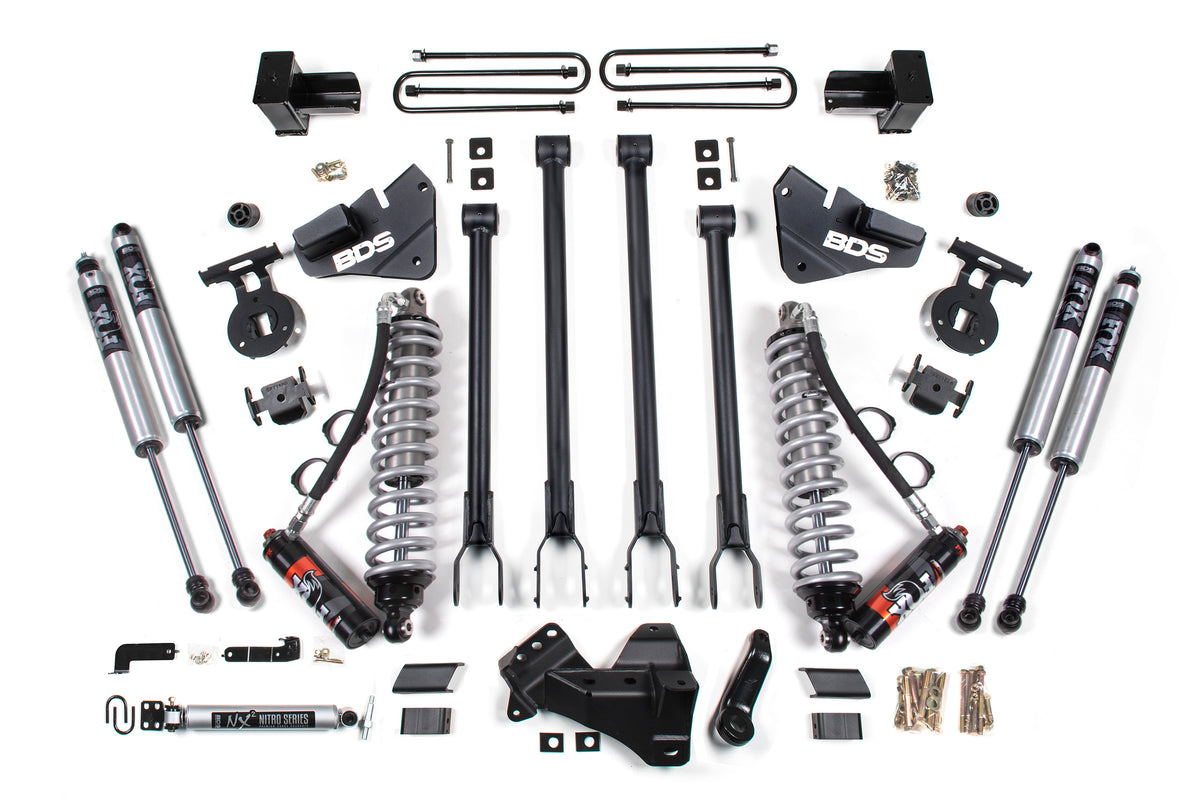

Includes

• BDS013423 - 2017-2022 Ford F-250 / F-350 4 Inch 4-Link Box Kit 2of2 (UPC 658848613496)
• BDS013526 - 2017-2020 F350 Dually 5 inch Block Kit (UPC 658848613632)
• BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2 (UPC 658848613700)
• BDS123613 - 2017-2024 Super Duty Coil-over Mount Kit (UPC 711745604407)
• BDS85431 - 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX88406427 - Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 4 inch Lift, Dual Speed Compression Adjust
• FOX98224700 - Fox 2.0 Shock 25.65 x 16.05 x 2, S50/EB1, Qty 2
• FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2, EB1/EB1, Qty 2

Manufacturer Description

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
