2017-2019 Perf Trans Cooler 6.6L Allison 1000 (124065000)

Description

Excessive heat prematurely damages the transmission. PPE Performance Bar and Plate Transmission Cooler give you the Proper cooling of your transmission fluid that you need to extend your transmission lifespan.

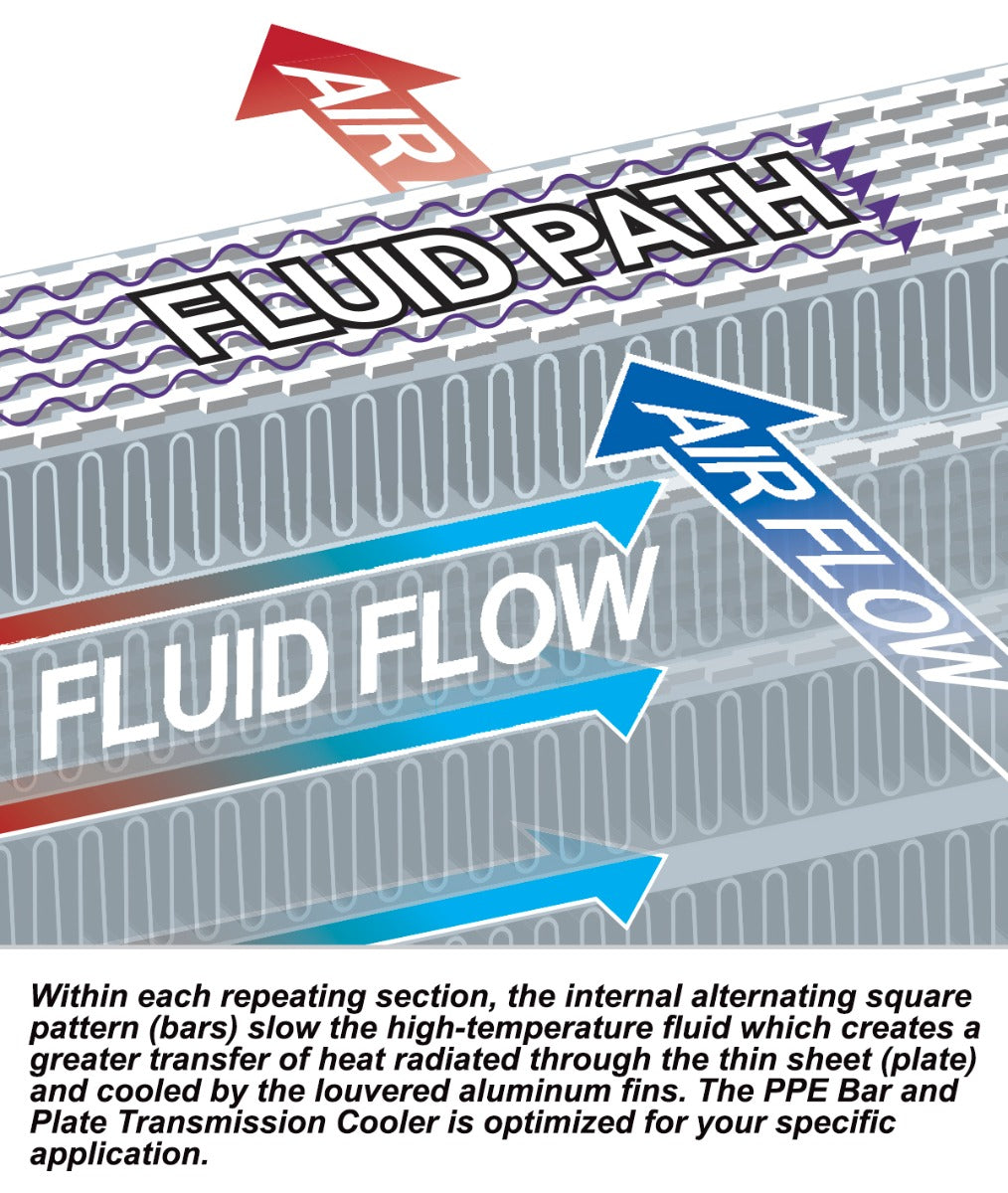

Bar and plate style cooler is far superior to the OEM-style tube and fin cooler in terms of cooling performance. Within each repeating section, the internal staggered square-pattern fins divert the high-temperature transmission fluid and increase the heat-transferring surface area. The external louvered fins maximize the cooling effect of ambient air.

When the mainline pressure is increased with upgrades such as a high-performance transmission kit, your transmission generates additional heat. A PPE Performance Transmission Cooler is critical in such situations.

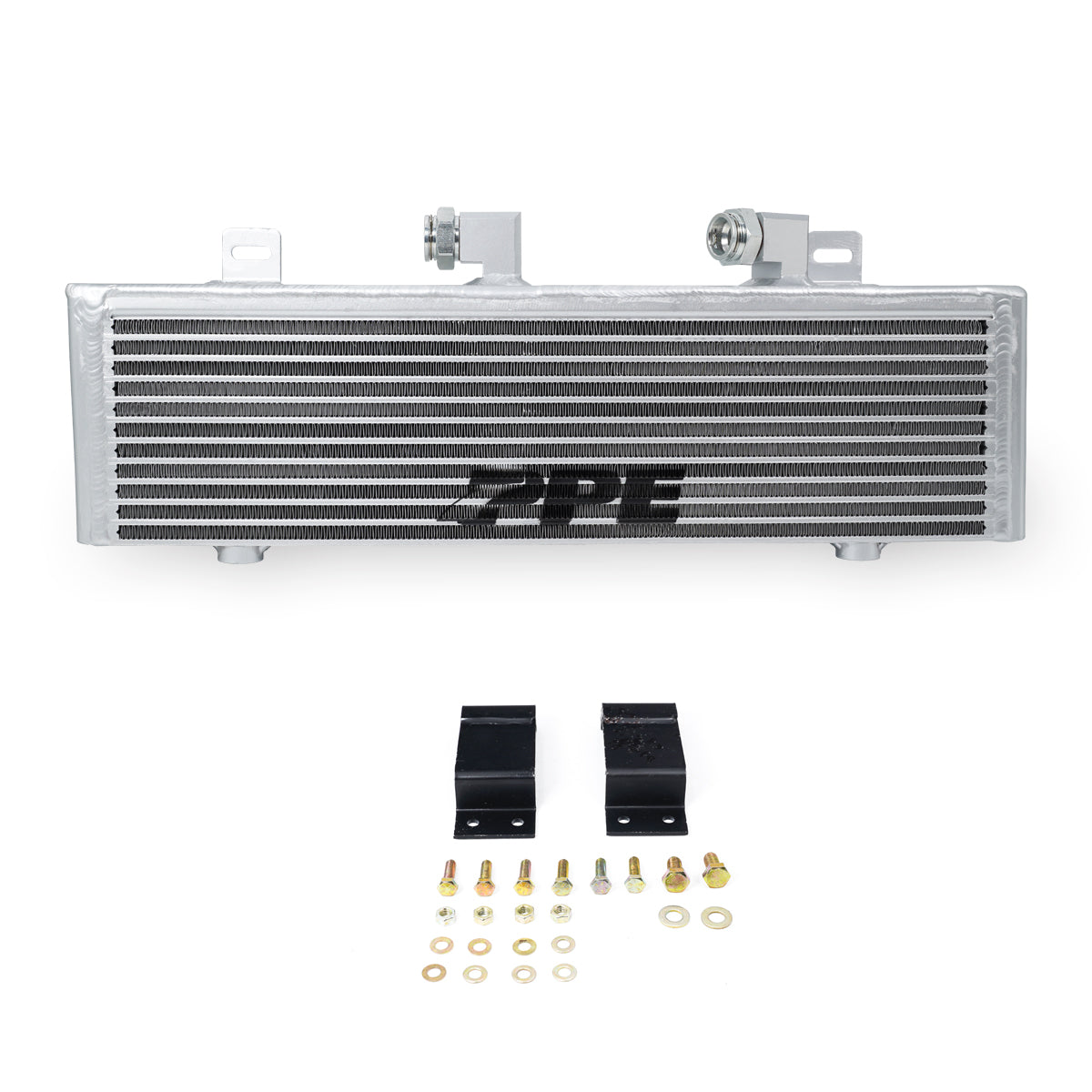

PPE's Transmission Cooler Kit features a simple bolt-on installation and is covered by our limited lifetime warranty.

Features

• Massive 211 cubic-inch core volume, a 105% increase over the stock cooler for better heat dissipation
• 20% larger frontal area for increased airflow exposure and maximized heat transfer
• All-aluminum bar and plate construction for improved cooling capacity and pressure resistance
• Fully TIG-welded end tanks enhance strength and durability
• Delivers up to 40°F temperature drop, protecting against overheating and burnt clutches
• Includes new 7/8-14 quick-connect fittings that work with factory transmission cooler lines

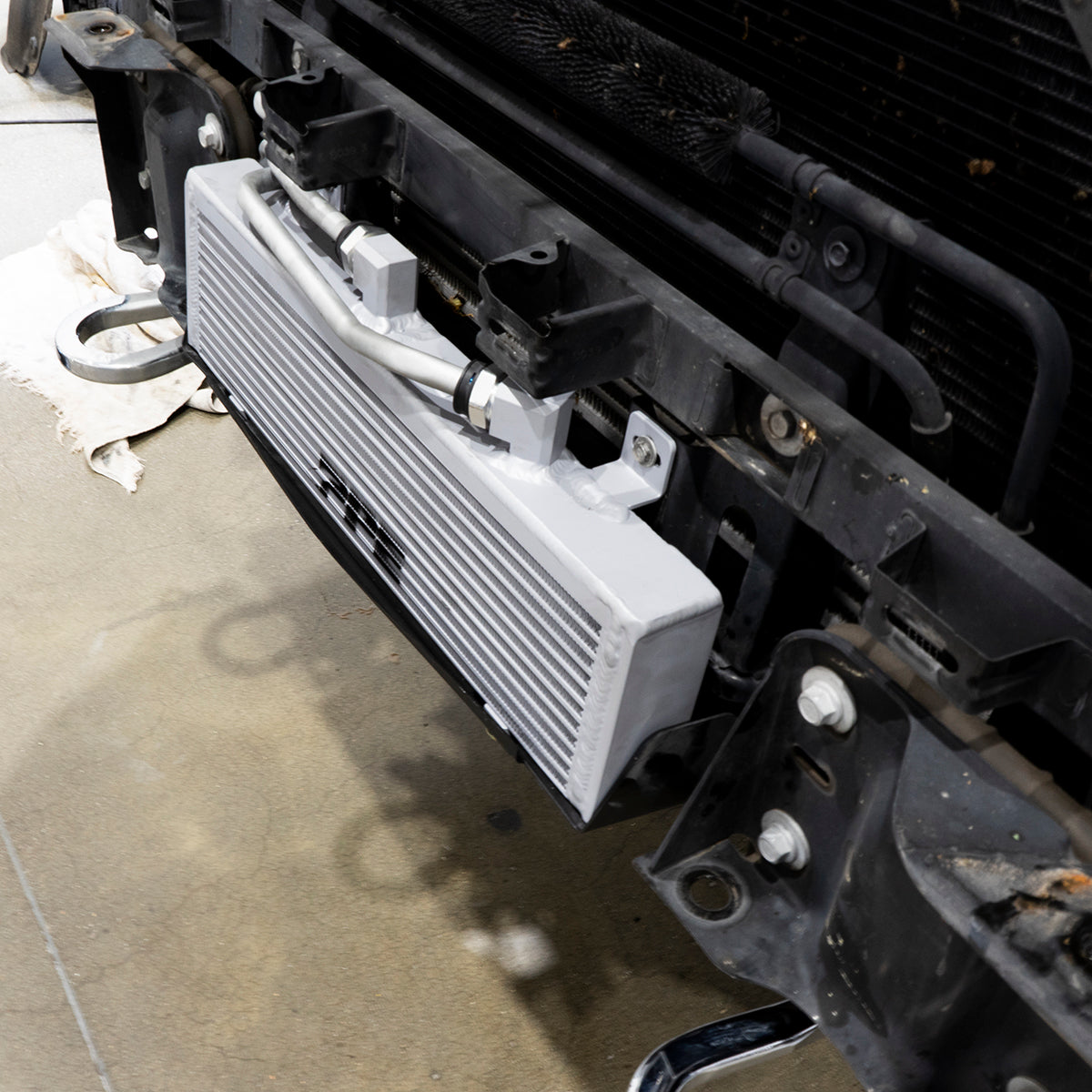

• Retains all factory mounting points for a bolt-on installation

Notes

Note: add PPE Thermostat Bypass Valve (SKU 1250650XX) for maximized cooling performance.
