2017-2019 Superduty 8" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1541FS)

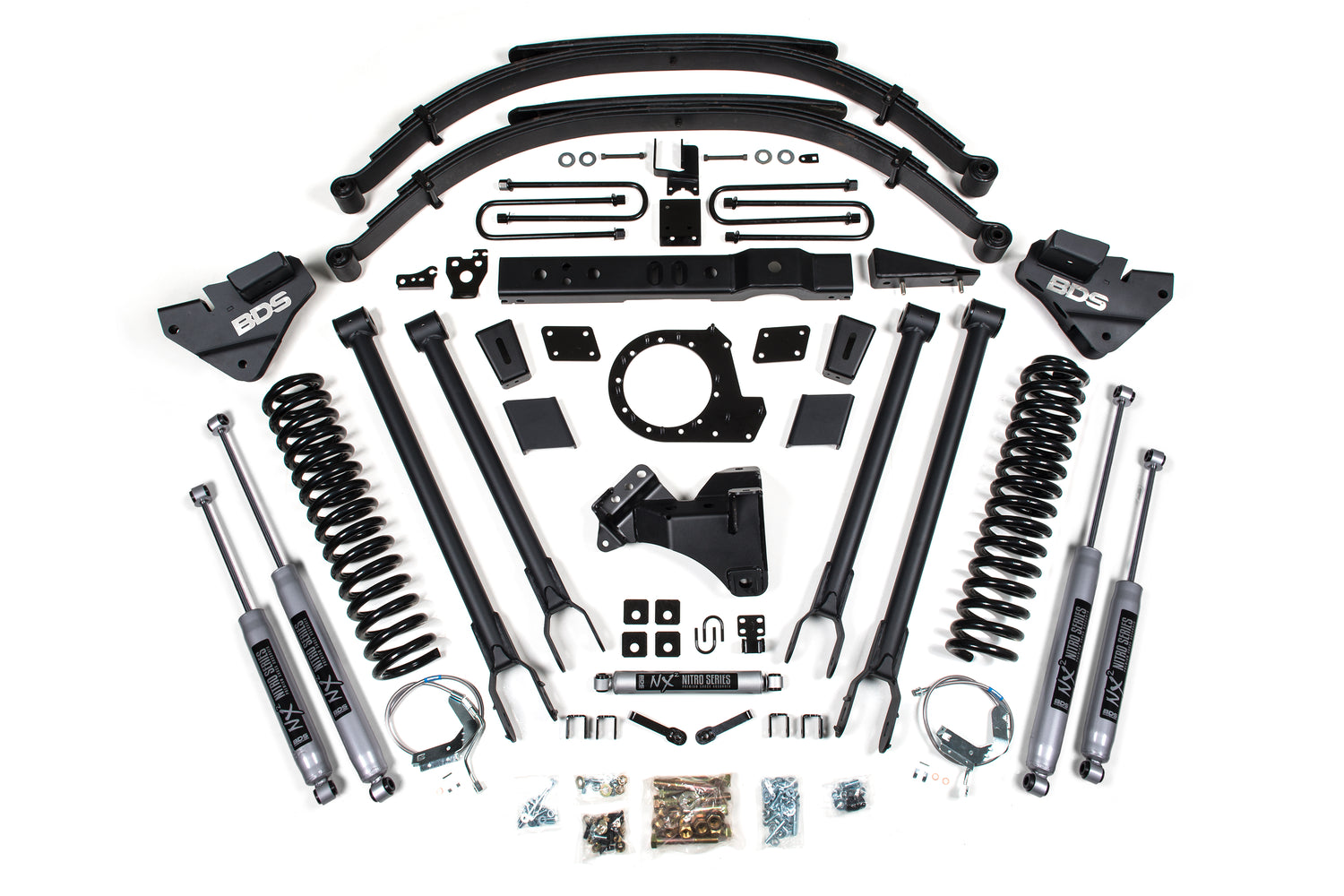

BDS 8" 4-link lift kit for 2017-2019 Ford F250 and F350 Super Duty diesel trucks, with clearance for up to 40" tires. Up front are diesel-specific Pro-Ride coil springs, a 4-link control arm conversion, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and nitrogen charged shocks. At this height the transfer case is indexed for use of the factory front driveshaft, so an ARP-stud indexing ring and a high-clearance transmission crossmember are supplied. The rear uses full replacement Glide-Ride leaf springs, u-bolts, brake line brackets, and NX2 Nitro or FOX Performance shocks.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty 4-link control arms improve handling, stability, strength, and caster control through wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Glide-Ride leaf springs provide full lift height and added capacity with a built-in overload spring
• Standard NX2 Nitro shocks with vehicle-specific valving
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 40x13.5
• Wheel Diameter: 17x10
• Back Spacing: 5

Notes

• The transfer case indexing ring is for diesel models only and will not fit gas models with the 6R100 transmission
• If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
• 40x13.50 tires WILL require trimming
• If equipped with a factory rear sway bar, add BDS123009
• The indexing ring is not designed for manual shift transfer case models; modification of the shift cable mount is required

Includes

• BDS003839, 2017 F250/F350 8 inch Rear Leaf Spring (UPC 658848611447)
• BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2 (UPC 658848613700)
• BDS013801, 2017 Super Duty 8 inch Front Box Kit (UPC 658848613830)
• BDS013809, 2017 Super Duty 8 inch Rear Box Kit (UPC 658848613847)
• BDS033811, 05 Ford F250 SD Diesel 8in Coil Kit (UPC 658848616602)
• BDS123615, 2017 Super Duty T-Case Index - 8in Diesel (UPC 711745604421)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX98224721, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1
• FOX98224779, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
