2017-2019 Superduty 8" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1541H)

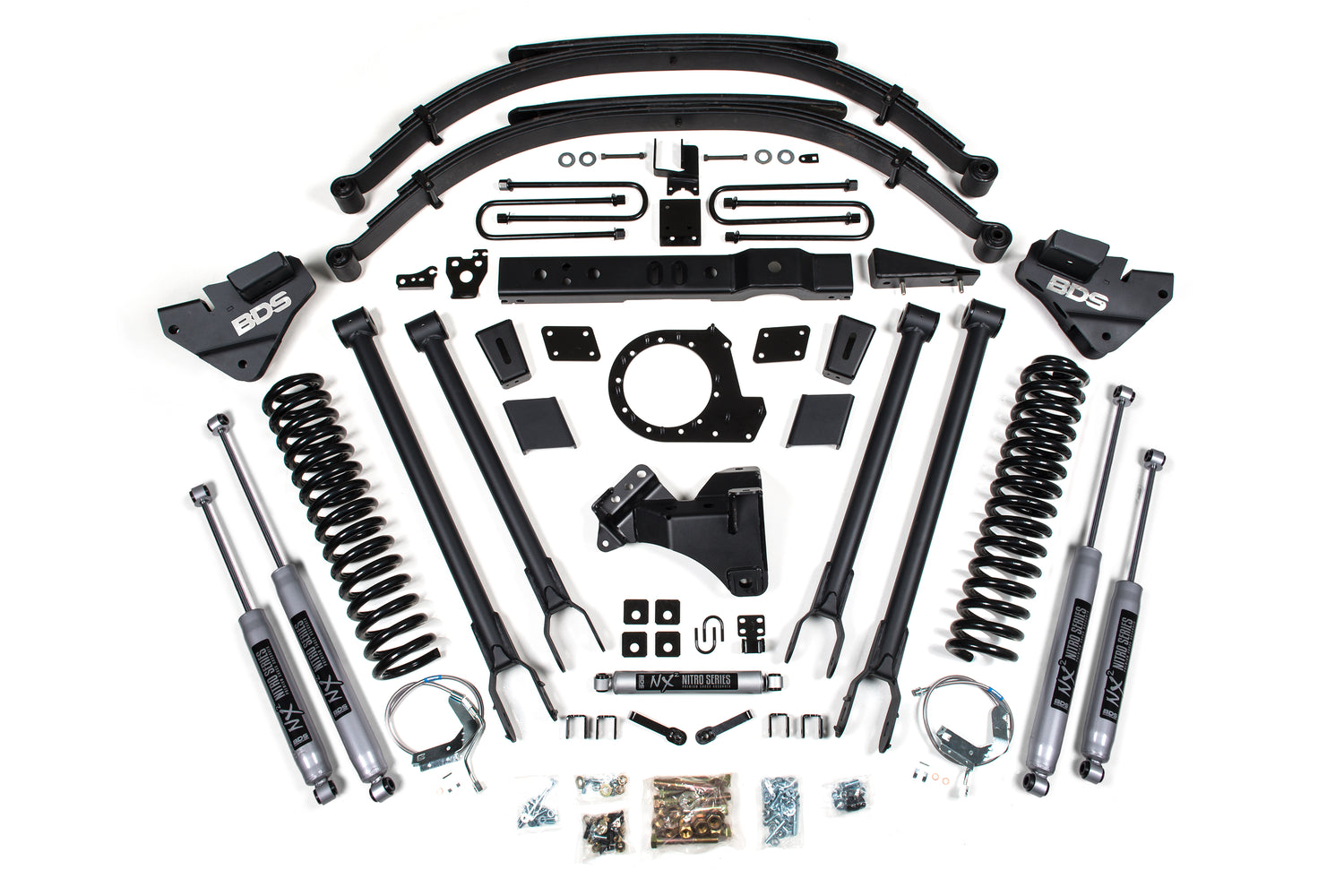

Up the ante of your 2017-2019 Ford F250 and F350 Super Duty diesel truck to the next level with this 8-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40 inch Tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement BDS Glideride leaf springs, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Features

• The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission.
• If your truck is equipped with a factory rear sway bar add BDS123009
• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 40x13.5
• Wheel Diameter: 17x10
• Back Spacing: 5

Notes

• If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
• 40x13.50 Tires WILL require trimming.
• The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.

Includes

• BDS003839, 2017 F250/F350 8 inch Rear Leaf Spring (UPC 658848611447)
• BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2 (UPC 658848613700)
• BDS013801, 2017 Super Duty 8 inch Front Box Kit (UPC 658848613830)
• BDS013809, 2017 Super Duty 8 inch Rear Box Kit (UPC 658848613847)
• BDS033811, 05 Ford F250 SD Diesel 8in Coil Kit (UPC 658848616602)
• BDS123615, 2017 Super Duty T-Case Index - 8in Diesel (UPC 711745604421)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• BDS85721, Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1 (UPC 711745609594)
• BDS85779, Shock- 35.50 x 20.40 x 2-3/8 - EB1/EB1 (UPC 711745609778)
