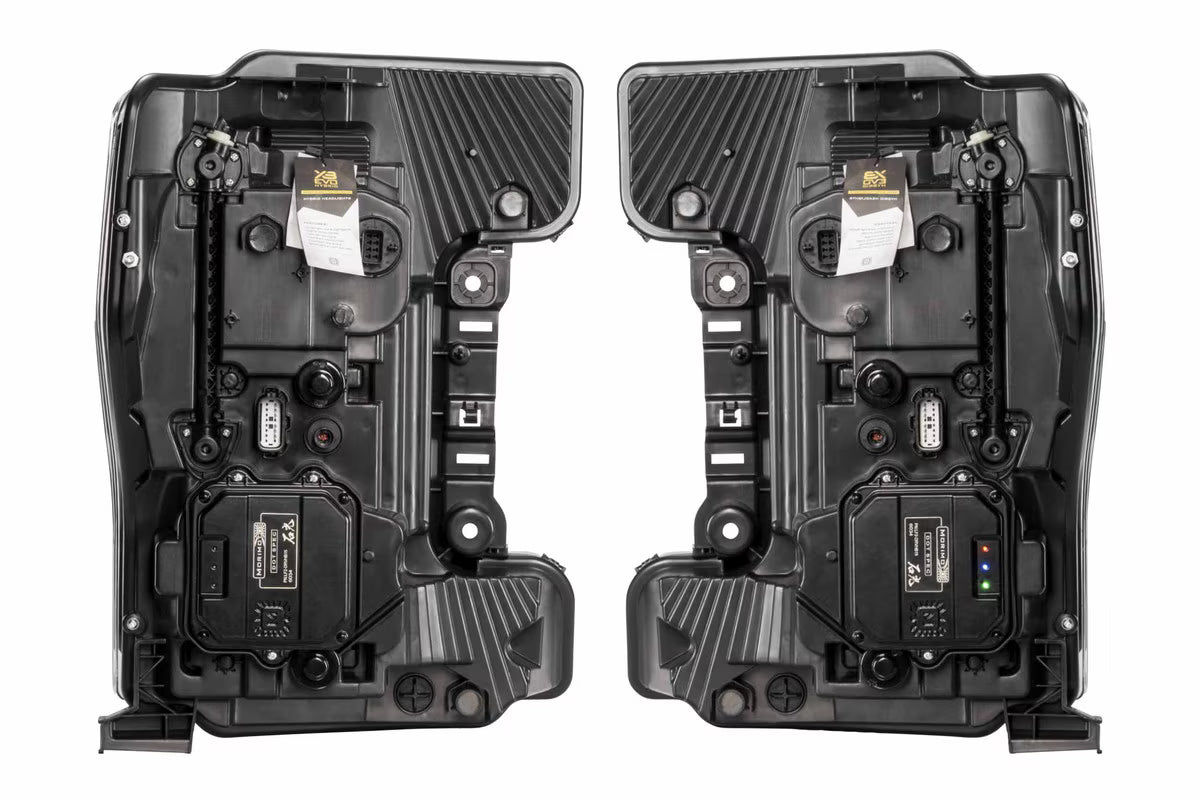

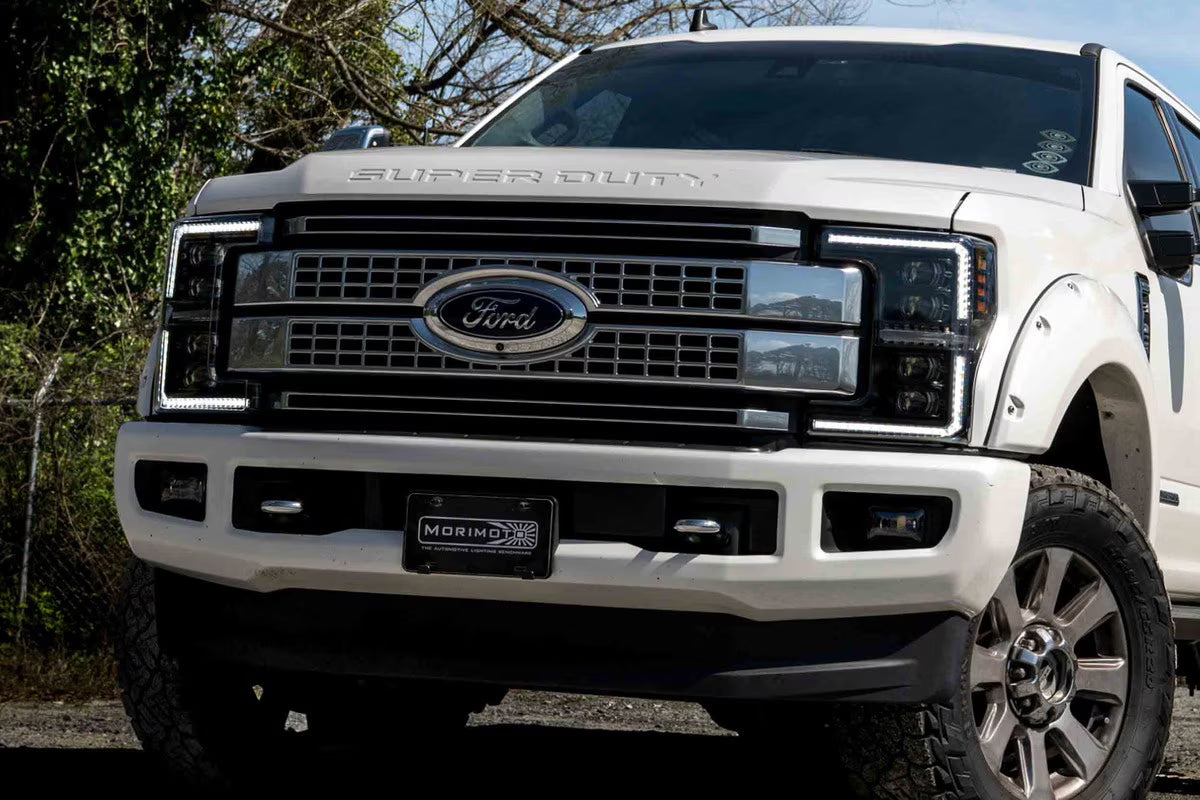

2017-2019 Superduty XB Evo Hybrid LED Headlights (LF2-503Y)

Description

The all-new XB Evo Hybrid headlights are a showcase of everything Morimoto is made of at a price that everybody can afford. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling

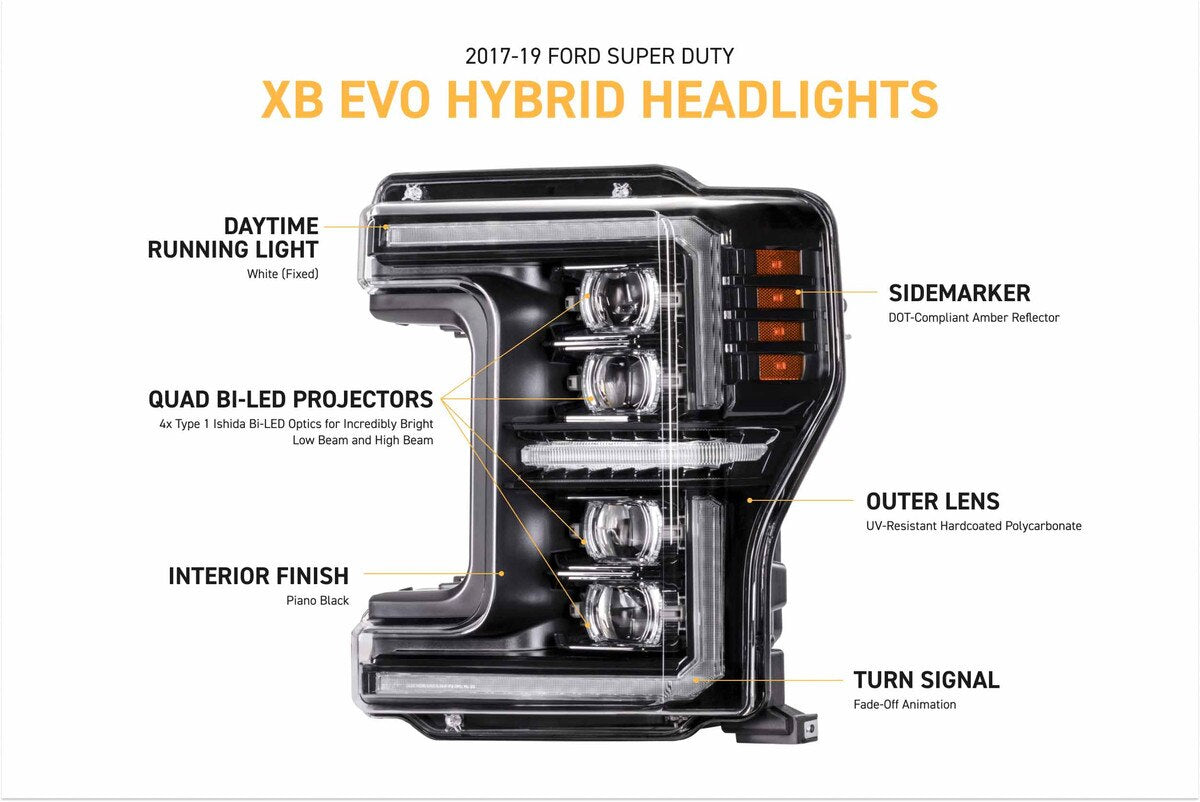

Features

• XB Evo Hybrid: Compared to the top-of-the-line XB Evo headlights, the Hybrid model drops the lens heaters, the mode selectors, and the welcome sequence to meet a lower price point.
• All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing quad Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform.
• On and Off Road: DOT Compliant for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30%, making them the brightest option for SD owners who want to maximize output for off-road use.

Specs

• Traffic Pattern: LHD / Right Hand Traffic Only (US/CA Standard)
• Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)
• Output (Supercharged Drivers): Off-Road use only
• Main Optics: 4x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
• Functions: Low, High, Park, Turn, and DRL
• Turn Signal Modes: Fade-Off Only
• DRL Colors: White Only
• Internal Finish: Piano Black
• Side marker: Amber side reflex reflector (DOT compliant)
• Lens Details: Polycarbonate with proprietary anti-UV hard coating

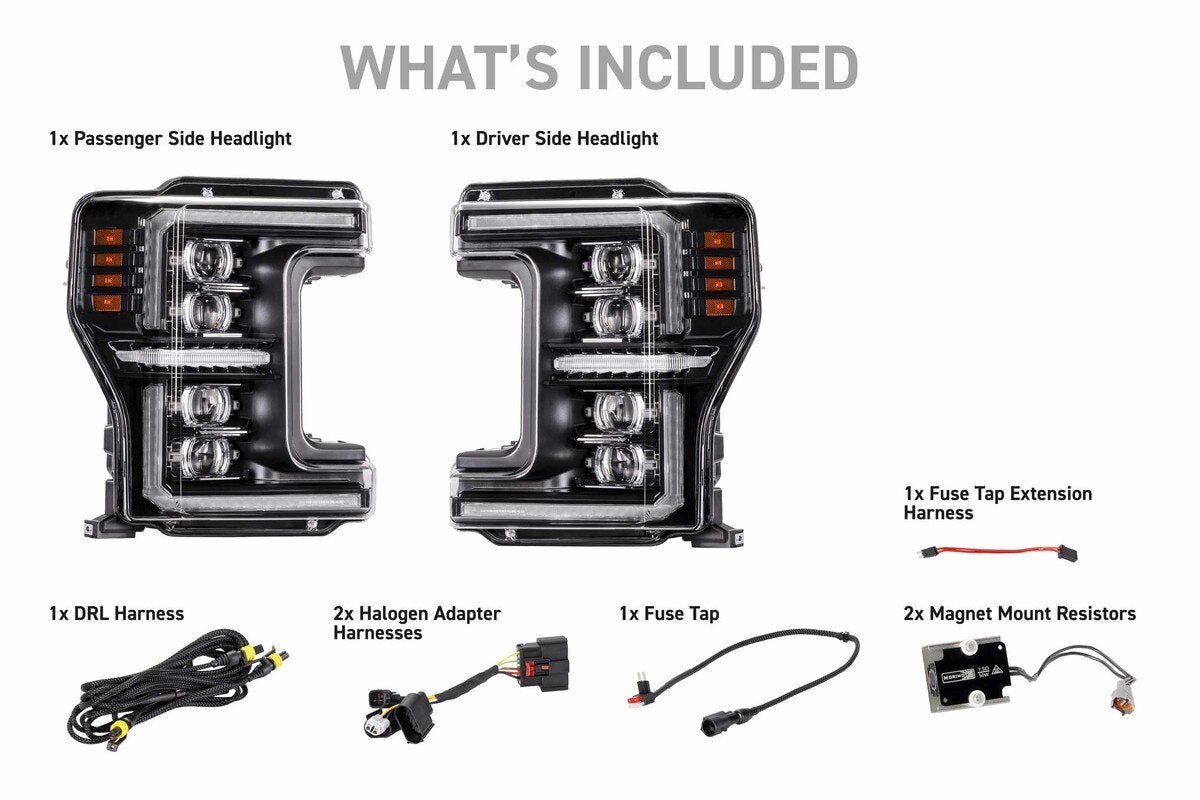

Includes

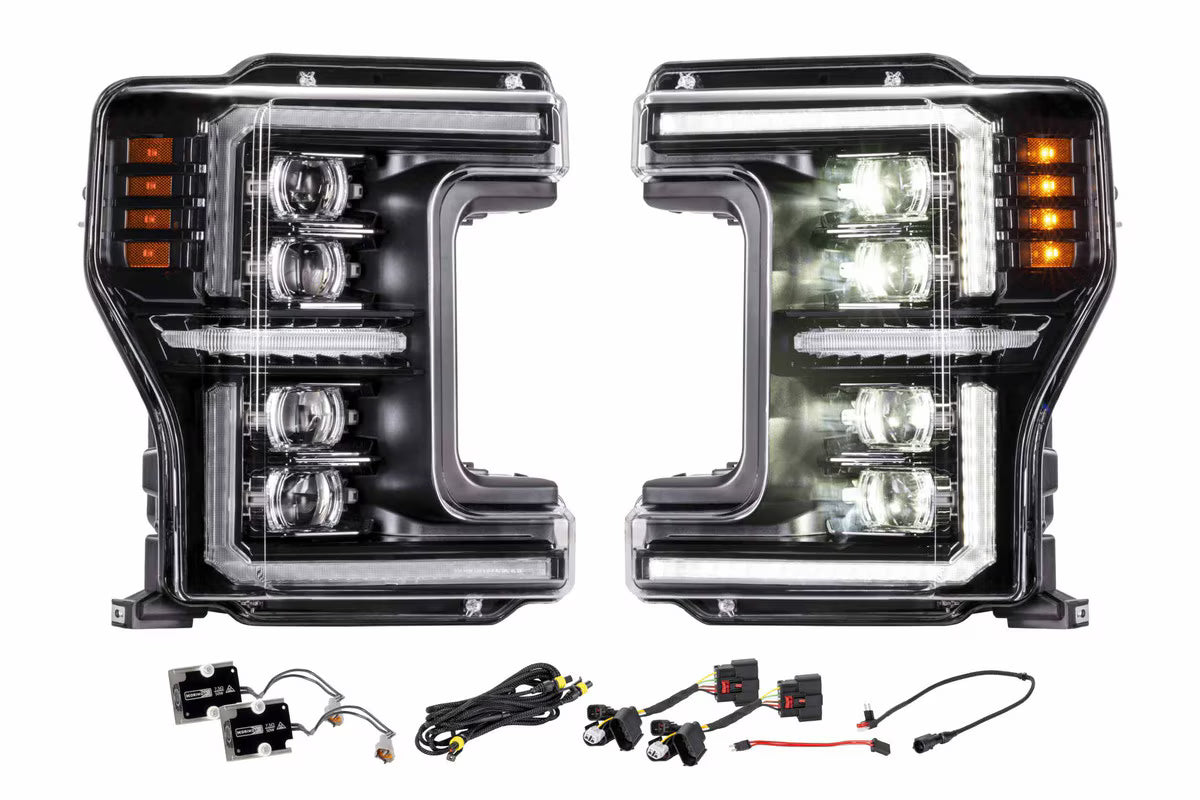

• Headlights: One Pair (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)
• Accessories: 2x Halogen Adapter Harnesses, 2x Magnet Mount Resistors, 1x Fuse Tap, 1x Fuse Tap Extension Harness, 1x DRL Harness

Notes

• Supercharged Drivers available HERE!
• 2017 model year F-550 were offered in old/new styles. These lights are only compatible with the later style.
• These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

Replaces OE Part: HC3Z13008D, HC3Z13008A, HC3Z13008P, HC3Z13008N, KC3Z13008G, KC3Z13008F, KC3Z13008A, KC3Z13008B
