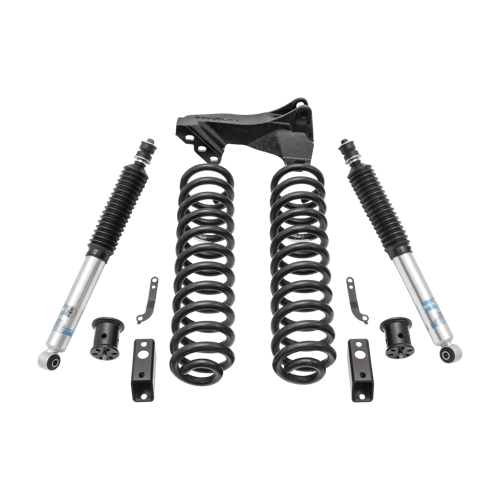

2017-2019 Superduty 2.5 Coil Spring Front Lift Kit w/ Bilstein Front Shocks and Front Track Bar Bracket (46-2723)

The ReadyLIFT 2.5-inch Leveling Kit for 2017-2022 Ford Super Duty Diesel trucks provides the perfect amount of front-end lift to eliminate the factory rake. By replacing the stock front springs with diesel-specific linear-rate coils, this kit ensures your truck handles heavy loads and daily driving with a "better-than-factory" feel. The system is designed as a complete bolt-on upgrade, maintaining critical suspension geometry and allowing for the installation of larger 35-inch off-road tires without sacrificing the truck's heavy-duty towing capabilities.

Features

• Provides 2.5 inches of front lift to level the vehicle with the rear.
• Includes two (2) linear-rate front coil springs specifically tuned for the Power Stroke diesel engine.
• Equipped with heavy-duty track bar relocation brackets to maintain proper axle alignment.
• Includes sound-damping coil spring spacers to ensure quiet, factory-like operation.
• Comes with radius arm drop brackets to correct caster and preserve steering feel.
• Features bump stop extensions to prevent suspension over-travel during heavy use.
• Utilizes sway bar drop brackets to maintain proper sway bar geometry and function.

Notes

• Vehicle alignment and headlamp aim should be adjusted following installation for safety and performance.
• Installation by a certified mechanic is recommended for professional-grade results.
• The use of shock extensions or longer aftermarket shocks is required (extensions are included in some sub-configurations).

Compatibility Notes

• Fits 2017–2022 Ford F250 and F350 Super Duty 4WD trucks with the 6.7L Diesel engine.
• Specifically designed for Single Rear Wheel (SRW) models.
• Not compatible with 6.2L or 7.3L gasoline engines due to differing spring rates.
• Not compatible with 2WD models or trucks equipped with the Tremor off-road package.

Tire Fitment

• Recommended Maximum Tire Size: 35x12.50.
• Recommended Wheel: 9-inch wide wheel with +12 to +18 offset for a rub-free fitment.
• Stock wheels can be reused with tires up to 12.50 inches wide with minor inner liner trimming.

Specs

• Front Lift Height: 2.5 inches.
• Spring Type: Linear-rate diesel coil springs.
• Kit Contents: Two (2) Front Coil Springs, Track Bar Bracket, Radius Arm Drops, Sway Bar Drops, and Bump Stop Extensions.
