2017-2019 Superduty 2.5 Front Coil Spring Lift Kit Falcon 1.1 Monotube Front Rear Shocks Front Track Bar Bracket (46-27240)

The ReadyLIFT 2.5-inch Coil Spring Lift Kit for 2017-2019 Ford Super Duty Diesel trucks is a comprehensive suspension system designed to eliminate the factory rake and improve overall handling. Featuring diesel-specific linear-rate springs and a full set of Falcon 1.1 monotube shocks, this kit provides a "better-than-factory" ride with increased suspension travel. The system includes critical geometry correction components, such as a track bar relocation bracket and radius arm drops, to ensure your truck maintains its factory steering feel and alignment even at the new height.

Features

• Provides 2.5 inches of front lift to level the truck and allow for larger tires.
• Includes two (2) front linear-rate coil springs specifically tuned for the 6.7L Power Stroke diesel.
• Comes with four (4) Falcon 1.1 Monotube Shocks for superior damping and roll control.
• Equipped with a heavy-duty track bar relocation bracket to keep the front axle centered.
• Includes radius arm drop brackets to correct caster and preserve factory steering geometry.
• Features sway bar drop brackets and bump stop extensions for unobstructed suspension travel.
• Sound-damping coil spring spacers ensure quiet operation and maintain factory comfort.

Notes

• Vehicle alignment and headlamp aim should be checked and adjusted after installation.
• Designed for a straightforward bolt-on installation with no permanent modifications required.
• Professional installation by a certified mechanic is recommended for safety.

Compatibility Notes

• Fits 2017–2019 Ford F250 and F350 Super Duty 4WD trucks with the 6.7L Diesel engine.
• Compatible with Single Rear Wheel (SRW) models.
• Not compatible with 6.2L gasoline engines or 2WD models.
• Not compatible with Tremor off-road package trucks.

Tire Fitment

• Recommended Maximum Tire Size: 35x12.50.
• Recommended Wheel: 9-inch wide wheel with +12 to +18 offset for a rub-free fitment.
• Stock wheels can be reused with tires up to 12.50 inches wide with minor inner fender liner trimming.

Shock Specs

• Shock Type: Falcon 1.1 Monotube Performance Dampers.
• Construction: 2.125-inch 6061-T6 aluminum alloy shock bodies for high impact resistance and heat dissipation.
• Technology: Features a 3/4-inch induction hardened chrome plated shaft and Volume Optimized Damping (VOD) for controlled performance.
• Fluid: Red Line high VI shock oil ensures consistent damping from -50°F to 450°F.

Specs

• Front Lift Height: 2.5 inches.
• Spring Type: Diesel-specific linear-rate coil springs.

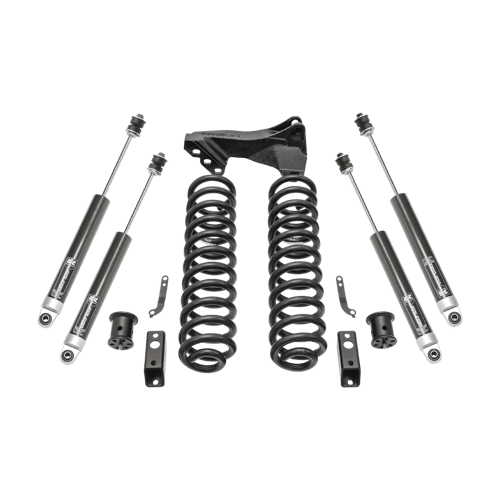

• Kit Contents: Two (2) Front Coil Springs, Four (4) Falcon 1.1 Shocks, Track Bar Relocation Bracket, Radius Arm Drops, Sway Bar Drops, and Bump Stop Extensions.
