2017-2019 Superduty Front and Rear Lift Kit (ICOK64514R)

Level up your 2017-2019 Superduty with this complete ICON suspension system. 4.5" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Fits 2017-2019 F250 / F350 4WD applications
• ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
• Shocks are fully rebuildable and revalvable
• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Approximately 50% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain

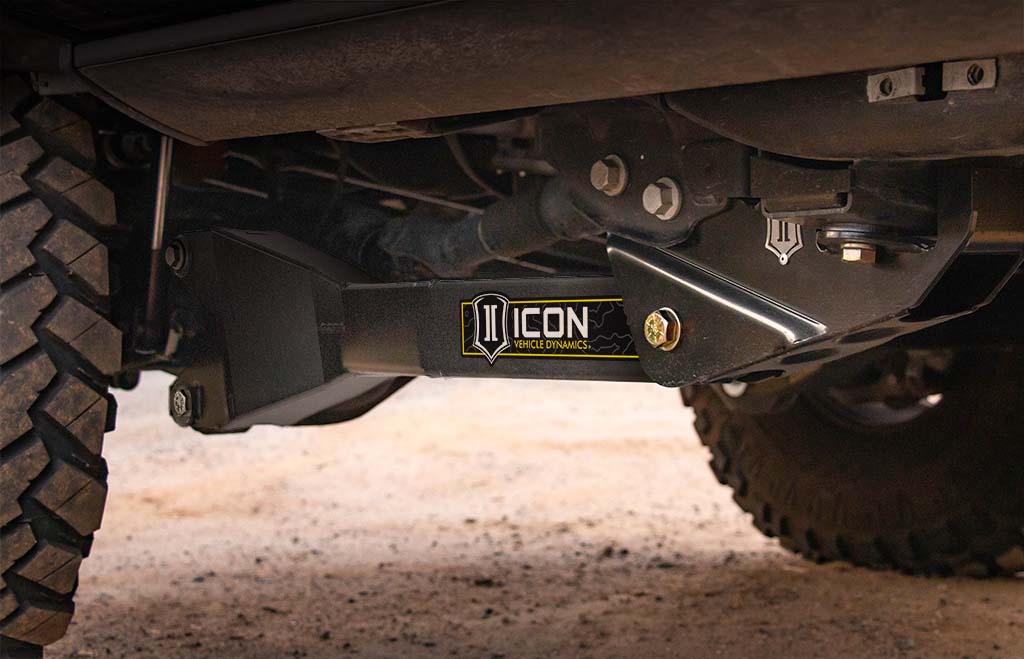

• Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• ICON shocks feature vehicle specific tune for superior performance and ride quality

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Springs Are Rated For Diesel Engines Only
• This System May Require A Carrier Bearing Drop Bracket Kit (33700)
• ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• Ships in multiple boxes

Manufacturer Description

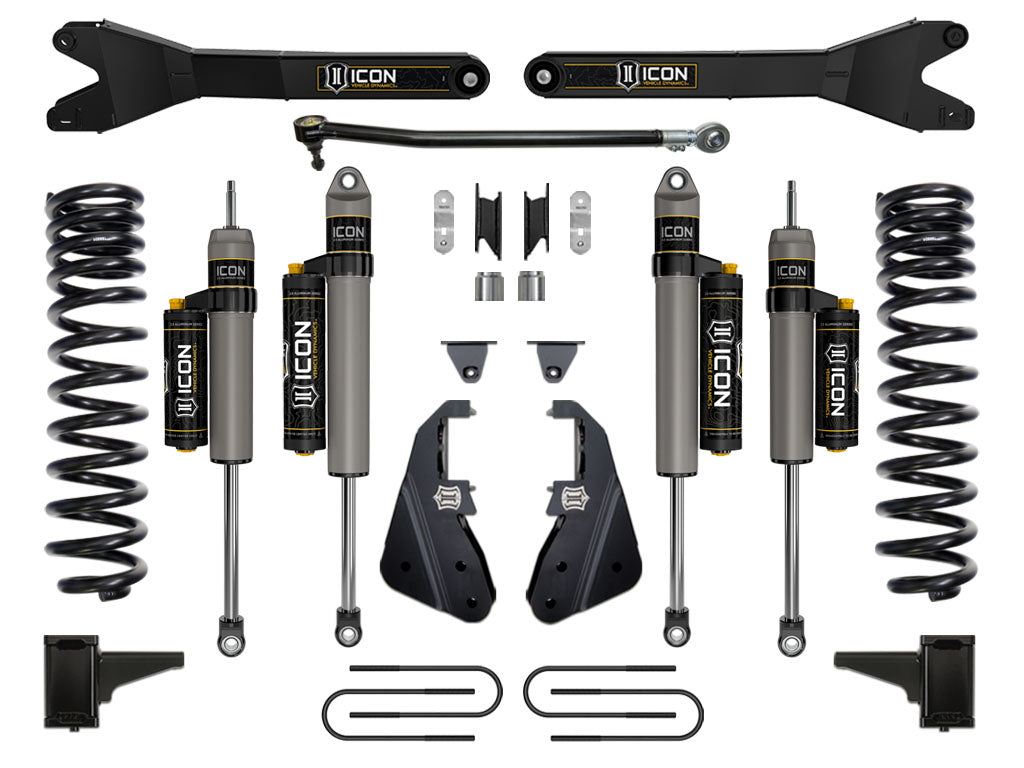

This ICON Vehicle Dynamics 4.5" suspension system is a great way to lift your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. The Stage 4 system is perfect for on-road and off-road use including towing, job site duty and hardcore off-road adventure. ICON's Stage 4 System is comprised of dual rate coil springs, adjustable track bar, 5" block kit, and ICON CDC Valve 2.5 Aluminum Series front and rear piggyback reservoir shocks. This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37" tall tire clear without coming in contact with the radius arm.
