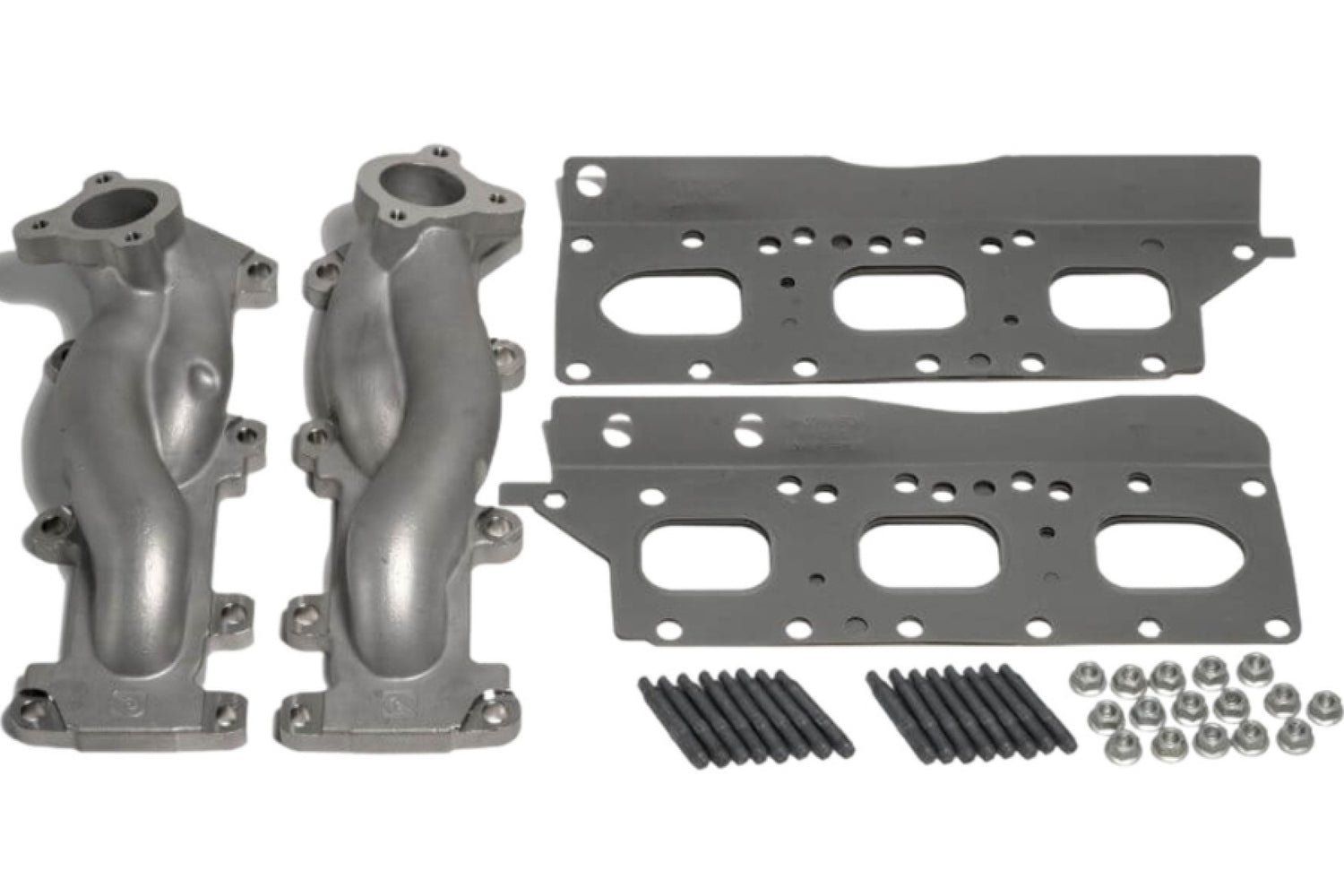

2017-2020 F-150/Raptor 3.5L EcoBoost Formline Turbo Manifolds (A0113A)

The Full-Race Formline Turbo Manifolds for the Gen 2 (2017-2020) Ford 3.5L EcoBoost engines offer the ultimate solution to the inherent failure risks of OEM cast iron manifolds. Built for strength and performance, these manifolds replace the restrictive factory parts to solve common warping and cracking issues. Cast from superior 347 stainless steel, this material maintains exceptional resistance to failure under the high temperatures experienced during towing and performance driving. The final design features individual runners and a merge collector to prevent exhaust pulse interference, increase turbocharger efficiency, and maximize power.

Features

• Investment cast from high-temperature 347 stainless steel.
• Features an individual runner and merge collector design.
• Turbine outlet is port matched to the OEM Gen2 turbo (41mm) for maximum flow.
• Increased runner diameter and port size reduces back pressure and increases flow capacity by 41% over OEM.
• Designed to fit larger aftermarket turbos.
• Includes hardware kit with Full-Race Inconel exhaust manifold studs, nuts, and gaskets.

Notes

• Cast from 347 stainless steel which resists warping and cracking up to 1740°F (950°C), far exceeding the limitations of OEM cast iron.
• Manifolds are a direct, 100% bolt-on replacement for the OEM parts.
• Aftermarket parts can affect your vehicle’s warranty; consult your warranty agreement or dealer for details.
• The product is backed by a Limited Lifetime Warranty against manufacturing defects.

Compatibility Notes

• Fits 2017 - 2020 Ford F150 with Gen2 3.5L Ecoboost Engine.
• Also fits 2018 - 2021 Ford Expedition EcoBoost 3.5L.
• Also fits 2018 - 2021 Lincoln Navigator EcoBoost 3.5L.

Specs

• Material: 347 Stainless Steel
• Coating: Raw Stainless
• Flange Thickness: 1/2 inch (compared to 3/8 inch OEM)
• Outlet Diameter: 41 mm (port matched)
