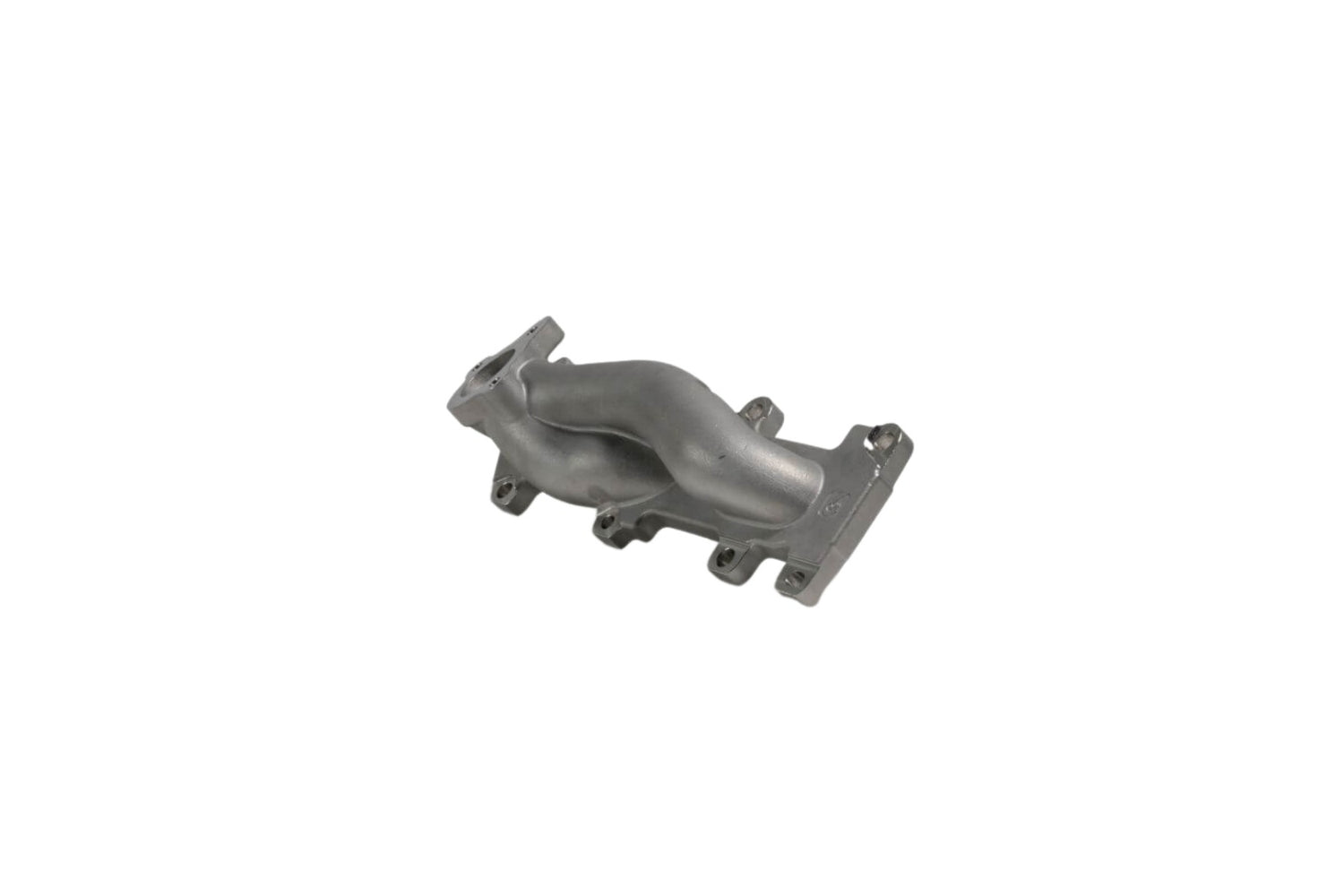

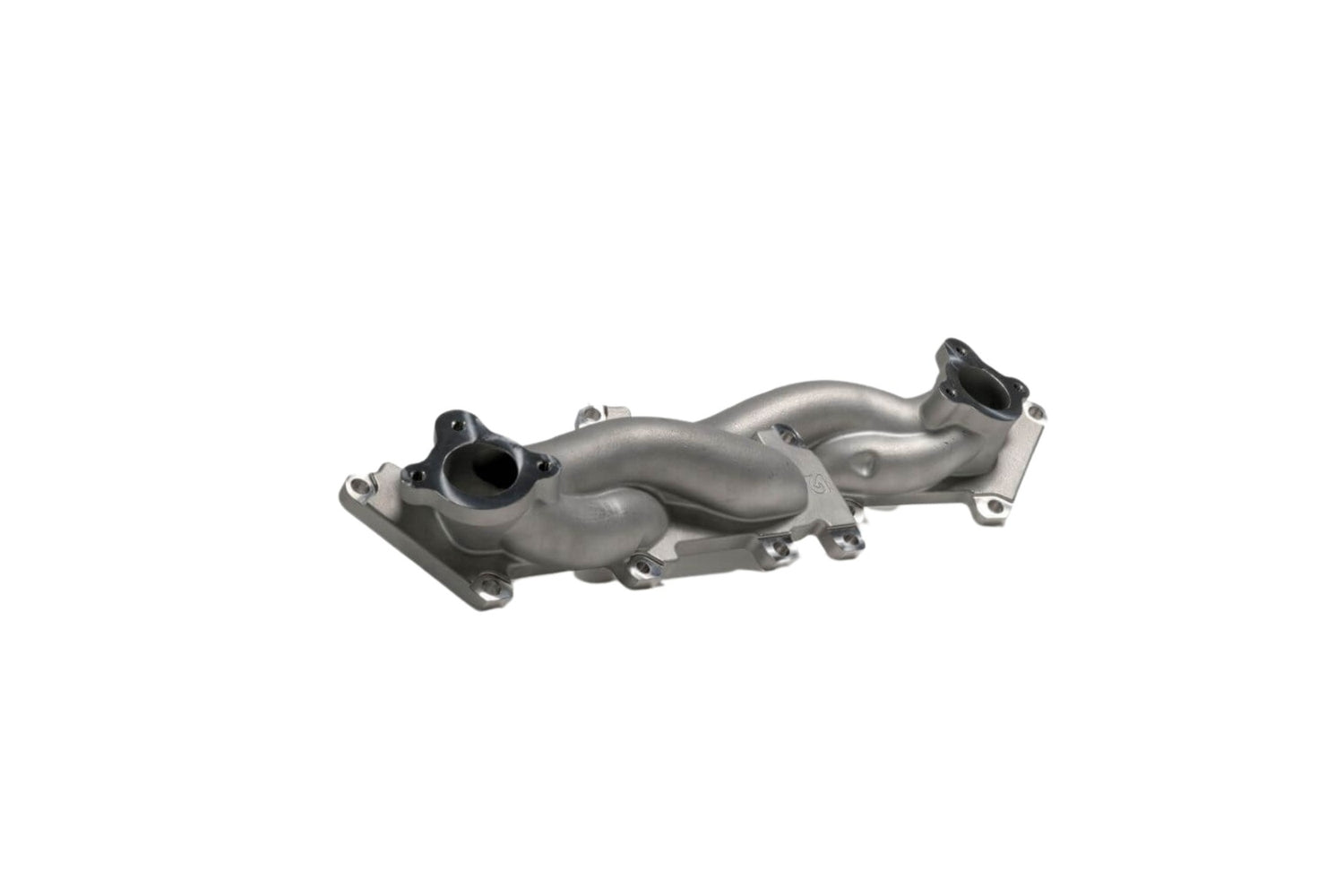

2017-2020 F-150/Raptor 3.5L EcoBoost Formline Turbo Manifolds Silver Ceramic Coated (A0155A)

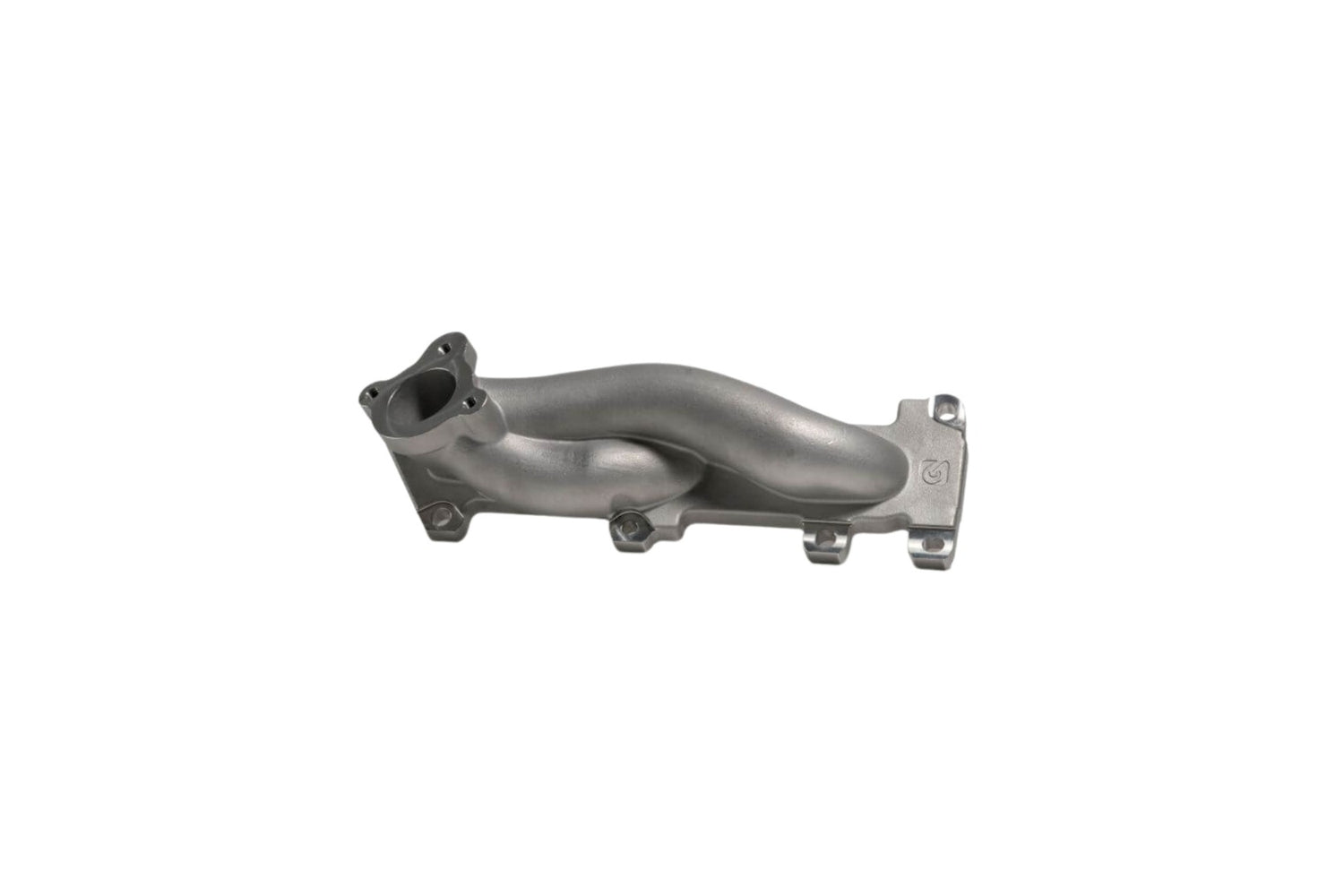

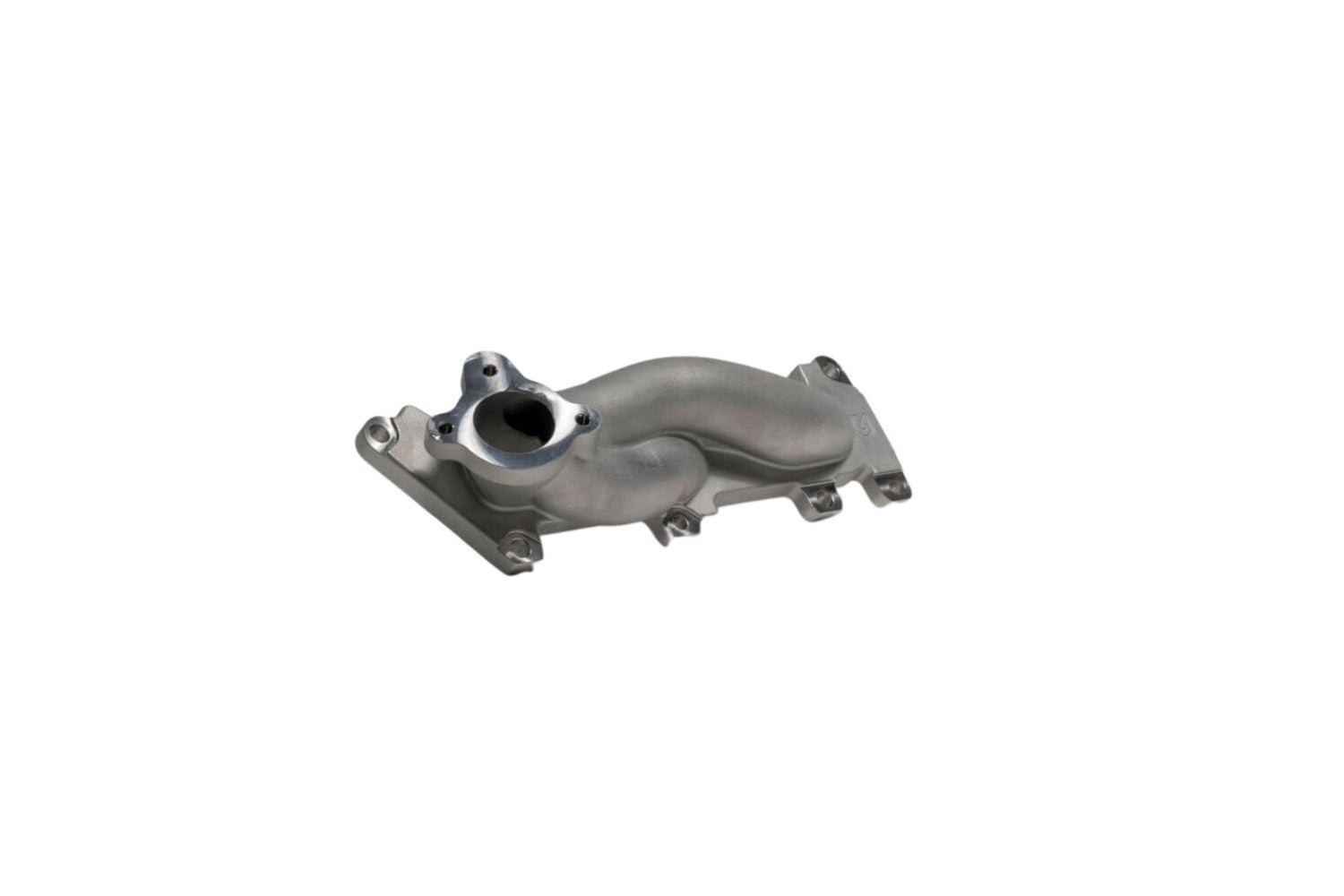

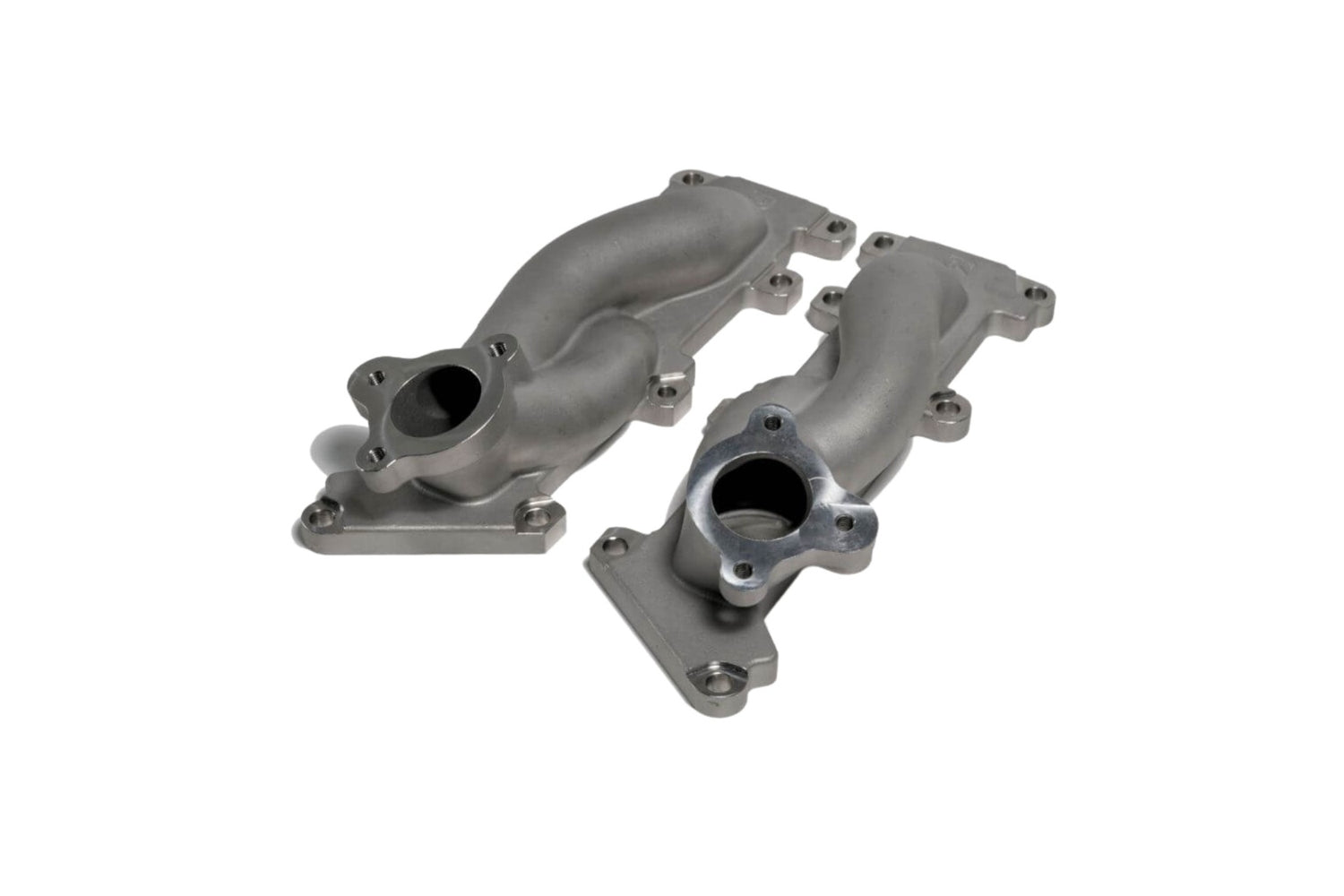

The Full-Race Formline Turbo Manifolds for the Gen 2 (2017-2020) Ford 3.5L EcoBoost engines offer the ultimate solution to the inherent failure risks of OEM cast iron manifolds. This version is fully finished with a protective ceramic coating to significantly reduce heat soak and control engine bay temperatures. Cast from superior 347 stainless steel, this material maintains exceptional resistance to failure under high temperatures. The Formline design features individual runners and a merge collector to prevent exhaust pulse interference, increase turbocharger efficiency, and maximize power while offering enhanced thermal protection.

Features

• Investment cast from high-temperature 347 stainless steel.

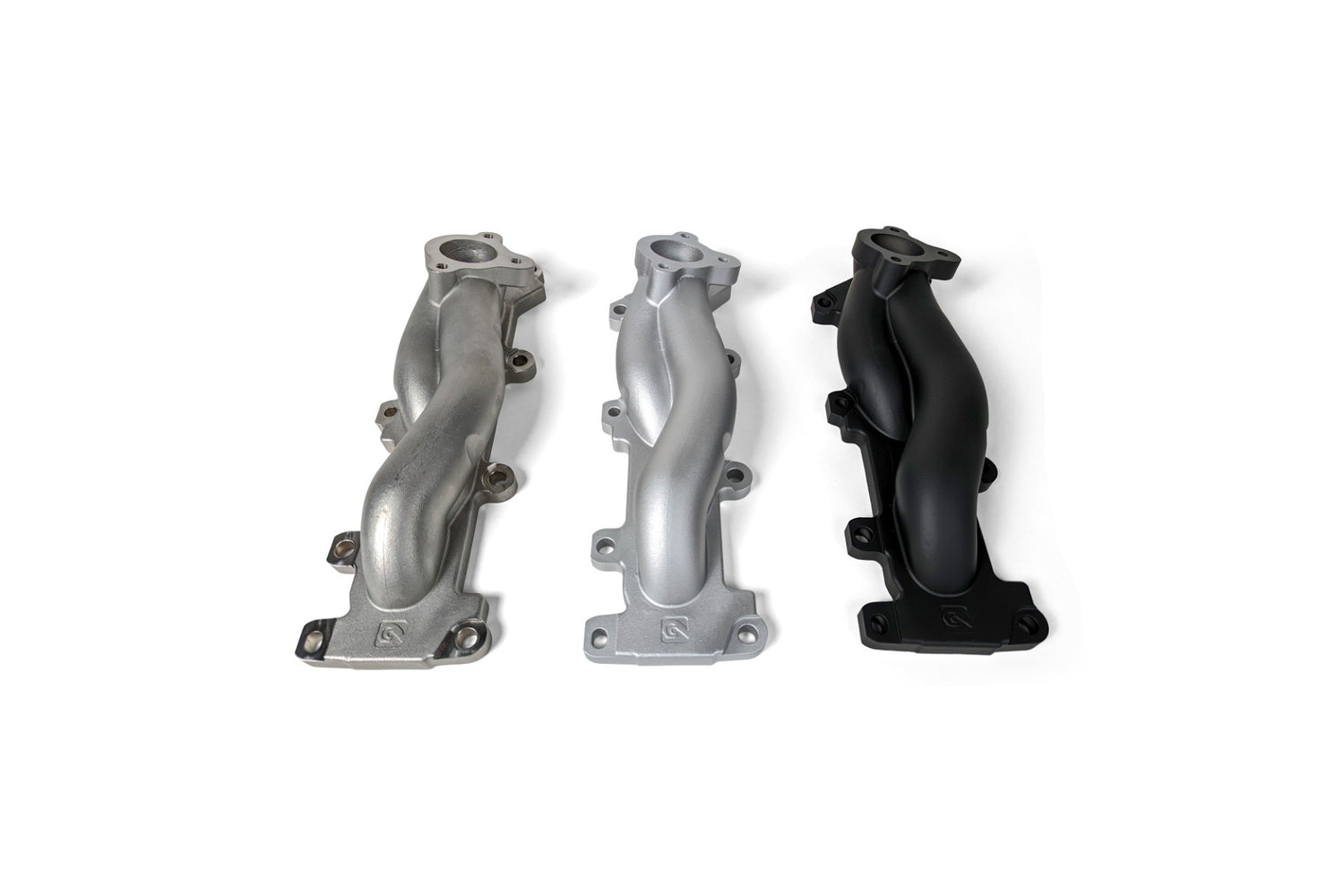

• Finished with a durable ceramic coating for maximum thermal efficiency.
• Features an individual runner and merge collector design.
• Turbine outlet is port matched to the OEM Gen2 turbo (41mm) for maximum flow.
• Increased runner diameter and port size reduces back pressure and increases flow capacity by 41% over OEM.

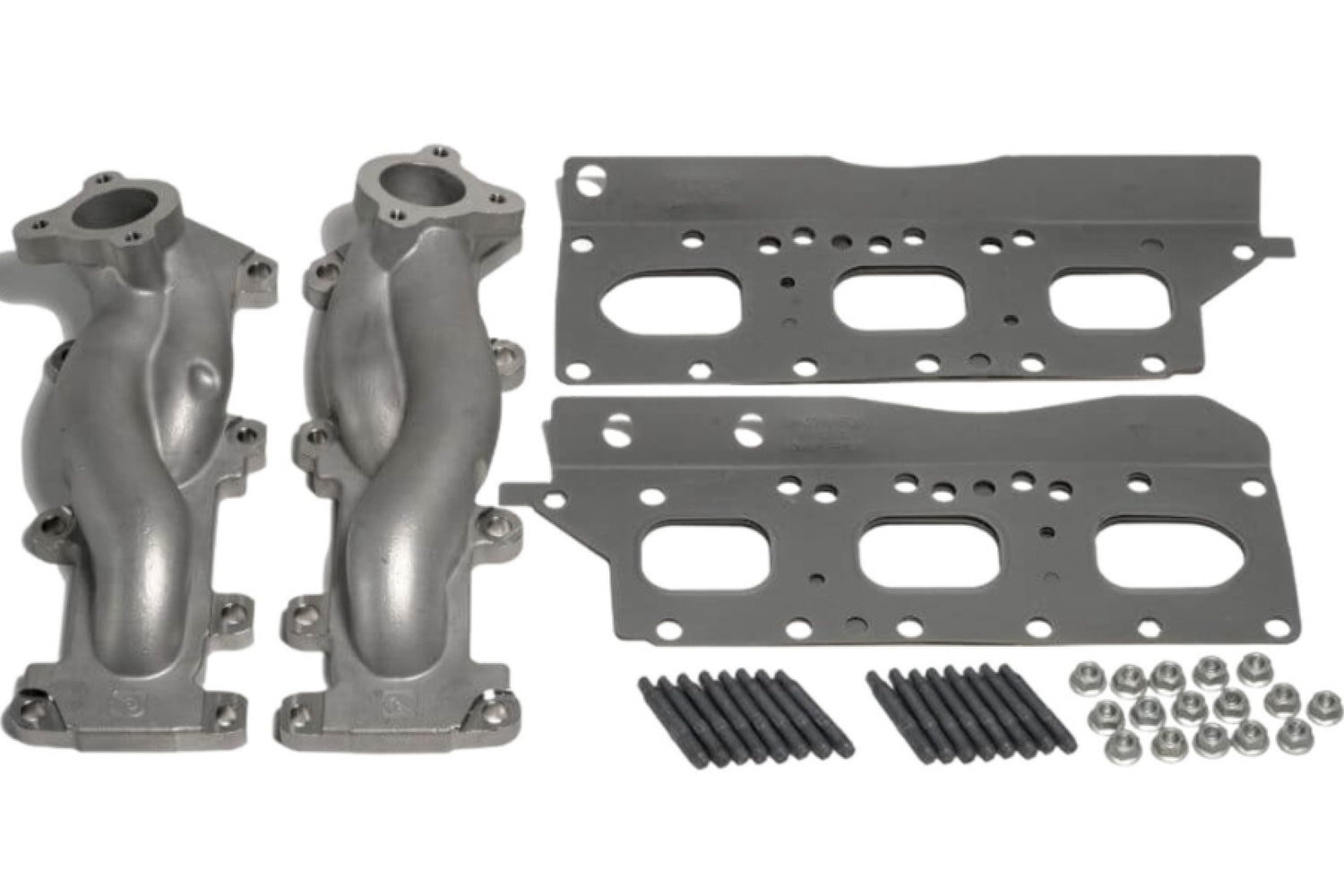

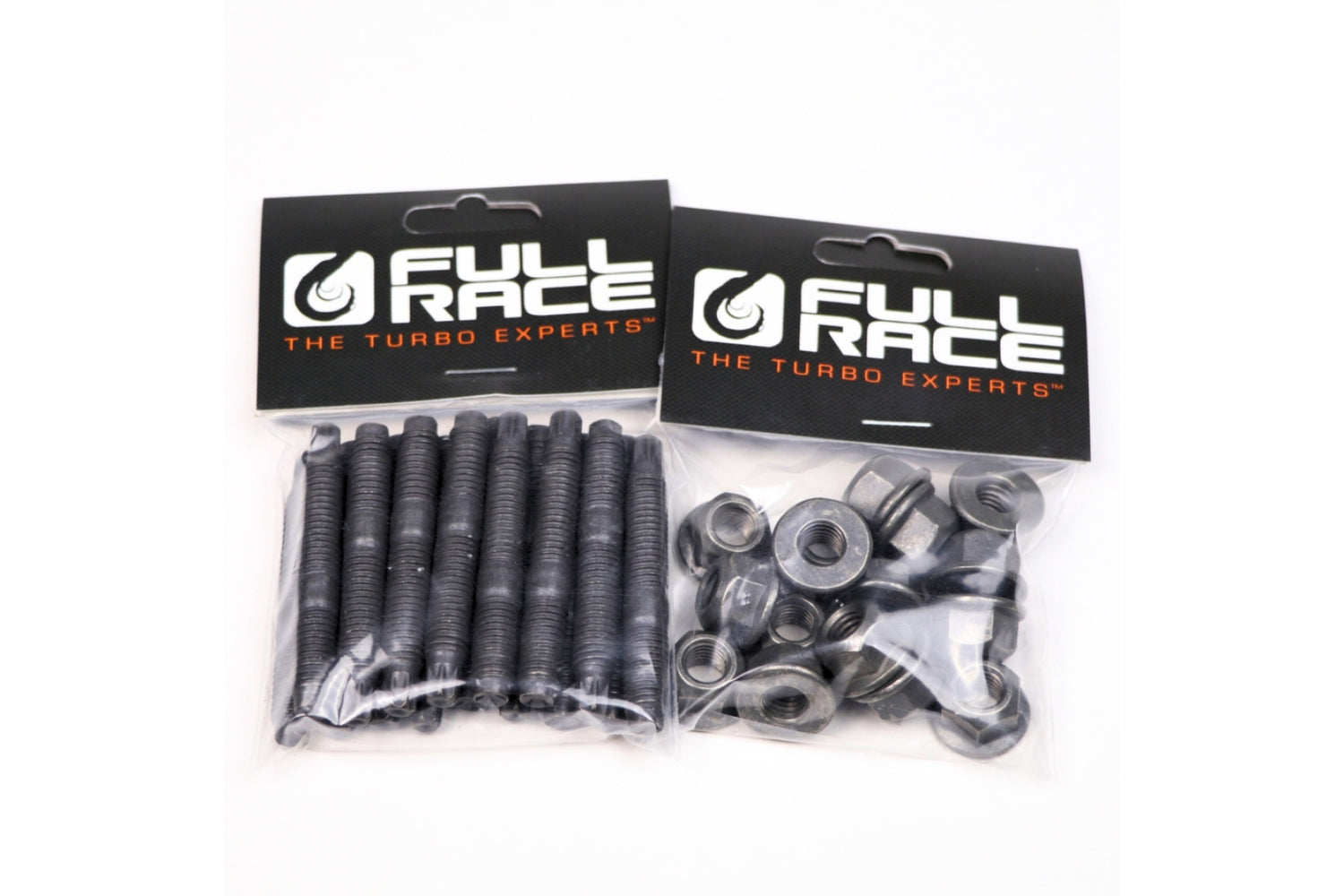

• Includes hardware kit with Full-Race Inconel exhaust manifold studs, nuts, and gaskets.

Notes

• The ceramic coating helps control under-hood temperatures, improving the density of the air entering the intake system.
• Cast from 347 stainless steel which resists warping and cracking up to 1740°F (950°C).
• Manifolds are a direct, 100% bolt-on replacement for the OEM parts.
• The product is backed by a Limited Lifetime Warranty against manufacturing defects.

Specs

• Material: 347 Stainless Steel
• Coating: Ceramic Coated
• Flange Thickness: 1/2 inch (compared to 3/8 inch OEM)
• Outlet Diameter: 41 mm (port matched)
