2017-2022 Colorado 4" Lift Kit (BDS745H)

This BDS 4" suspension lift kit lifts your 2017-2022 Chevy Colorado ZR2 while retaining the factory DSSV shocks, with clearance for up to 35" tires. Specifically engineered strut spacers correctly position the DSSV coilovers to set ride height and maintain clearance through travel. Up front it also uses top-mounted strut spacers, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets and HD skid plates, plus CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility, along with sway bar links, bump stop extensions and CV spacers.

Features

• Retains DSSV dampers
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: No
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 305/70, 35x12.5
• Wheel Diameter: 17x9, 20x9
• Back Spacing: 4.5/58

Notes

• Will fit gas and diesel models.
• Inner fender trimming required.
• Minor welding required.
• Electronic assisted steering system is sensitive to out-of-round, unbalanced, and more aggressive tread pattern tires; high-speed steering wheel feedback can occur.
• Stock 17 inch and 18 inch wheels cannot be reinstalled with the lift kit. Aftermarket 20 inch wheels with a maximum 5.25 inch backspacing are recommended; certain wheel and tire combinations require weld-on steering stops, which are included in the kit.

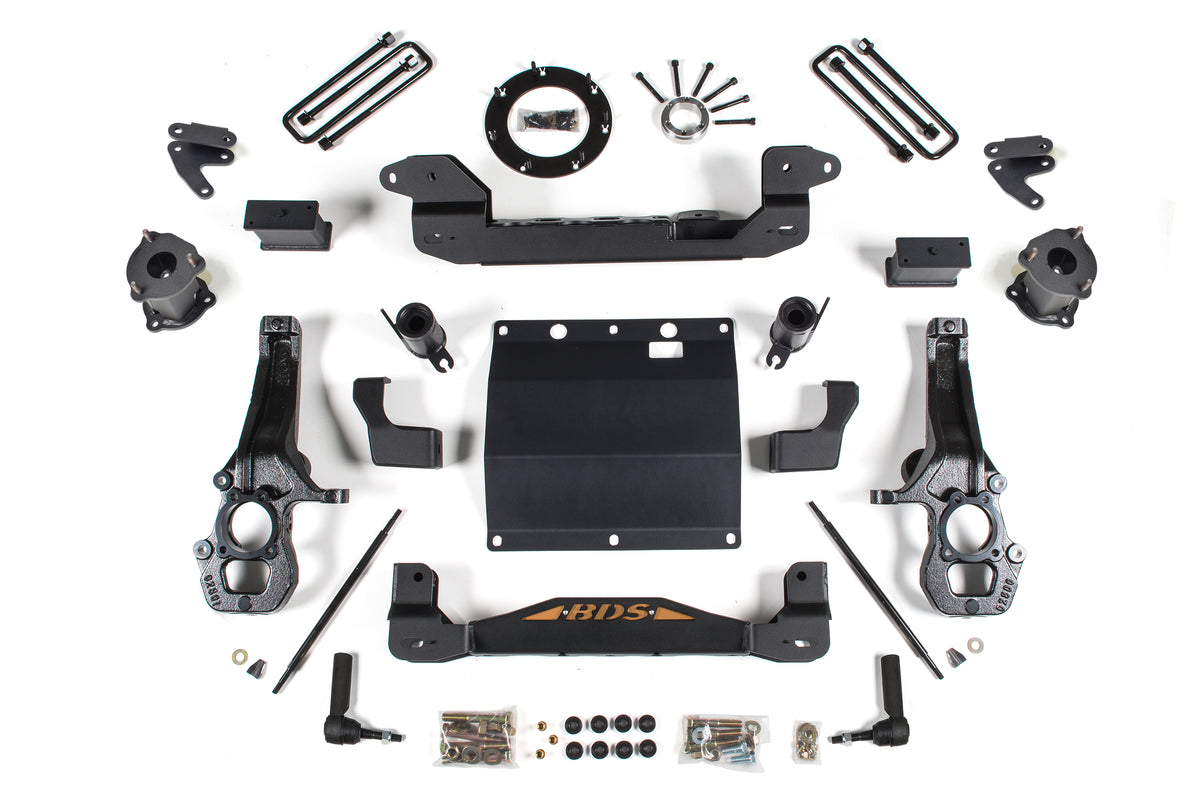

Includes

• BDS021400, 2017-2022 Chevrolet Colorado ZR2 Box Kit 1of5 (UPC 658848614585)
• BDS021401, 2017-2022 Chevrolet Colorado ZR2 Box Kit 2of5 (UPC 658848614592)
• BDS021402, 2017-2022 Chevrolet Colorado ZR2 Box Kit 3of5 (UPC 658848614608)
• BDS021403, 2017-2022 Chevrolet Colorado ZR2 Box Kit 4of5 (UPC 658848614615)
• BDS021404, 2017-2022 Chevrolet Colorado ZR2 Box Kit 5of5 (UPC 658848614622)
