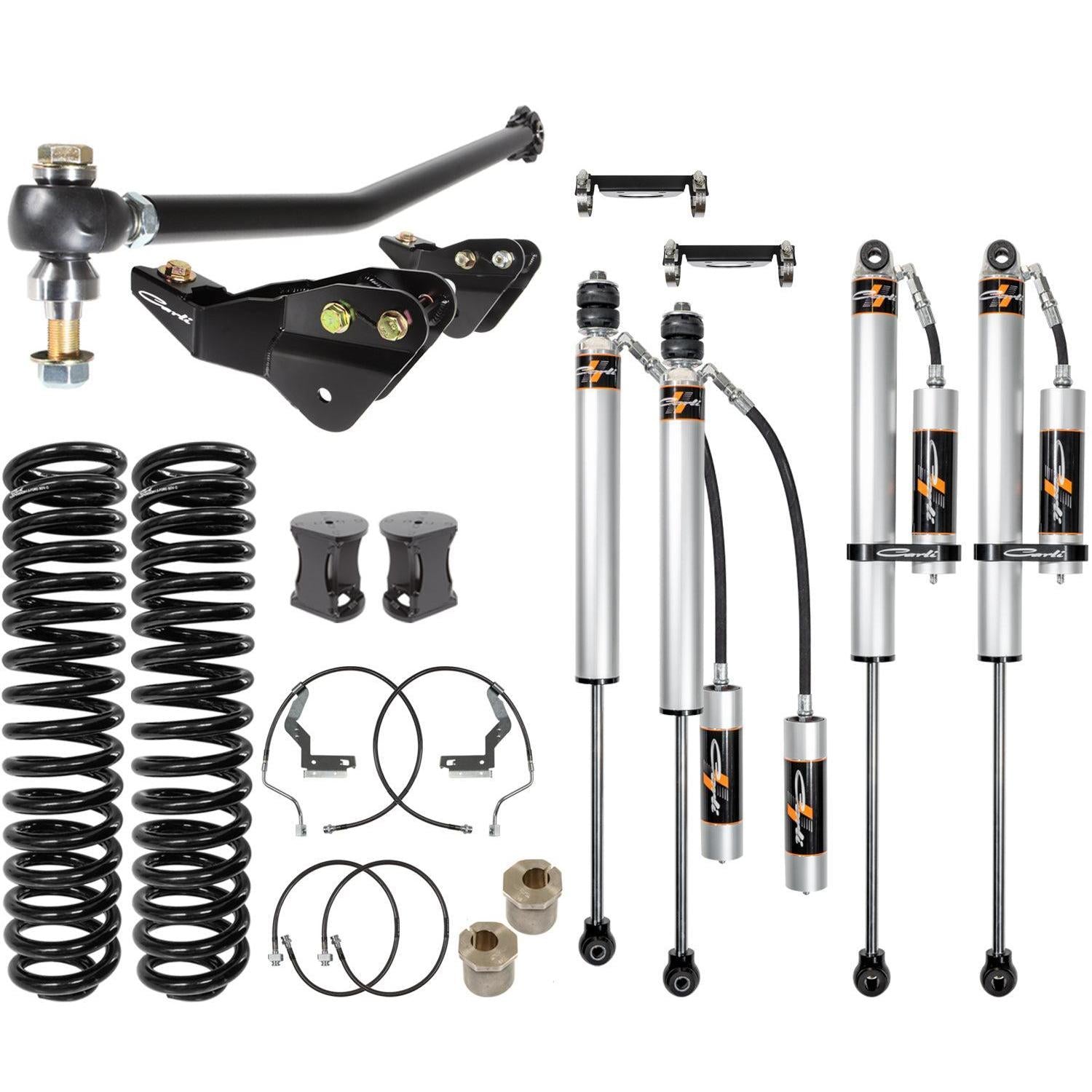

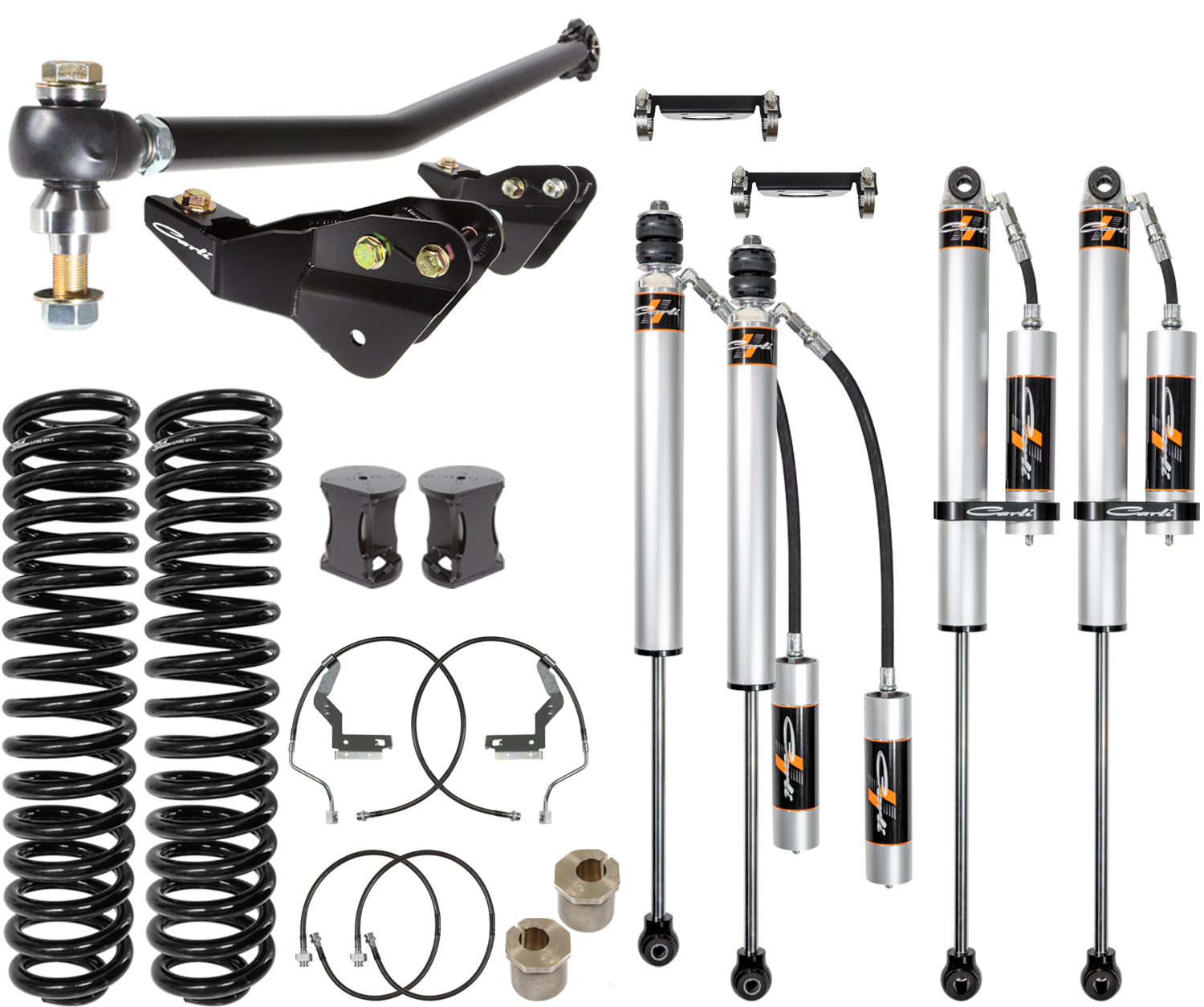

2017-2022 Super Duty 4.5-5.5" Backcountry System (CS-F45-BC-CS-17)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$5,296.32 CAD
In stock - Ships right away

Build Your Kit

The perfect comprehensive suspension setup for your Powerstroke, with front progressive-rate coil springs that provide the perfect blend of comfort and control, similar to Multi-rate coil springs, they stay soft for a smooth ride, but stiffen up as more pressure is applied, ideal if you tow or haul frequently. Paired with Carli's 2.0 remote reservoir shocks to further maintain stability, control, and provide superior bottom-out protection.

Sway Bar Options

Required

Rear Leaf Spring Options

Required

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Long Travel Bags

Optional

Fabricated Radius Arms

Optional

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Carrier Bearing Drop

Optional

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Subtotal

Part Specs
Warranty
Description

The Backcountry 2.0 system is designed for people seeking the best ride on and off-road quality on a budget; basically, the system for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability. Utilizing Carli SPEC 2.0 Diameter, Remote Reservoir shocks, we've developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use.

Features

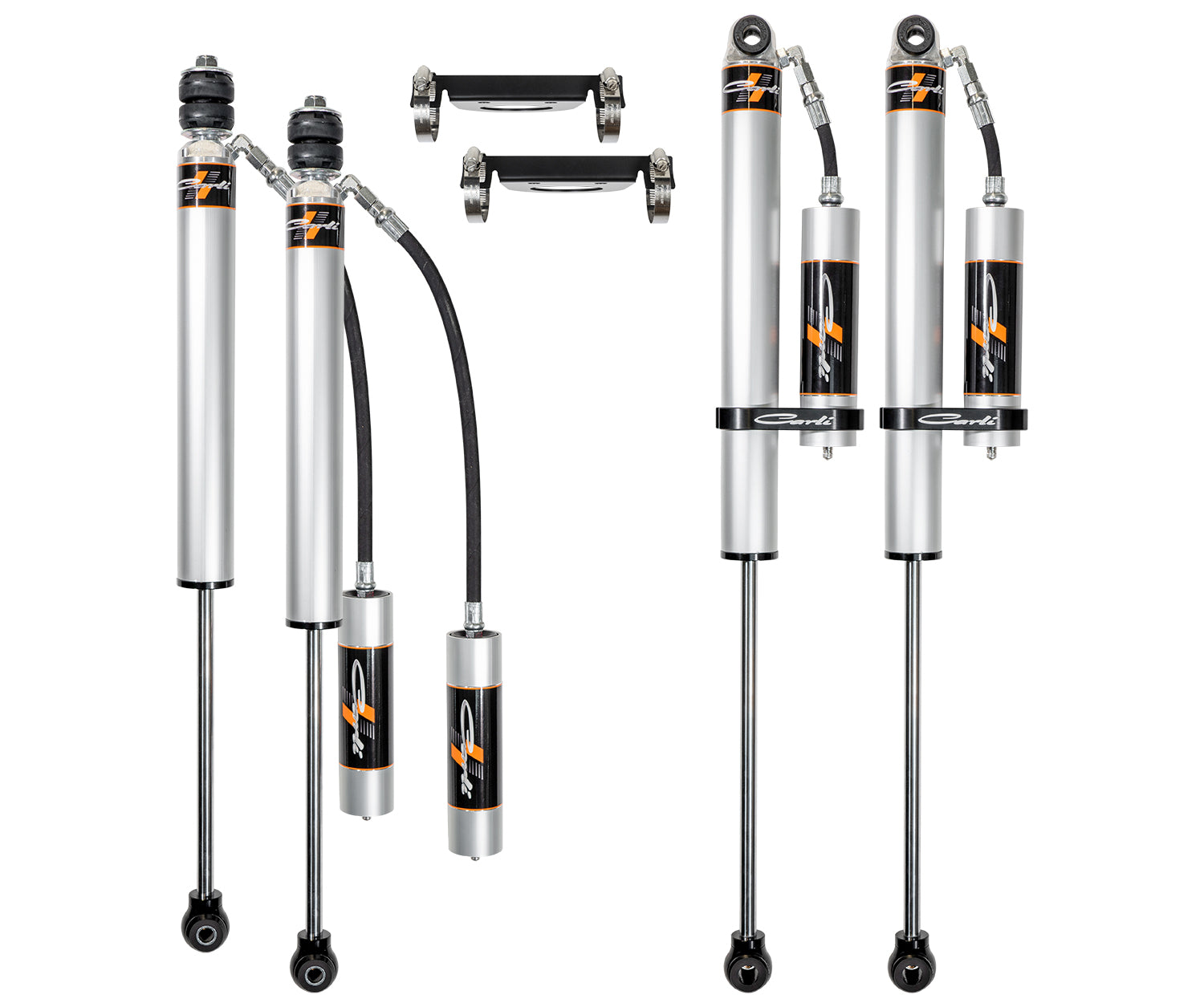

  • Features Carli SPEC 2.0 Remote Reservoir Shocks.
  • Includes Front Multi-Rate Coils and Rear Progressive Add-a-Packs.
  • Comes with an Adjustable Track Bar to center the front axle.

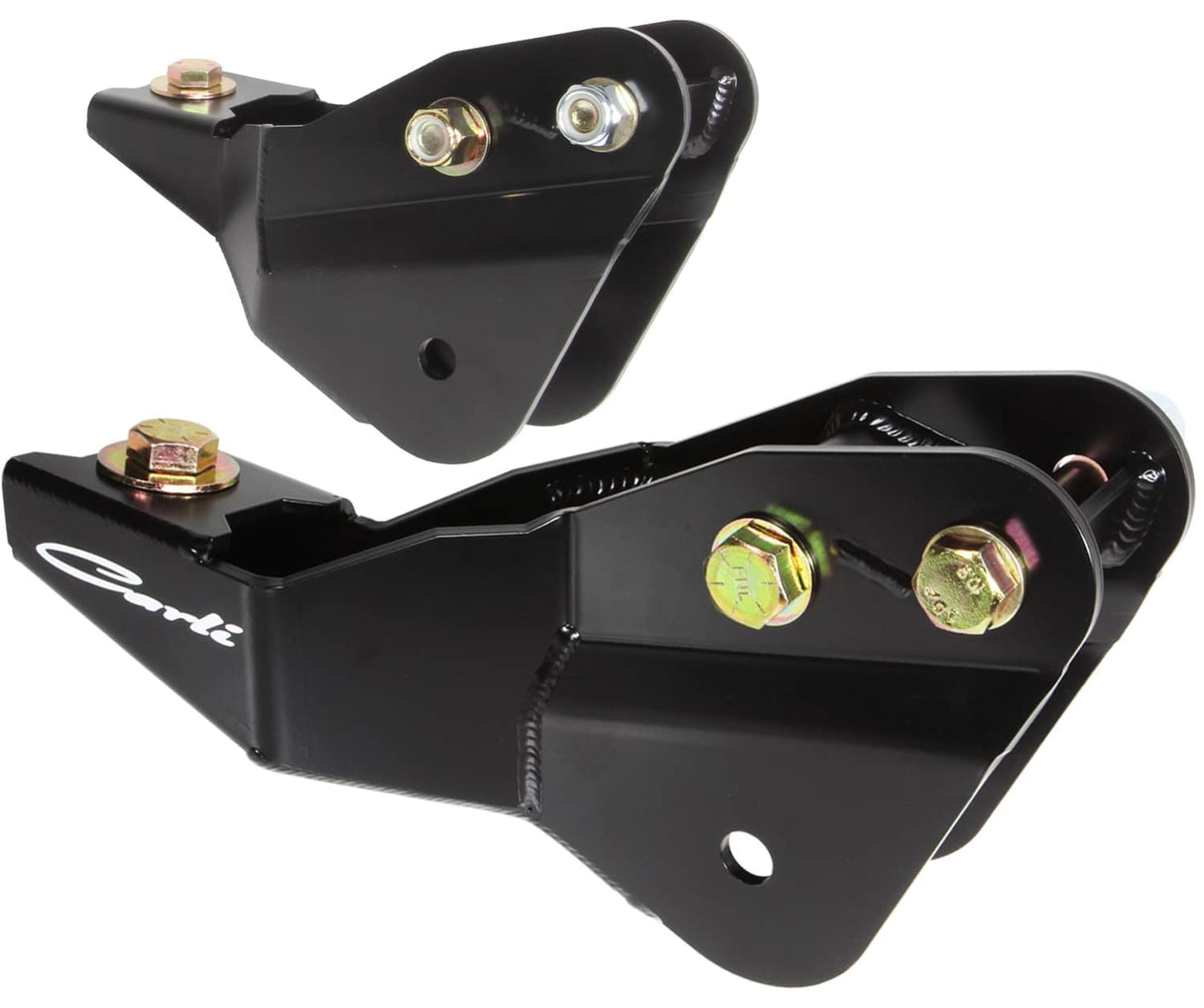

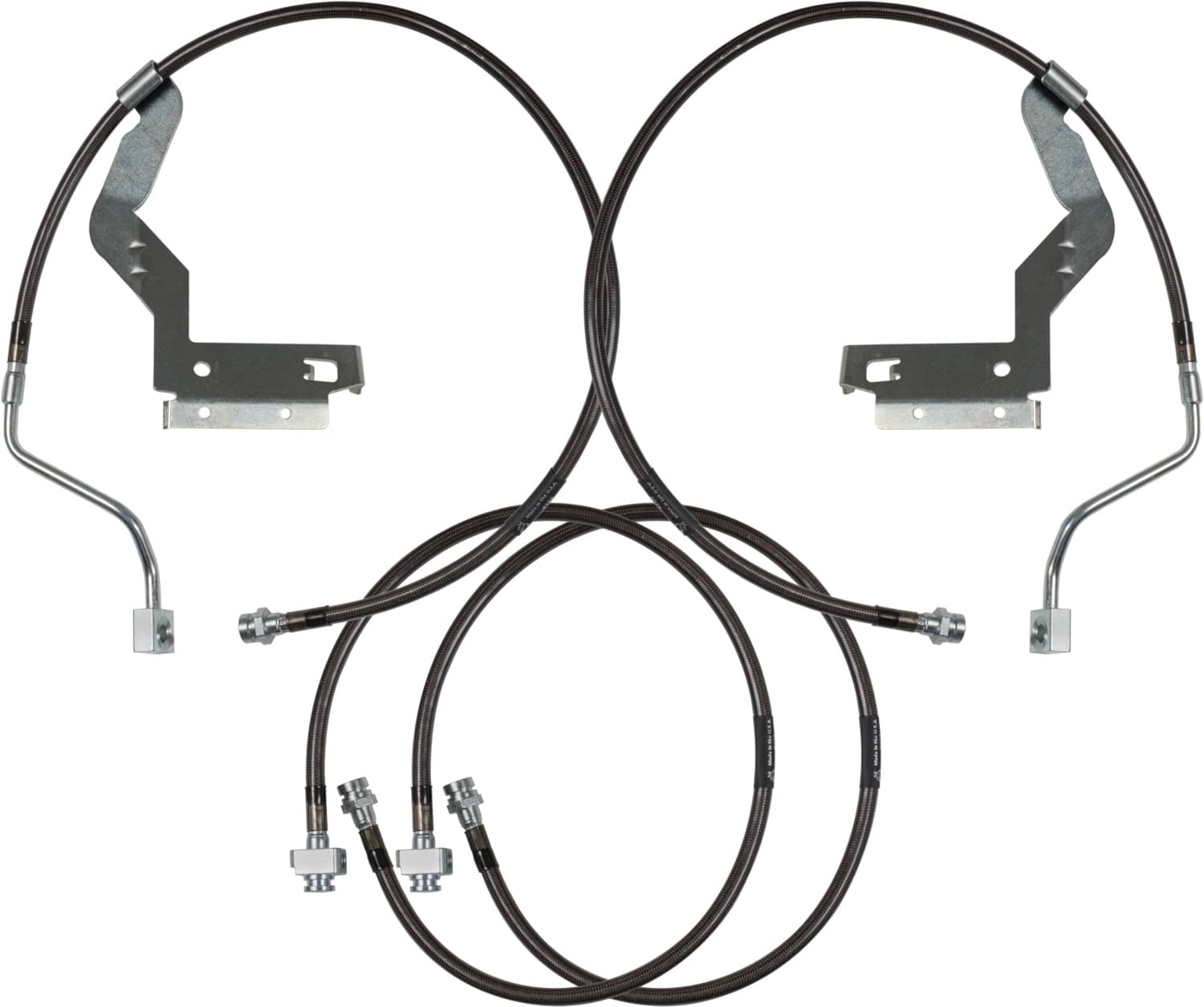

  • Includes Radius Arm Drop Brackets and Stainless Extended Brake Lines.

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    CS-F45-BC-CS-17
  • Vendor
    Carli Suspension
  • Shipping Weight
    193.0 lb
  • Placement
    • Front
    • Rear
  • Prop 65
