2017-2023 Super Duty 4x4 Diesel 2.5"/3.5" Lift E-Venture System (CS-FLVL-EV25-17)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$9,525.60 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

One of the most advanced shock packages Carli offers, the E-Venture 2.5 Series Remote Reservoir Shocks are SDI electronically controlled, which read and react 250 times per second for on-the-fly instant shock tuning. Featuring 3 pre-programmed drive modes to cater to any application: Mountain (Rock-Crawl), Street, and Desert Mode. Each mode has been extensively refined and is in order from softest/least sensitive to most controlled/active.

Sway Bar Options

Required

This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Rear Leaf Spring Options

Required

This System has been optimized for use with the Full Progressive Leaf Springs. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package).

Long Bed Extension Harness

Optional

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Radius Arms

Optional

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Subtotal

Part Specs
Warranty
Description

One of the most advanced shock packages Carli offers, the E-Venture 2.5 Series Remote Reservoir Shocks are SDI electronically controlled, which read and react 250 times per second for on-the-fly instant shock tuning. Featuring 3 pre-programmed drive modes to cater to any application: Mountain (Rock-Crawl), Street, and Desert Mode. Each mode has been extensively refined and is in order from softest/least sensitive to most controlled/active.

SDI has put an extensive amount of R&D into this user-friendly dial so you can easily adjust Pitch, Roll, Brake, Throttle, Load, and Steering Response. Providing you with unparalleled control and precision in every way for the ultimate suspension setup.

Part Number: CS-FLVL-EV25-17

Features
  • Select from Mountain, Street, and Desert modes to choose the best setting for any terrain. Each setting has been EXTENSIVELY refined and can be activated instantaneously with the push of a button.
  • Pro Mode allows users to adjust the Pitch, Roll, Brake, Throttle, and Steering Response. Don't worry, if your curiosity gets ahead of you or you failed to track your changes, we've implemented a "Restore Default" setting
  • Rear Load Adjustment feature gives the user control over the rear dampers. When loaded, the rear can be adjusted to balance comfort and support, OR max the rear support to prioritize load support

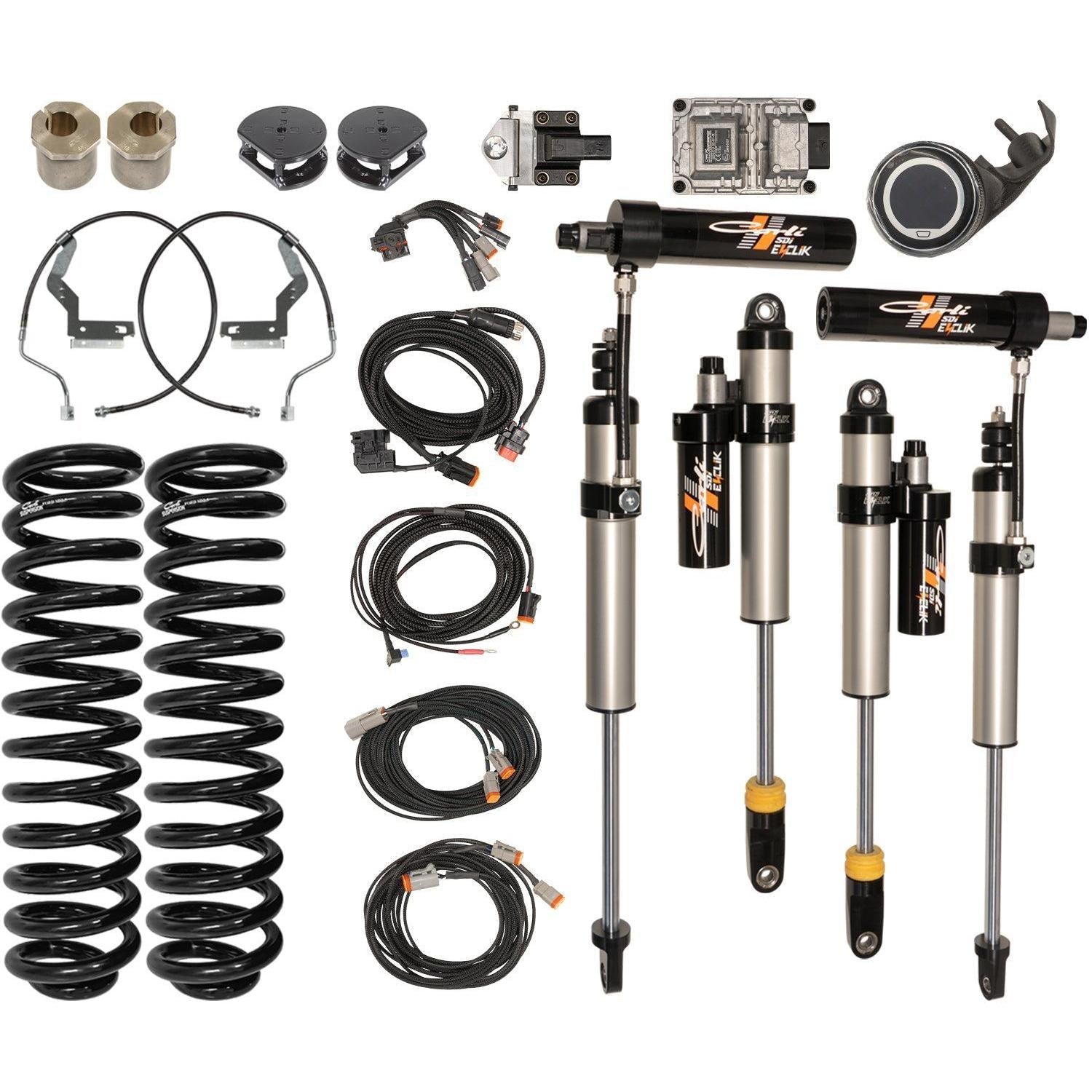

  • Front and rear shock packages, linear rate coil springs, brake line kits, bump stop drops, caster correction shims, and adjustable track bars
  • Increases wheel travel to 9" front and 13" rear
Notes
  • Kit requires Carli sway bar drop brackets, Carli long bed extension harness, and Carli progressive leaf springs. These components are sold separately

Fitment & Lift:

  • 3.5" Lift - 2020-2023 F250/350 4x4 Diesel
  • 1.5" Lift - 2020-2023 F250/350 TREMOR
  • 2.5" Lift - 2017-19 F250/350 4x4 Diesel

Warranty
Limited 1 (One) Year Warranty
