2017-2024 Super Duty 4x4 Gas 2.0"/3.0" Lift Backcountry System (CS-FLVL-BC-CS-17-GAS)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$4,187.52 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome plated shaft, and 6061 billet rod ends. Front Linear-Rate Coil Springs are tighter when cornering and react consistently throughout any compression range, making them more responsive and predictable.

Sway Bar Options

Required

This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Leaf Spring

Required

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Radius Arms

Optional

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Subtotal

Part Specs
Warranty
Description

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8" hardened steel chrome plated shaft, and 6061 billet rod ends. Front Linear-Rate Coil Springs are tighter when cornering and react consistently throughout any compression range, making them more responsive and predictable.

Part Number: CS-FLVL-BC-CS-17-GAS

Features

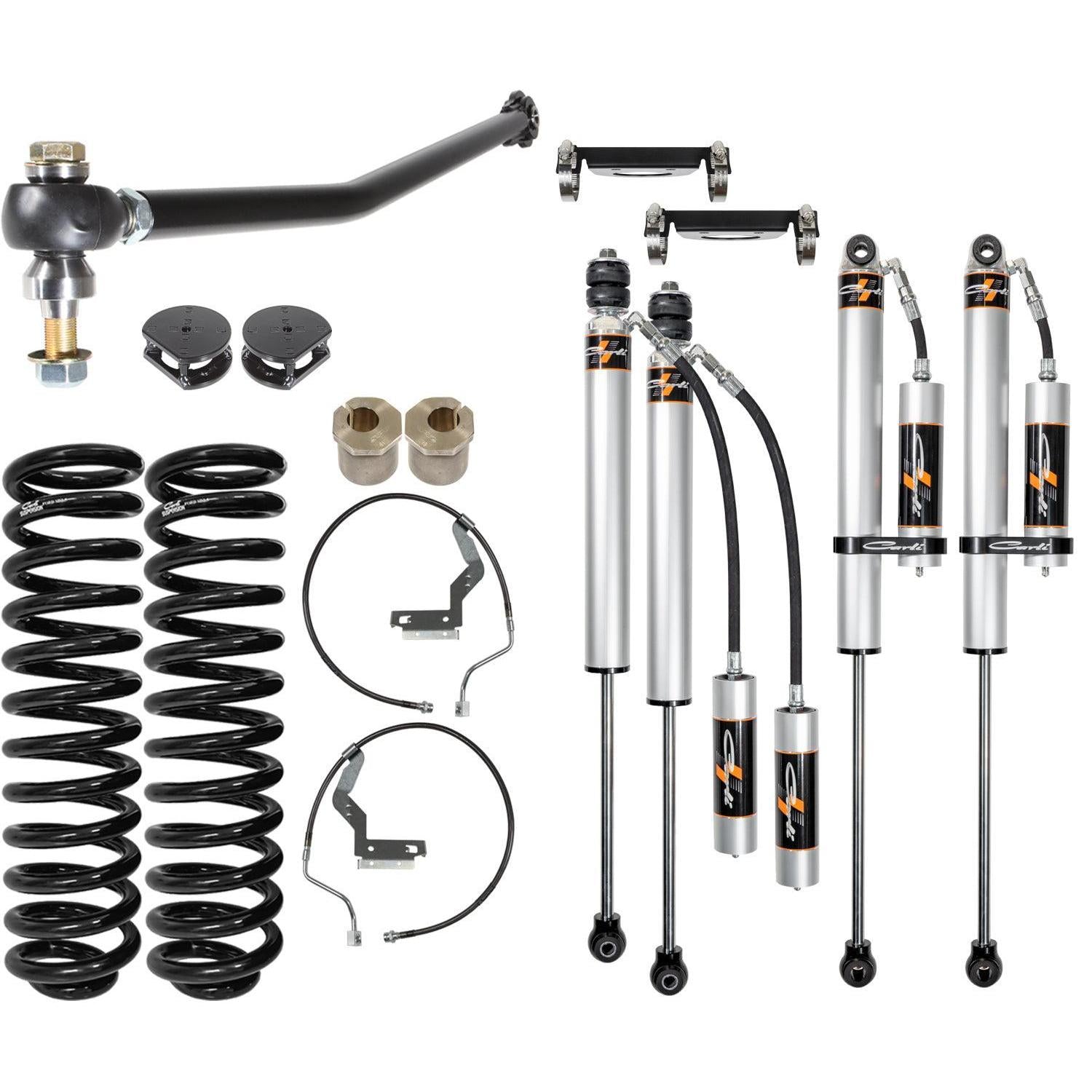

  • Linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
  • Increases wheel travel to 9" front and 13.8" rear
  • Requires but does not include the sway bar option
Notes
  • NOT compatible with diesel models

Fitment:

  • 3.0" Lift - 2020-2023 F250/350 4x4 GAS, Base Kit
  • 2.0" Lift - 2017-2019 F250/350 4x4 GAS, Base Kit

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    CS-FLVL-BC-CS-17-GAS
  • Vendor
    Carli Suspension
  • Shipping Weight
    137.0 lb
  • Prop 65
    ⚠️ Warning: Cancer & Reproductive Harm
