2017-2022 Super Duty 4x4 Gas 2.0"/3.0" Lift Leveling System (CS-FLVL-SIG-17-GAS)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$1,761.12 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

For those looking for more than just a generic spacer leveling kit, this Carli Signature Series Leveling Lift Kit will lift the front end of your F-Series pickup 3.5" higher and provide you with increased clearance/ wheel travel without compromising payload capacity and maintaining a smooth, responsive ride over any terrain.

Sway Bar Options

Required

This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Matching Rear Shocks

Optional

Adjustable Track Bar

Optional

Centers the axle at the new ride height utilizing a stronger suspension/steering link to prevent death-wobble and improve overall tracking and steering feel.

Rear Leaf Spring

Optional

Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package).

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Radius Arms

Optional

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Subtotal

Part Specs
Warranty
Description

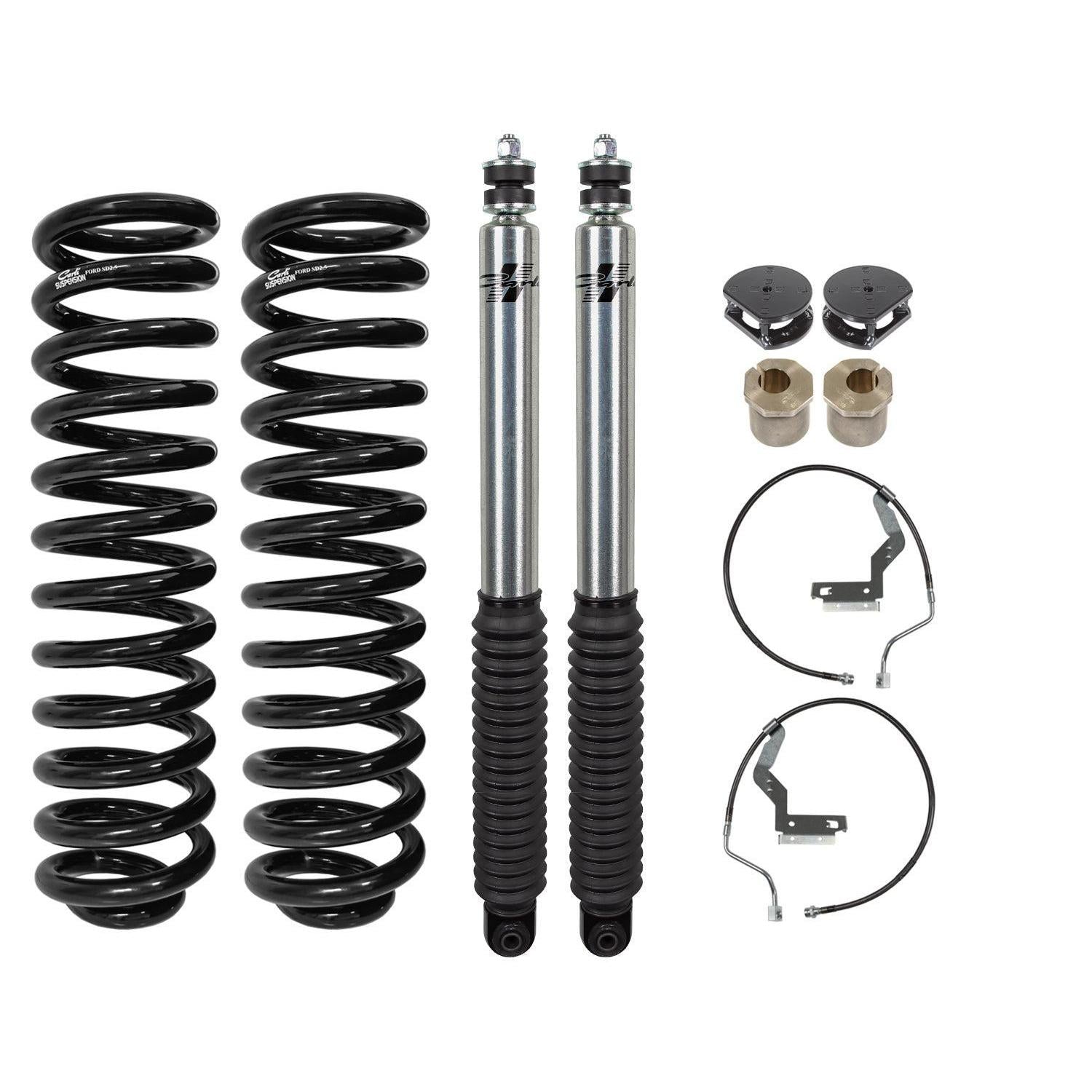

For those looking for more than just a generic spacer leveling kit, this Carli Signature Series Leveling Lift Kit will lift the front end of your F-Series pickup 3.5" higher and provide you with increased clearance/ wheel travel without compromising payload capacity and maintaining a smooth, responsive ride over any terrain.

Part Number: CS-FLVL-SIG-17-GAS

Features
  • Carli-tuned and corrosion-resistant to provide a durable and comfortable ride.
  • Front and rear shock package, linear rate coil springs, brake line kit, bump drops, caster correction shims, and adjustable track bar
  • Carli Signature Series shocks carry a limited lifetime warranty, so you can upgrade without worry
  • Increases wheel travel to 9" front and 13" rear.
Notes
  • NOT compatible with diesel applications
  • A "Base Kit" SKU must be accompanied by the SKU of a Sway Bar Option to form a complete system
  • 3.0" Lift - 2020-2023 F250/350 4x4 GAS, Base Kit
  • 2.5" Lift - 2017-2019 F250/350 4x4 GAS, Base Kit

Warranty
Limited 1 (One) Year Warranty
