2017-2022 Super Duty 2.0-3.0" Lift Pintop System (CS-FLVL-PT25-17-GAS)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$6,560.64 CAD
In stock - Ships right away

Build Your Kit

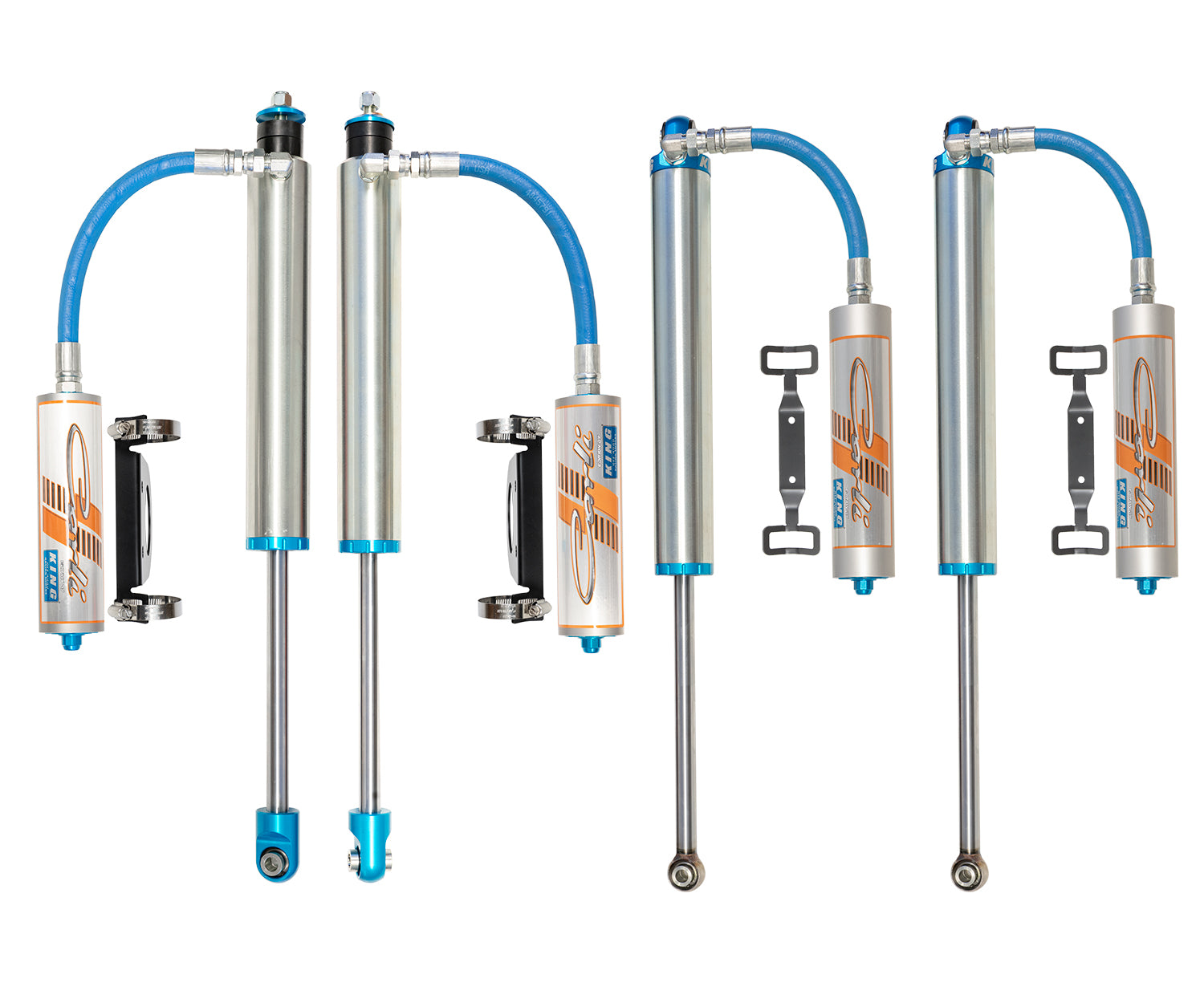

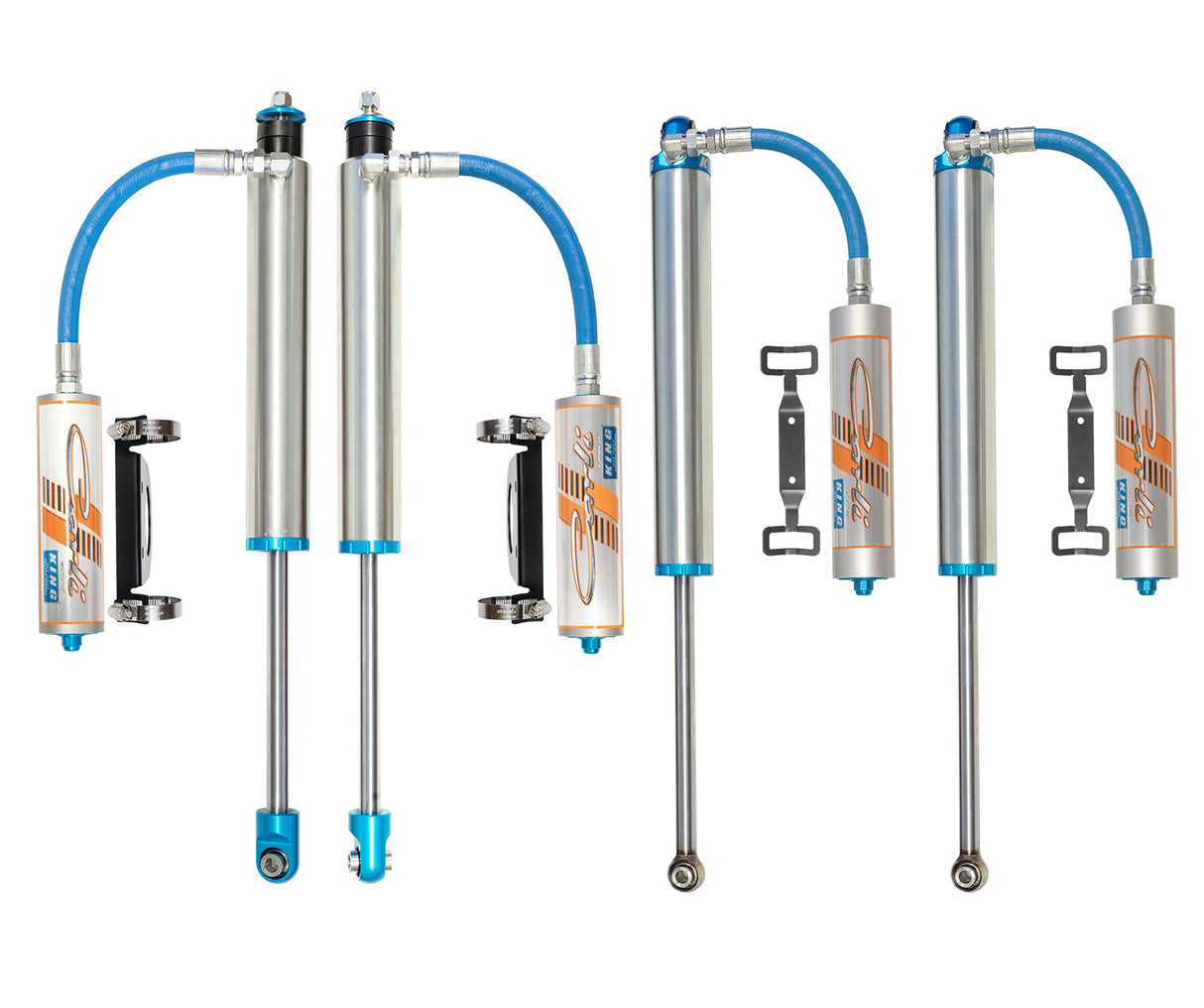

One of the best off-road suspension systems Carli offers, the Pintop 2.5" leveling lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These Pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, resulting in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Sway Bar Options

Required

This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Rear Leaf Spring Options

Required

This System has been optimized for use with the Full Progressive Leaf Springs. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package).

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Radius Arms

Optional

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Subtotal

Part Specs
Warranty
Description

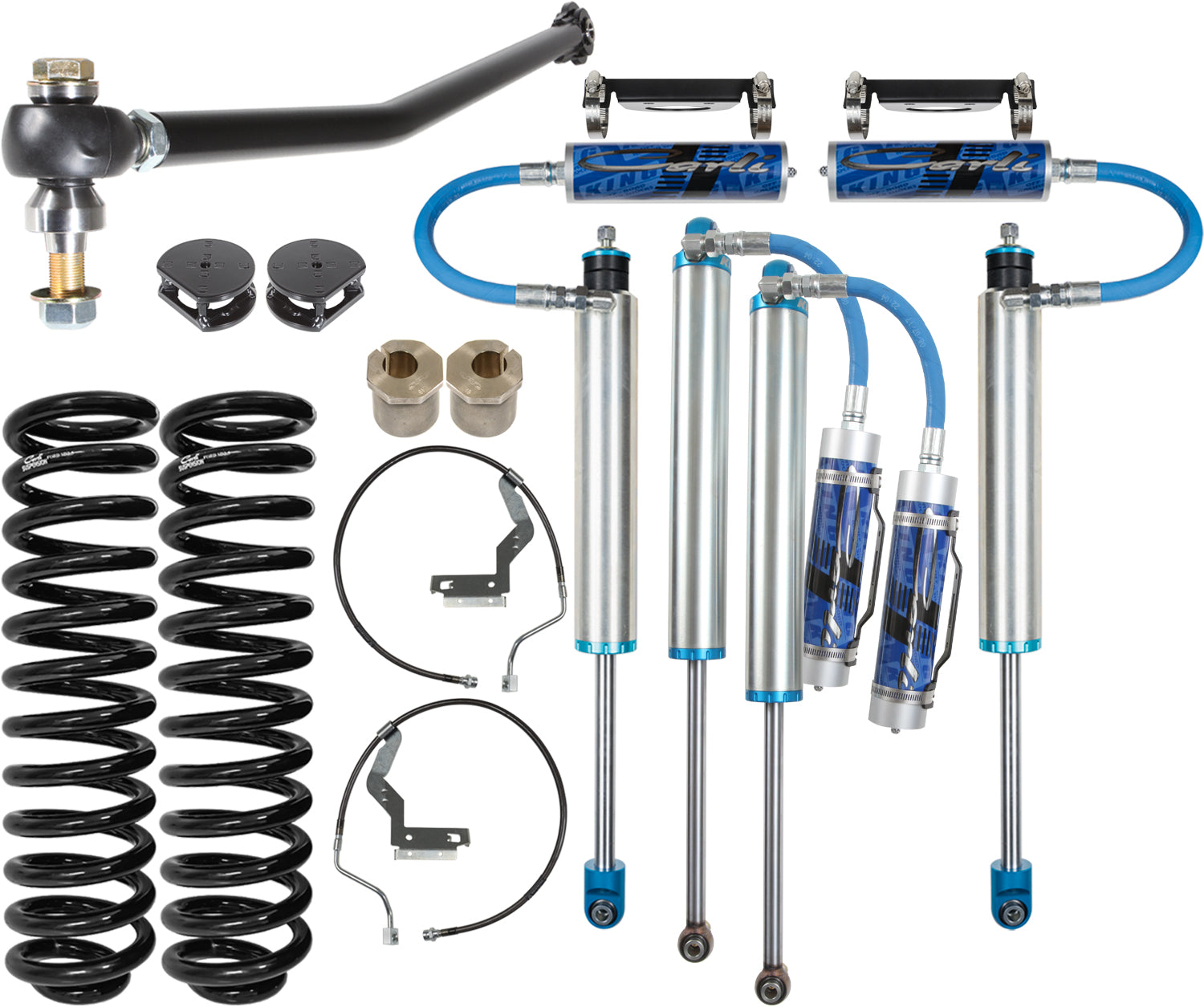

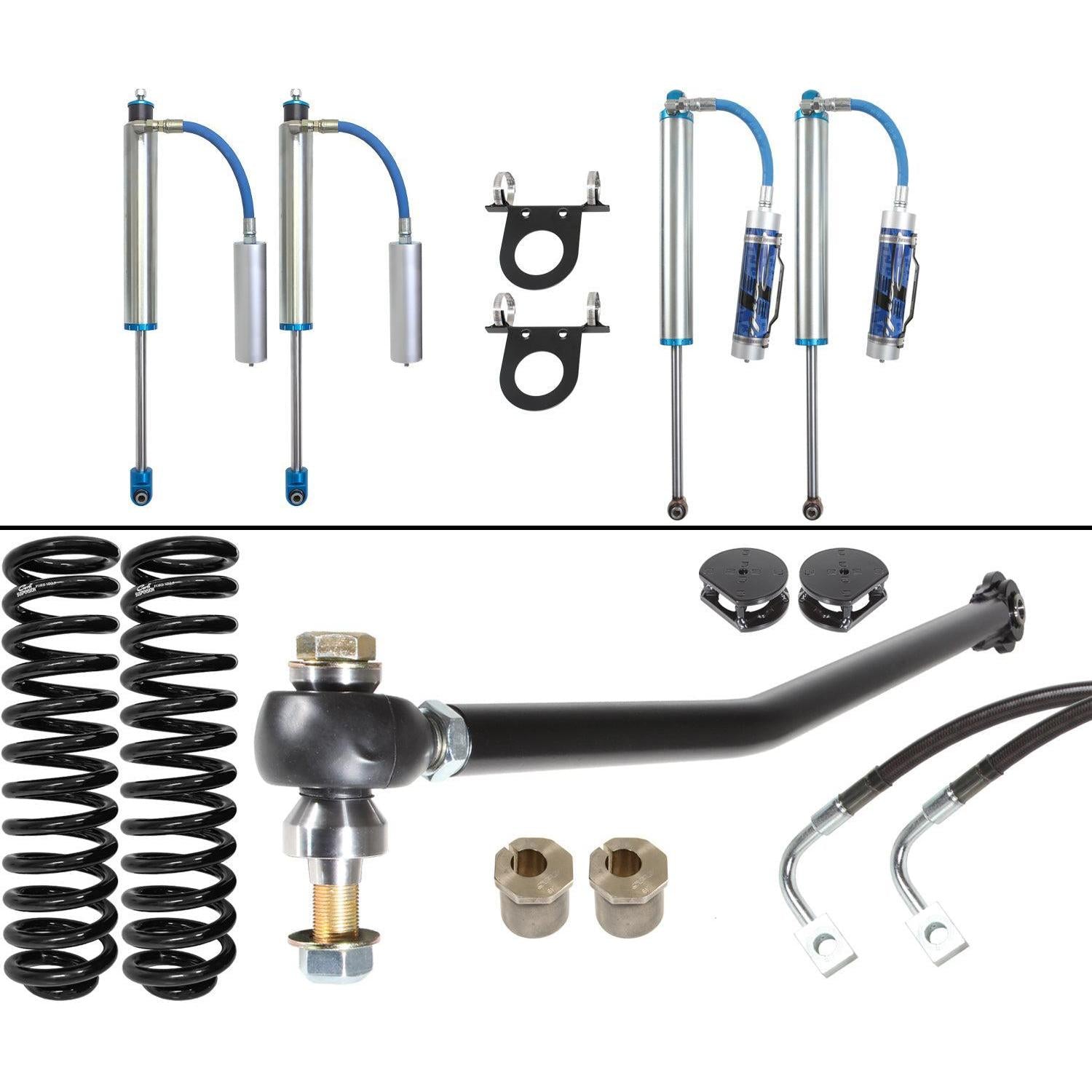

The Pintop 2.5" System is the quintessential Jack-of-all-trades for the gas-powered Super Duty owner, delivering a ride transformation that will convince you this is how the truck should have come from the factory. Centered around custom-tuned King 2.5" remote reservoir shocks, this system erases harshness on the highway while providing the control and bottom-out resistance needed to tackle demanding off-road terrain with confidence. It represents the pinnacle of performance-per-dollar, making it the most popular and beneficial upgrade for the vast majority of drivers.

Features
  • Features custom-tuned King 2.5" Pintop Remote Reservoir shocks for unparalleled control.
  • Provides a 2.5-inch front lift, leveling the stance of your gas-powered Super Duty.

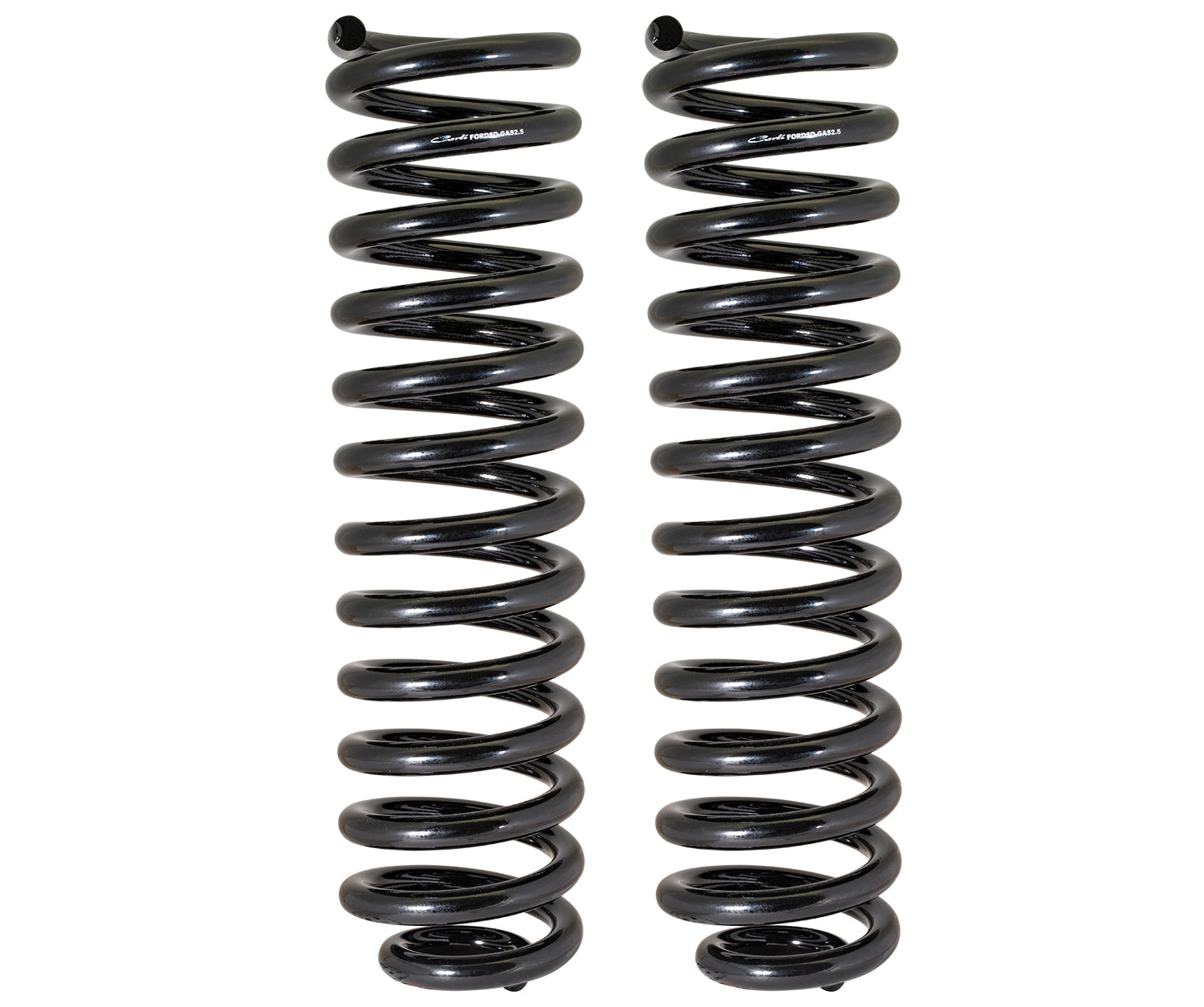

  • Includes linear-rate coil springs specifically engineered for the lighter weight of the gas engine.
  • Corrects suspension geometry with included caster correction shims.
  • Represents the best performance-per-dollar, balancing on-road comfort with off-road capability.
Notes
  • Required Front Sway Bar Option: CS-FSBD-LVL-1723, CS-FEL-LVL-17 or CS-FTSB-LVL17
  • Required Rear Leaf Option: Cs-Fpap-Lvl-17, CS-FFSP-LVL-17, CS-FFSP-LVL-17-HD, CS-FFSP-LVL-17-XHD, CS-FFSP-LVL-17-XXHD

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    CS-FLVL-PT25-17-GAS
  • Vendor
    Carli Suspension
  • Shipping Weight
    168.0 lb
  • Placement
    • Front
  • Lift Height
    2.0-3.0"
  • Rear Lift Height
    2.0-3.0"
  • Front Lift Height
    2.0-3.0"
  • Prop 65
    ⚠️ Warning: Cancer & Reproductive Harm
