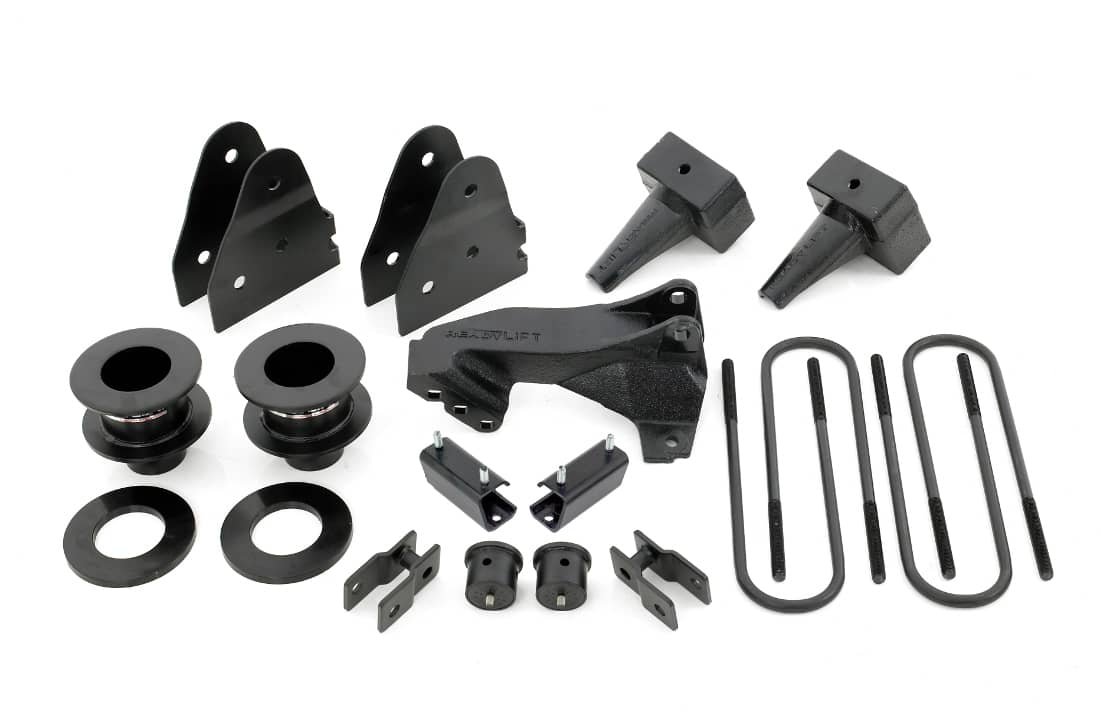

2017-2022 Superduty 3.5" Lift Kit 1 Piece Driveshaft SRW (69-2735)

ReadyLIFT Suspension has engineered the 3.5" SST Lift Kit as a complete solution for 4WD Super Duty trucks with a one-piece drive shaft. This lift kit raises the vehicle 3.5 inches in the front and 2.0 inches in the rear, allowing for wheel and tire combinations up to 37 inches while maintaining the smooth original equipment manufacturer (OEM) ride and drivability. The kit was created to provide a leveling kit height lift that includes rear blocks, allowing the owner to maintain some rake for towing or hauling. The kit includes 3.5 inch coil spring extensions with sound isolators, an OEM-style panhard drop bracket, front bump stop extensions, a pair of radius arm drop brackets, and all needed hardware. The rear lift includes two OEM-style cast rear lift blocks that are tapered for the 1-piece driveshaft and integrated bump stop landings. When used with the maximum size tires, the F250 truck body is raised over 6 inches.

Features

• Raises the truck 3.5 inches in front and 2.0 inches in the rear
• Maintains factory ride and quiet sound
• Includes 3.5 inch coil spring extensions with sound isolators
• Includes two front shock extensions, front bump stop extensions, and extended length front brake line brackets
• Includes radius arm drop brackets and an OEM-style front track bar relocation bracket
• Includes two OEM style cast rear lift blocks (tapered) with longer u-bolts and hardware
• Requires no cutting or drilling
• Allows for 37 inch tall tires (35 inch is ideal for this kit)

Specs

• Front Lift: 3.5 inches (Coil Spacers)
• Rear Lift: 2.0 inches (from OEM block equivalent)
• Rear Block Height: 4 inches (tapered OEM-style cast rear lift blocks with integrated bump stop landings)
• Drive Shaft Compatibility: For 1-piece drive shaft only
• Max Tire Size: 37 inches
• Coil Spring Spacers Material: Fabricated Steel

Compatibility Notes

• Fits Ford F250 Super Duty Single Rear Wheel (SRW) 4WD models from 2017 to 2025.
• Not for use on 2019-2025 F350.
• Not compatible with TREMOR editions.
• 2023-2025 Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket (PN: 67-23210).
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs.

Notes

• ReadyLIFT Smart Suspension Technology is used to make this kit very user friendly to install.
• The product is guaranteed for life against manufacturing defects.
• Your vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
