2017-2022 Superduty 3.5" Lift Kit 2 Piece Driveshaft (69-2736)

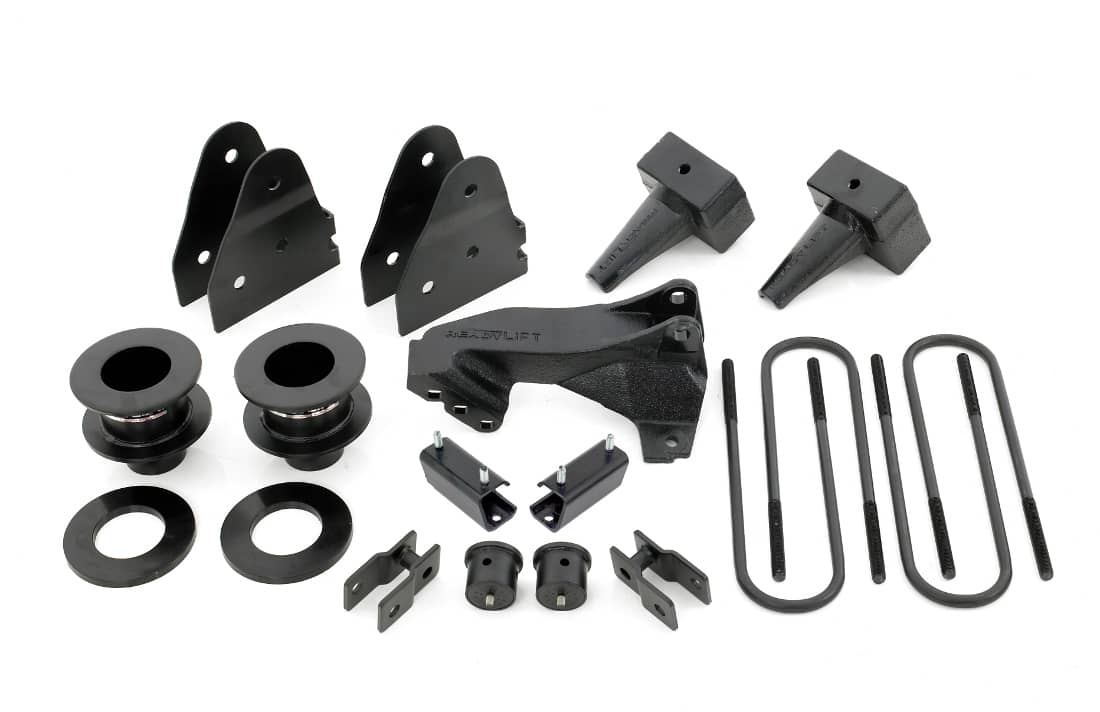

ReadyLIFT Suspension has engineered the 3.5" SST Lift Kit as a complete solution for 4WD Super Duty trucks with a two-piece drive shaft. This lift kit raises the front of the vehicle 3.5 inches and the rear 2.0 inches, allowing for wheel and tire combinations up to 37 inches while maintaining the smooth original equipment manufacturer (OEM) ride and drivability. The kit was created due to customer demand for a leveling kit height lift that includes rear blocks so the owner can maintain some rake for towing or hauling. The kit includes 3.5 inch coil spring extensions with sound isolators, an OEM-style panhard drop bracket, front bump stop extensions, a pair of radius arm drop brackets, and all needed hardware. For the rear, it includes 4 inch OEM-equivalent rear blocks with integrated bump stop landings, along with a carrier bearing drop spacer to correct the driveshaft angle. The F250 truck body is raised over 6 inches when the maximum size tires are used.

Features

• Max Lift: 3.5 inches Front / 1.0 inch Rear (The rear is raised 2.0 inches, the block itself is 4 inches)
• Allows for wheel and tire combinations up to 37 inches (35 inches is the ideal size)
• Maintains the smooth OEM ride and drivability
• Includes 3.5 inch coil spring extensions with sound isolators
• Includes front bump stop extensions, front shock extensions, and extended length front brake line brackets
• Includes radius arm drop brackets and an OEM-style front track bar relocation bracket
• Includes two OEM style cast rear lift blocks with longer u-bolts and a carrier bearing drop spacer
• Requires no cutting or drilling
• Comes with all needed hardware

Specs

• Front Lift: 3.5 inches (Coil Spacers)
• Rear Lift: 2.0 inches (from OEM block equivalent)
• Rear Block Height: 4 inches (OEM-equivalent rear blocks with integrated bump stop landings)
• Drive Shaft Compatibility: For 2-piece drive shaft only
• Max Tire Size: 37 inches

Compatibility Notes

• Fits Ford F250/F350 SuperDuty 4WD trucks from 2017 to 2022.
• Recommended wheel: 17 inches and up x 9 inches wide, +25 offset / 6 inches backspacing (minor trimming of the front valance may be necessary).
• Note: Not compatible with TREMOR editions.
• Note: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs.
• Note: 2020-2022 MY Super Duty may sit slightly taller in the rear than prior model years due to block height variations from the Ford factory.

Notes

• The product is guaranteed for life against manufacturing defects.
• Your vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
