2017-2022 Superduty 6.5" Lift Kit w/ Bilstein 5100 Shocks 2 Piece Drive Shaft (49-2763)

The ReadyLIFT 6.5 inch Big Lift Kit for 2017 to 2022 Ford Super Duty Diesel trucks is a comprehensive suspension overhaul designed for maximum height and uncompromised performance. This system is specifically engineered for trucks with a two piece drive shaft, including a precision driveline relocation system to eliminate vibration. Paired with Bilstein 5100 series shocks, this kit provides a commanding stance and the clearance needed for 38 inch tires while maintaining the heavy duty capabilities of the F250 and F350 platform.

Features

• Radius arm drop brackets correct caster geometry to maintain factory steering feel and stability.
• Bilstein 5100 series monotube shocks provide superior damping and fade free performance on and off road.
• Driveline relocation system specifically designed for two piece drive shafts ensures smooth operation.
• Track bar relocation bracket keeps the front axle centered under the truck for proper alignment.
• Dropped pitman arm is included to maintain correct steering angles and minimize bump steer.
• Fabricated steel rear lift blocks provide a leveled stance while preserving towing and hauling capacity.
• Sway bar drop brackets and bump stop extensions ensure proper suspension travel and component clearance.
• Extended brake line brackets are provided to allow for full suspension articulation without tension.

Notes

• This kit is designed specifically for trucks equipped with a two piece drive shaft only.
• Vehicle alignment and headlamp aim must be adjusted following the installation for safety.
• The use of factory wheels with oversized tires may require minor trimming of the inner fender liner.
• Professional installation is highly recommended due to the complexity of the driveline and suspension geometry.

Compatibility Notes

• Fits 2017 to 2022 Ford Super Duty F250 and F350 4WD Diesel trucks.
• Compatible with Single Rear Wheel (SRW) models with a two piece drive shaft.
• Not compatible with gasoline powered trucks or 2WD models.
• Tremor models will gain less than the stated 6.5 inches of lift over their factory height.

Tire Fitment

• Maximum Tire Diameter: 38 inches.
• Recommended Setup: 38x13.50 tires on a 9 inch wide wheel with a 0 offset.
• Trimming of the front valance and inner fender may be required for full clearance with 38 inch tires.

Shock Specs

• Shock Type: Bilstein 5100 Series Monotube.
• Design: 46mm working piston with self adjusting digressive valving for instant terrain adaptation.
• Construction: High pressure nitrogen gas charged monotube design for consistent fade free performance.
• Finish: Zinc plated bodies with a clear coat finish for high resistance to corrosion and off road debris.

Specs

• Front Lift Height: 6.5 inches.
• Rear Lift Height: 5 inches.

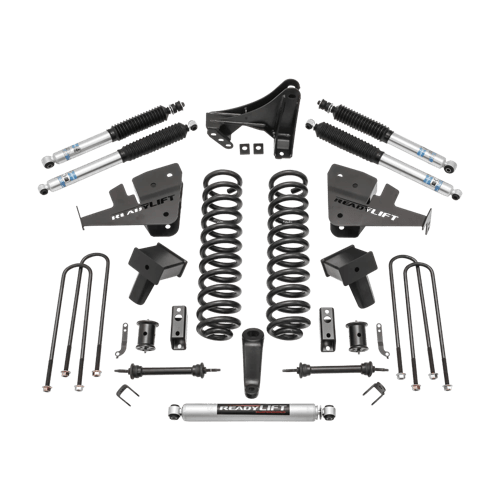

• Kit Contents: Front Coil Springs, Bilstein 5100 Shocks, Radius Arm Drop Brackets, Dropped Pitman Arm, Track Bar Relocation Bracket, Driveline Relocation Kit, Sway Bar Drops, Bump Stop Extensions, and Fabricated Rear Blocks.
