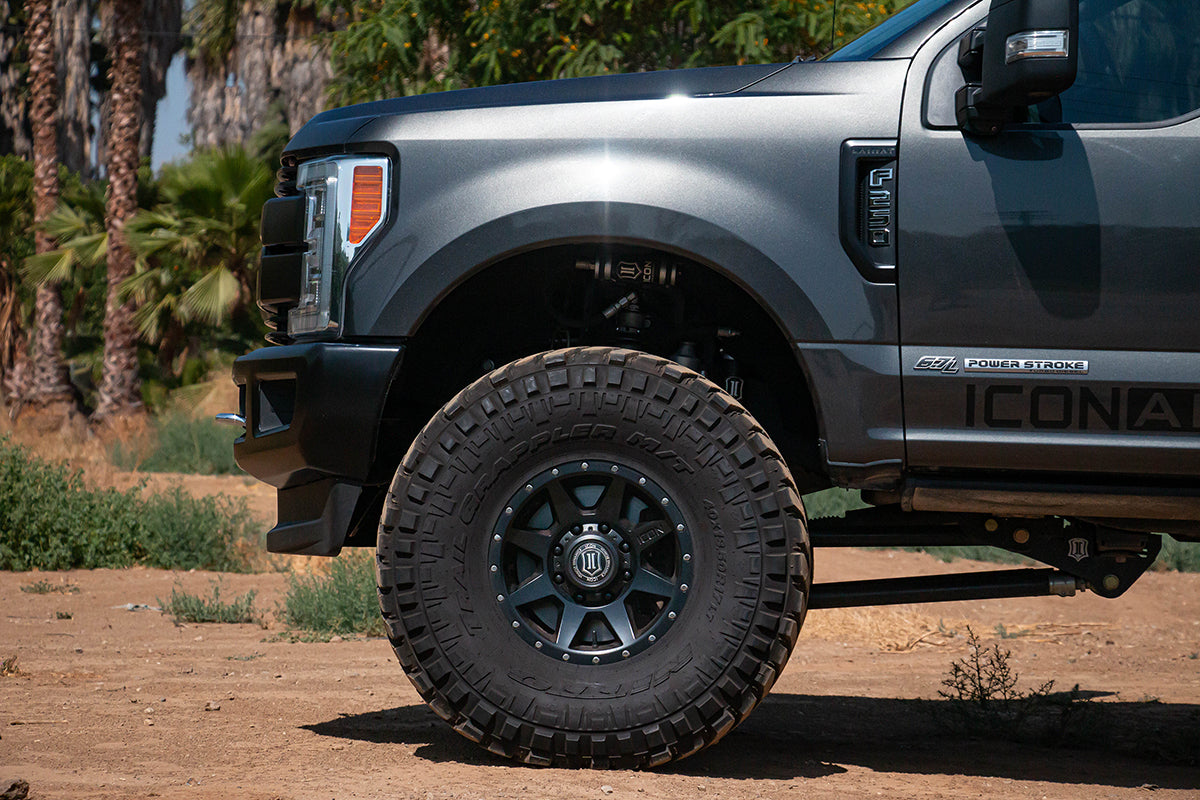

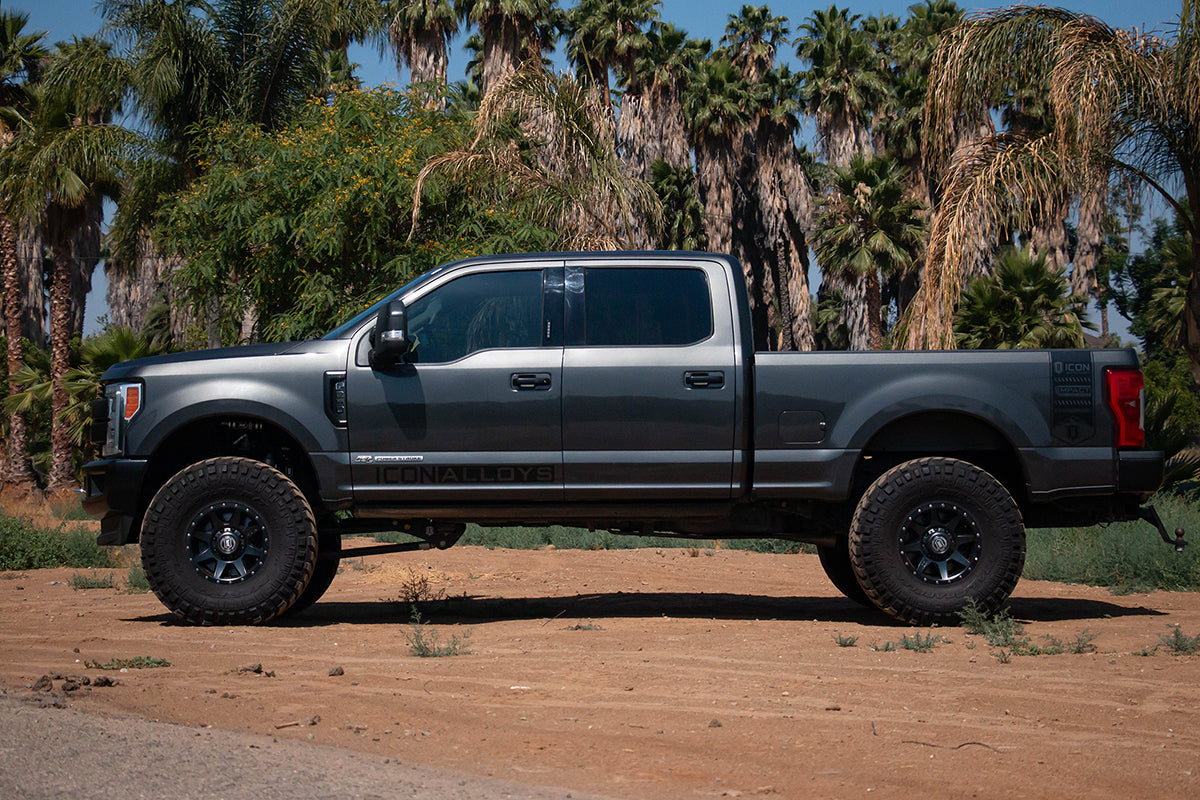

2017-2022 Superduty Front and Rear Lift Kit (ICOK63155)

Level up your 2017-2022 Superduty with this complete ICON suspension system. 4-5.5" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
• Increased wheel travel and ride quality over stock
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Springs Are Rated For Diesel Engines Only
• This System May Require A Carrier Bearing Drop Bracket Kit (33700)
• 7" Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms.
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• Secondary Shock Options Available, Contact ICON For More Details
• 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
• 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock
• 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
• Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
• Ships in multiple boxes

Manufacturer Description

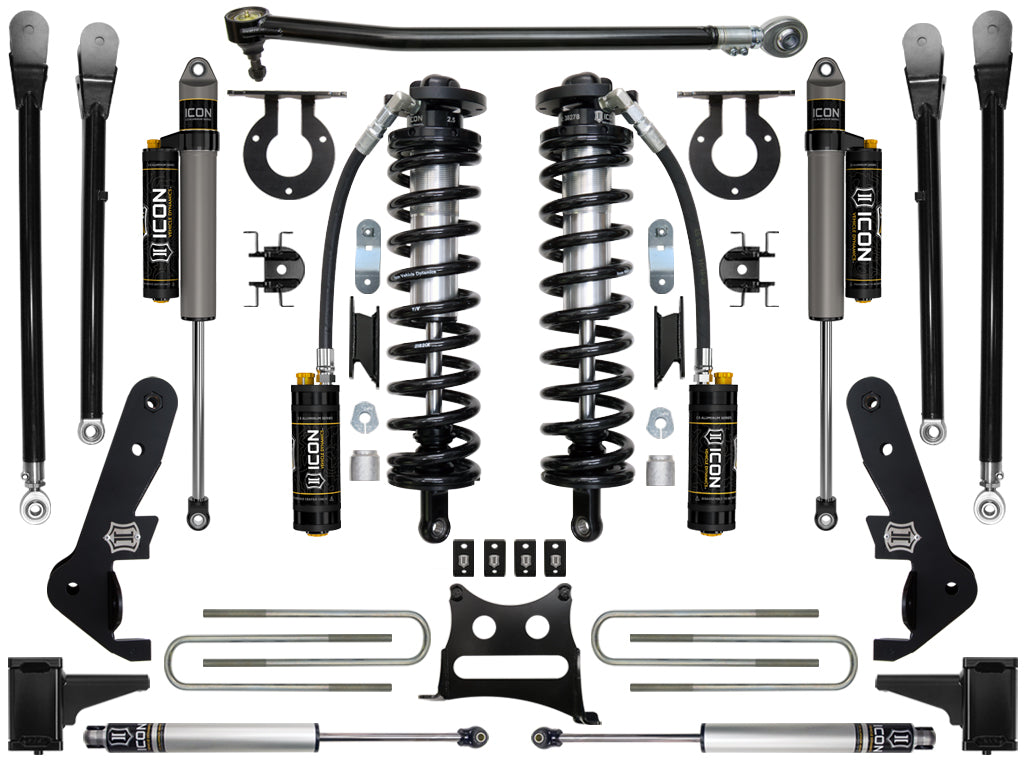

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5" Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
