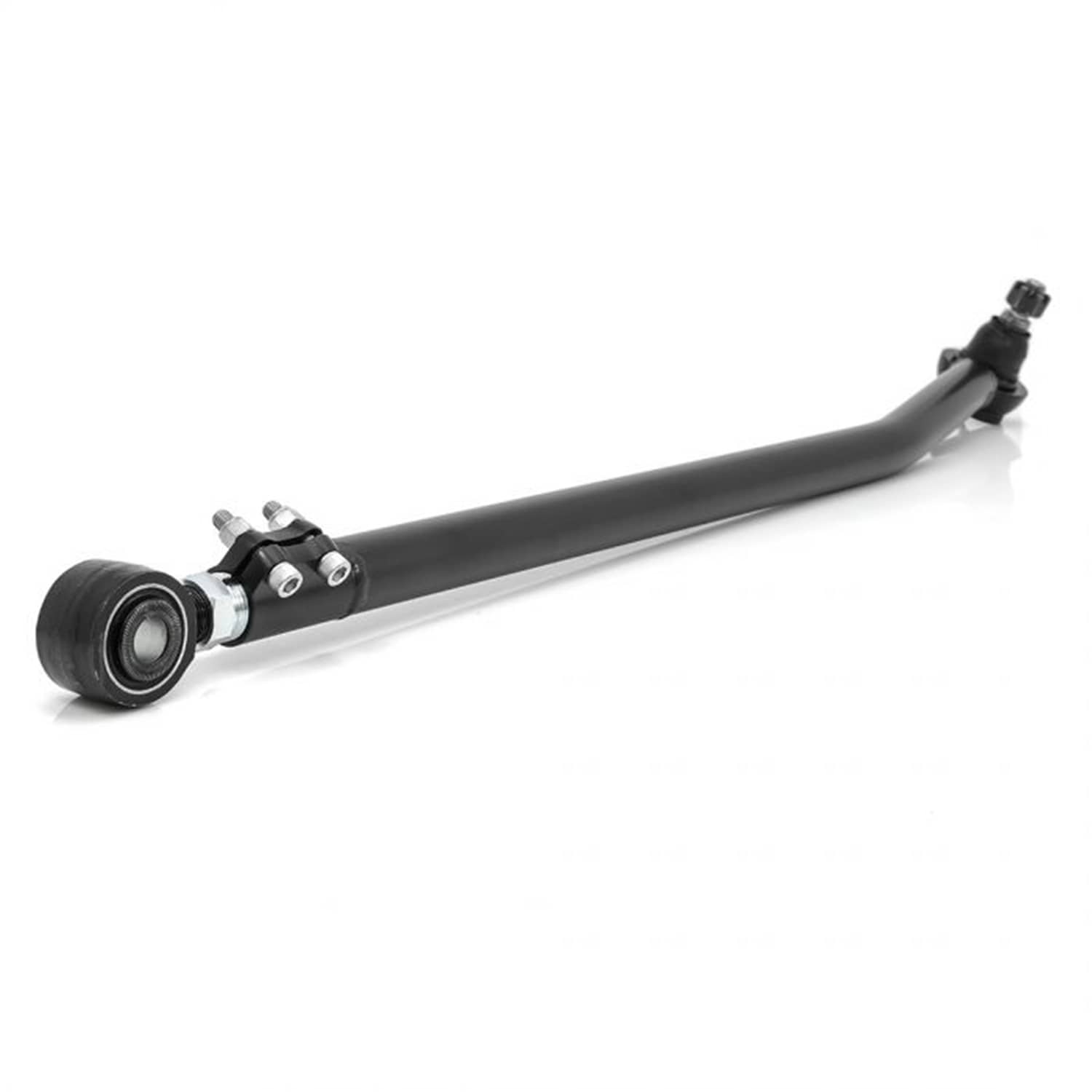

2017-2025 Superduty 4WD Front Track Bar 0-5" Lift (77-2006)

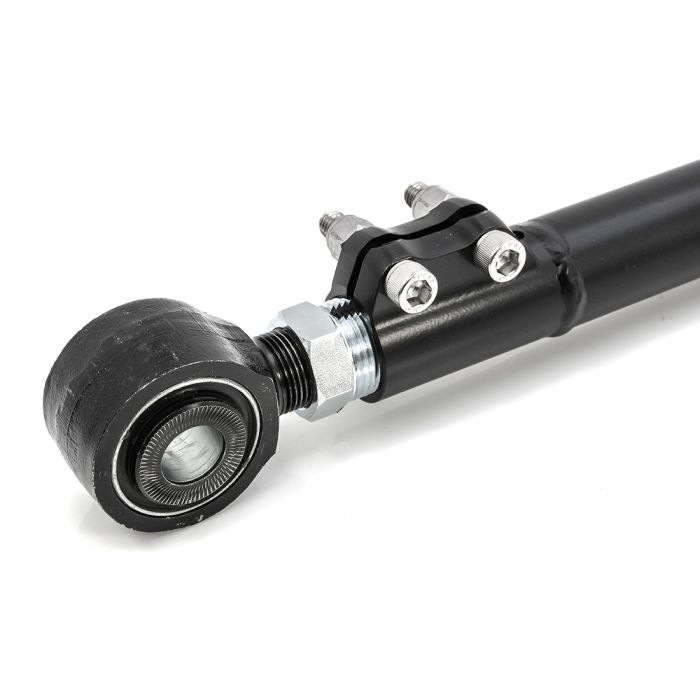

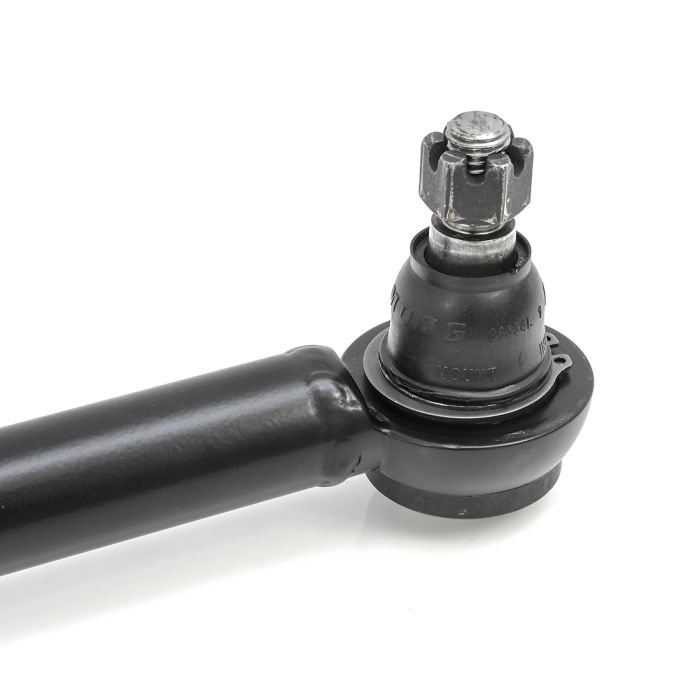

ReadyLIFT offers an adjustable heavy-duty front track bar that is extremely strong and provides a wide range of solutions to remedy many of the common issues with lifted or leveled applications. The track bar is constructed from thick 1.5"-3/8-wall DOM tube steel with CNC-machined 4140 Chromoly ends. On the frame side of the bar, a threaded forged housing with a maintenance-free heavy-duty bushing screws into a twin-pinch on-truck adjuster, allowing you to adjust the track bar to the desired length while still on the vehicle. On the axle side, the track bar features a heavy-duty Moog ball joint with a corrected angle that works excellently on stock, leveled, or lifted applications. This exciting new front track bar is engineered to be a direct bolt-on replacement.

Features

• Heavy Duty Front Track Bar designed for superior strength
• Constructed from 1.5" 3/8-wall DOM tube steel with CNC machined 4140 ends
• Features a twin-pinch adjuster for on-truck adjustments
• Includes a heavy-duty Moog ball joint with a corrected angle
• Direct bolt-on replacement for Super Duty trucks with 0" to 5" of front lift
• The strongest solution on the market

Specs

• Construction Material: 1.5" 3/8-wall DOM tube steel with CNC machined 4140 Chromoly ends
• Lift Compatibility: 0" to 5" of Front Lift
• Ball Joint: Heavy-duty Moog ball joint

Compatibility Notes

• Fits Ford Super Duty F-250/350 4WD Trucks from 2017 to 2025.
• Does NOT fit F450 Super Duty.
• For trucks with 6" to 8" of lift, this track bar will work when using a track bar relocation bracket (found in ReadyLIFT 6.5" and 8" lift kits).

Notes

• Your vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
• The ball joint part number used is Moog K500262.
