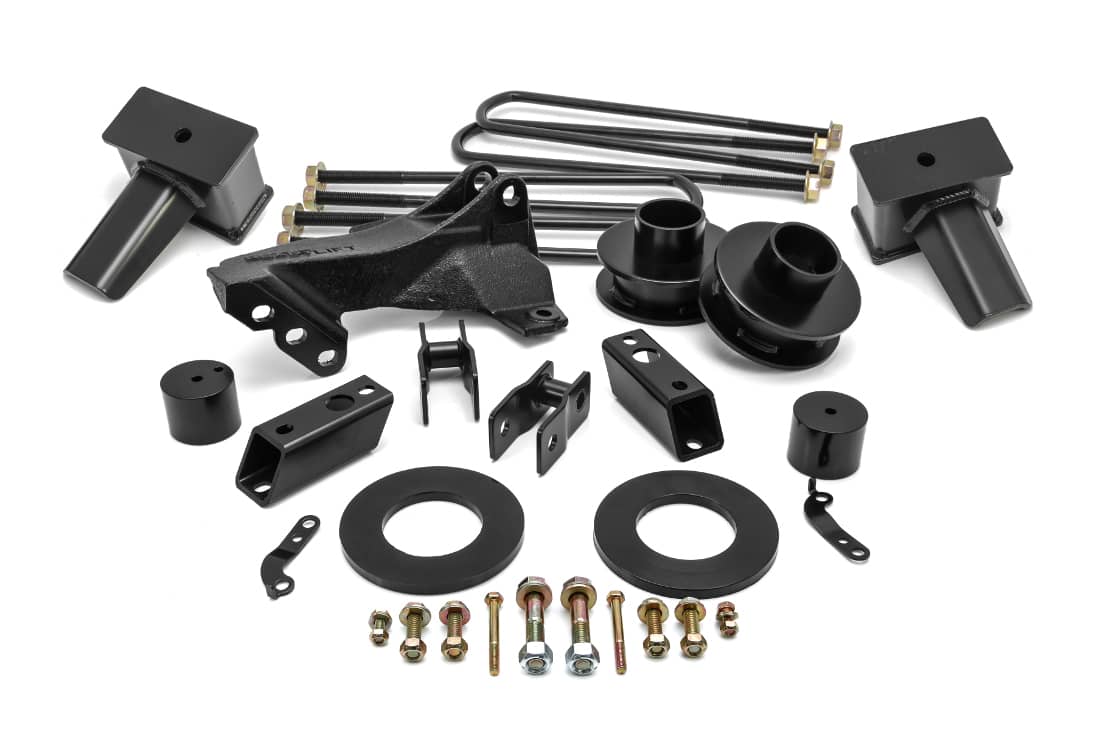

2017-2025 Superduty 4WD SRW 2.5" Lift Kit with 2-Piece Driveshaft (69-2741)

The ReadyLIFT 2.5" SST Lift Kit provides a complete system to raise your single rear wheel Super Duty 2.5 inches in the front and 2.0 inches in the rear. This great system was created to provide a leveling kit height lift that includes rear blocks, allowing the owner to maintain some factory rake for towing or hauling. The popular 2.5 inch coil spacers and sound isolators retain the great original equipment manufacturer (OEM) ride and quiet sound. The kit includes shock extensions, allowing you to retain the use of your new front shocks, along with sway bar drop mount spacers, bump stop extensions, and a provided carrier bearing spacer to adjust your driveshaft angle as needed. An OEM-style front track bar relocation bracket is included for improved steering quality. This strong 2.5 inch SST Lift kit is a safe, easy way to lift your Super Duty, requires no cutting or drilling, and is for use with trucks with a 2-piece drive shaft.

Features

• Raises the truck 2.5 inches in front and 2.0 inches in the rear
• Maintains factory ride and quiet sound
• Includes 2.5 inch coil spring spacers with sound isolators
• Includes sway bar drop mount spacers, bump stop extensions, and front shock extensions
• Includes OEM-style front track bar relocation bracket for improved steering quality
• Includes a carrier bearing spacer to adjust driveshaft angle
• Requires no cutting or drilling
• Allows for up to 37 inch tall tires (35 inch is ideal for this kit)

Specs

• Front Lift: 2.5 inches (Coil Spacers)
• Rear Lift: 2.0 inches (Fabricated steel rear lift blocks - 4 inch block height)
• Drive Shaft Compatibility: For 2-piece drive shaft only
• Max Tire Size: 37 inches (35 inch is ideal)

Compatibility Notes

• Fits Ford F250/F350 Super Duty Single Rear Wheel (SRW) 4WD models from 2017 to 2025.
• NOTE: Not compatible with TREMOR editions.
• NOTE: 2023-2025 Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket (PN: 67-23210).
• NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.
• NOTE: 2020-2025 MY Super Duty may sit slightly taller in the rear than prior model years due to block height variations from the Ford factory.

Notes

• ReadyLIFT Smart Suspension Technology is used to make this kit very user friendly to install.
• The product is guaranteed for life against manufacturing defects.
• The vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
