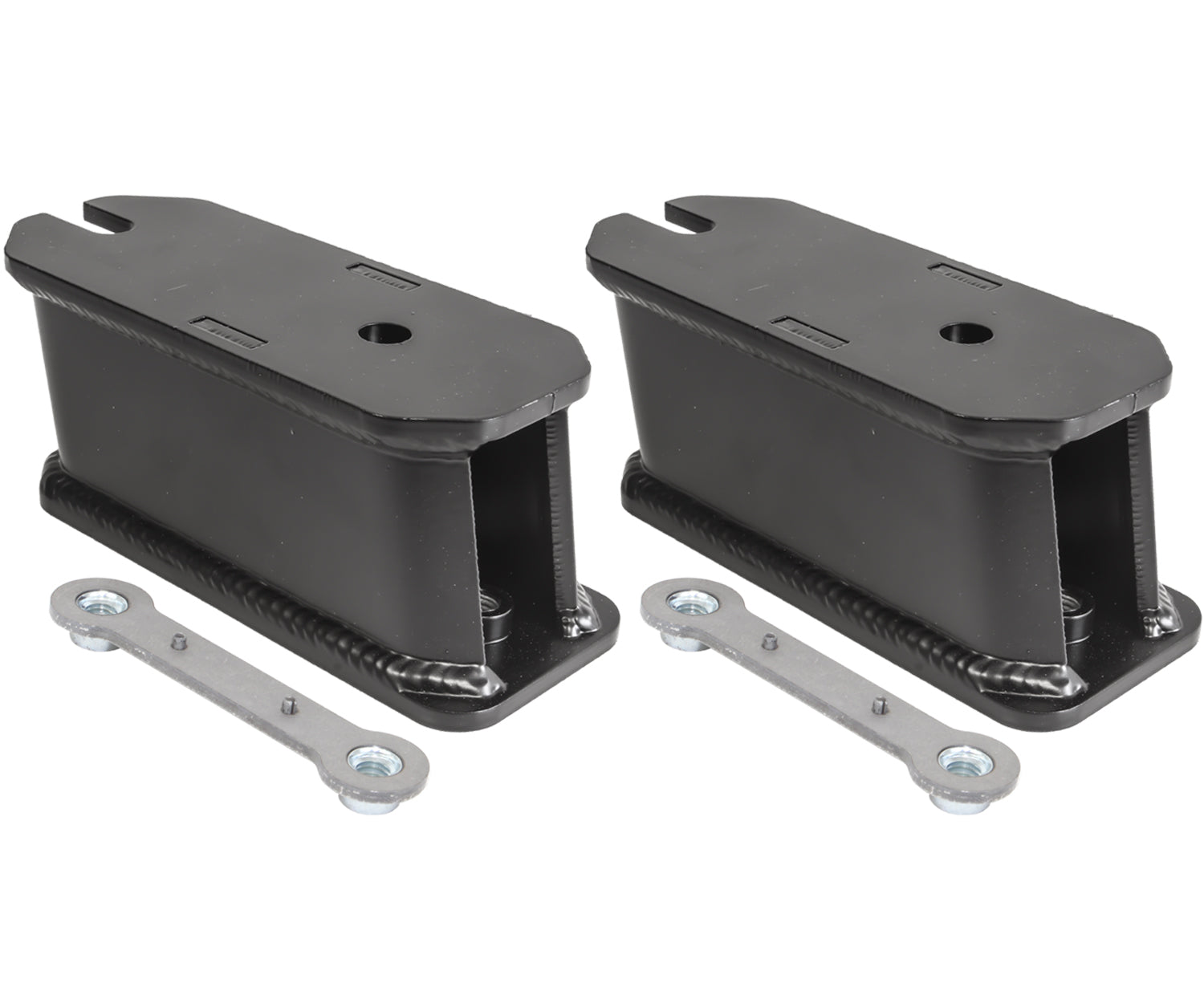

2017-2026 Super Duty 4x4 Sway Bar Frame Drop Bracket 2.5" (CS-FSBD-LVL-1723)

When you level your Super Duty, the factory sway bar is pulled down into a bind, negatively impacting its performance and potentially causing damage. Carli's Sway Bar Drop Brackets are the simple, robust solution, lowering the sway bar's frame mounting points to restore the correct geometry. This ensures your sway bar can function as intended, providing optimal stability and articulation without binding.

Part Number: CS-FSBD-LVL-1723

• Corrects sway bar operating angle on trucks with a 2.5-inch leveling kit.
• Prevents binding to restore proper sway bar function and articulation.
• Fabricated from heavy-duty 1/4-inch American steel for maximum strength.
• Finished with a durable powder coat to resist corrosion.
• 100% bolt-on installation for a simple, effective geometry solution.

From Carli Suspension

2017-19: The 2.5″ Carli System will use either the CS-FSBD-LVL-1723 (Drop brackets) OR the CS-FEL-LVL-17 (Stainless Sway Bar End Links). The drop brackets will be more cost-effective and maintain the factory sway bar links. The Carli Stainless Sway bar links are a far more robust, fully serviceable and rebuildable option that won’t interfere with plow brackets.

2020+: The 3.5″ Carli System will use either the CS-FSBD-LVL-1723  (Drop brackets) OR the CS-FELKIT-LVL-20 (Stainless Sway Bar End Links + Short Drop-Forward Block). The drop brackets will be more cost-effective and maintain the factory sway bar links. The Carli Stainless Sway bar links are a far more robust, fully serviceable and rebuildable. The included drop brackets perfectly position the Carli Sway bar links to cycle the extended travel range. We do not currently have an option that’s snow-plow compatible for the 2020+.
