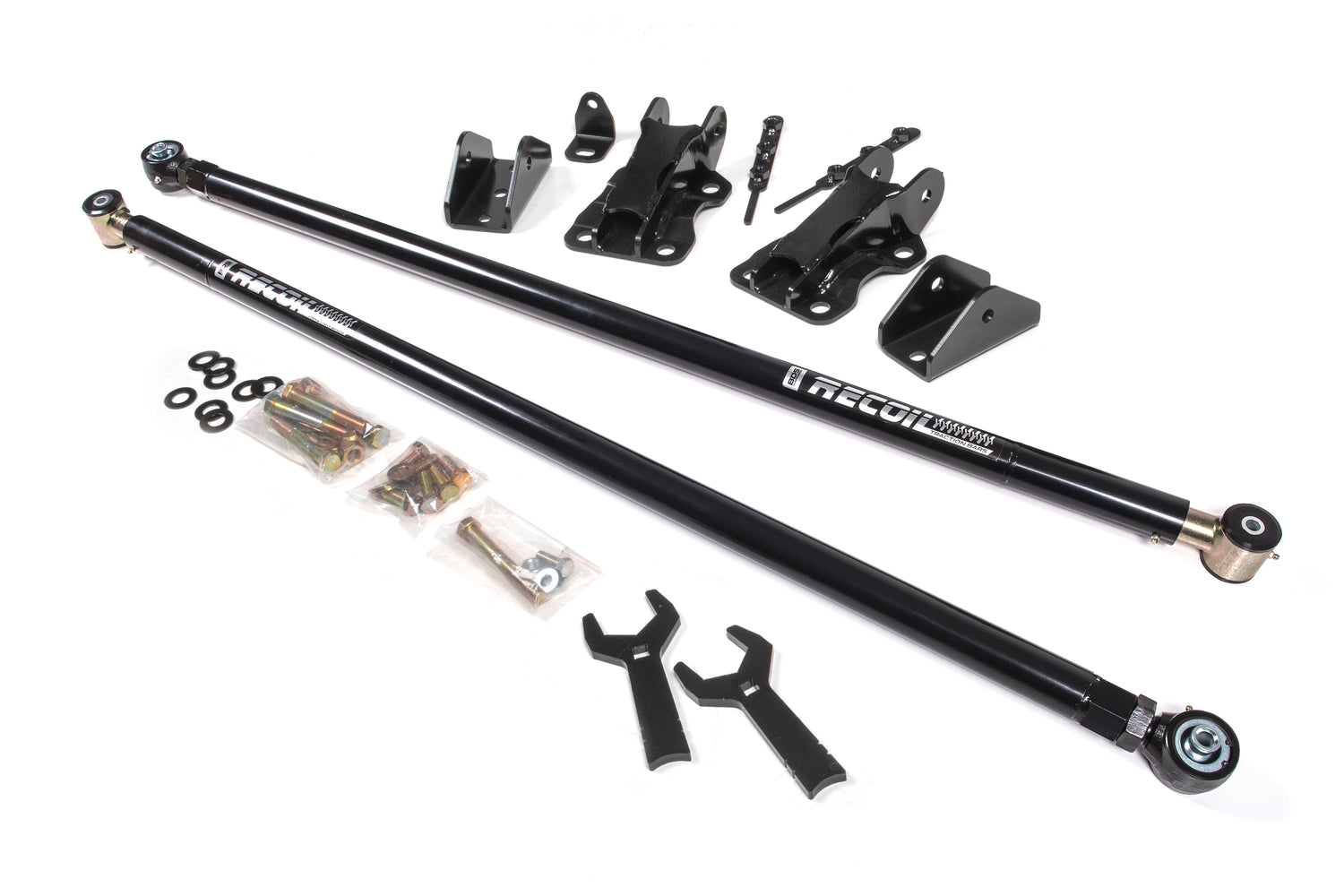

2017-2025 F-250/F-350 4.5” Recoil Traction Bar Kit (BDS2312)

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design that will not bind throughout the full range of wheel travel, allowing for unrestricted suspension articulation
• Heavy wall construction with fabricated 2-inch OD x 3/16-inch wall steel tubing
• Equipped with BDS's ultra-durable large-forged flex end and jam nut for secure axle mounting
• Flex ends capable of up to 15 degrees of misalignment in either direction for durability and flexibility
• Polyurethane bushings and UHMW polyurethane bearings enhance performance and longevity
• Designed specifically for 2017-2025 Ford F250, F350, and F450 Super Duty 4WD models with 4.5 inch diameter axles
• Can be installed with a range of lift heights
• Aftermarket suspension traction bar bracket engineered by BDS Suspension

The 2017-2025 F-250/F-350 4.5” Recoil Traction Bar Kit is engineered to improve traction on your Ford Super Duty 4WD trucks equipped with 4.5" diameter axles. This kit features a full floating design that eliminates binding throughout wheel travel, optimizing suspension articulation. Constructed with robust steel tubing and incorporating internal dual-stage compression springs, it allows for adjustable control of axle wrap while maintaining durability and performance. Ideal for lifted trucks, this traction bar bracket enhances axle stability without compromising wheel movement.

Improve traction on your 2017-2025 Ford F250, F350, and F450 Super Duty 4WD models (with 4.5 inch diameter axle) using the BDS Recoil Traction Bar Mounting Kit. Its heavy wall construction includes internal compression springs that can be adjusted while installed, allowing precise control of axle wrap. The full float design guarantees bind-free performance across all wheel travel ranges and supports a variety of lift heights.

This kit is fabricated from 2-inch OD x 3/16-inch wall steel tubing featuring a threaded bung welded toward the axle and a CNC-machined end at the frame for precision fitment. The axle mount utilizes BDS's ultra-durable, large-forged flex end combined with a jam nut for secure attachment. The forged housing is equipped with a large 1-1/4 inch x 12 threaded shank, a single-sided snap ring, and a one-piece flex ball, permitting up to 15 degrees of misalignment in either direction — enhancing durability under extreme conditions.

At the frame end, the traction bar employs a durometer-specific polyurethane bushing allowing the bar to free float, supported by dual-stage internal compression springs and UHMW polyurethane bearings. This design ensures smooth operation and longevity while controlling axle wrap effectively.

Compatibility notes: Suitable for various configurations of Ford Super Duty trucks including 2 or 4 door models with RWD or 4WD drive types and gasoline or diesel fuel options.
