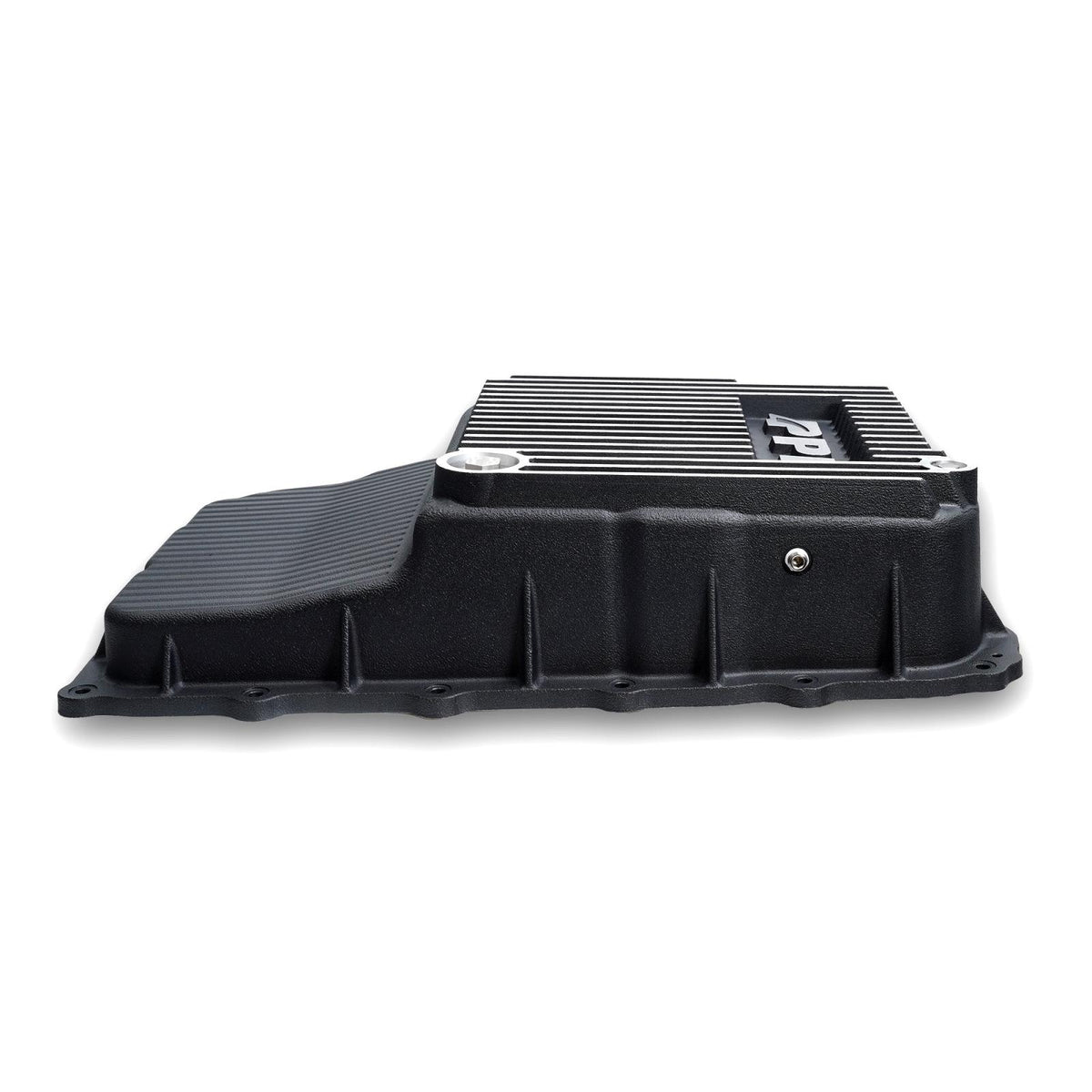

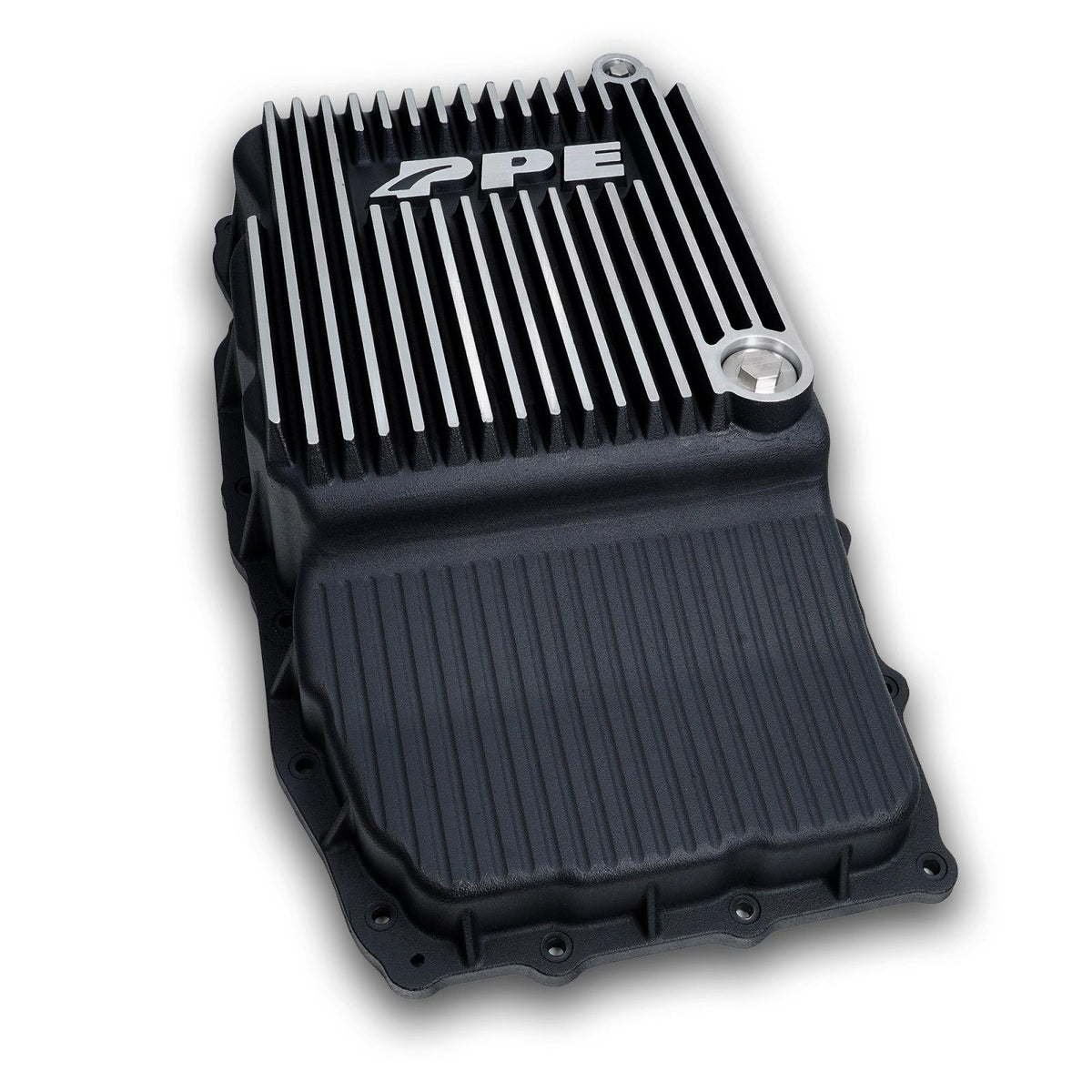

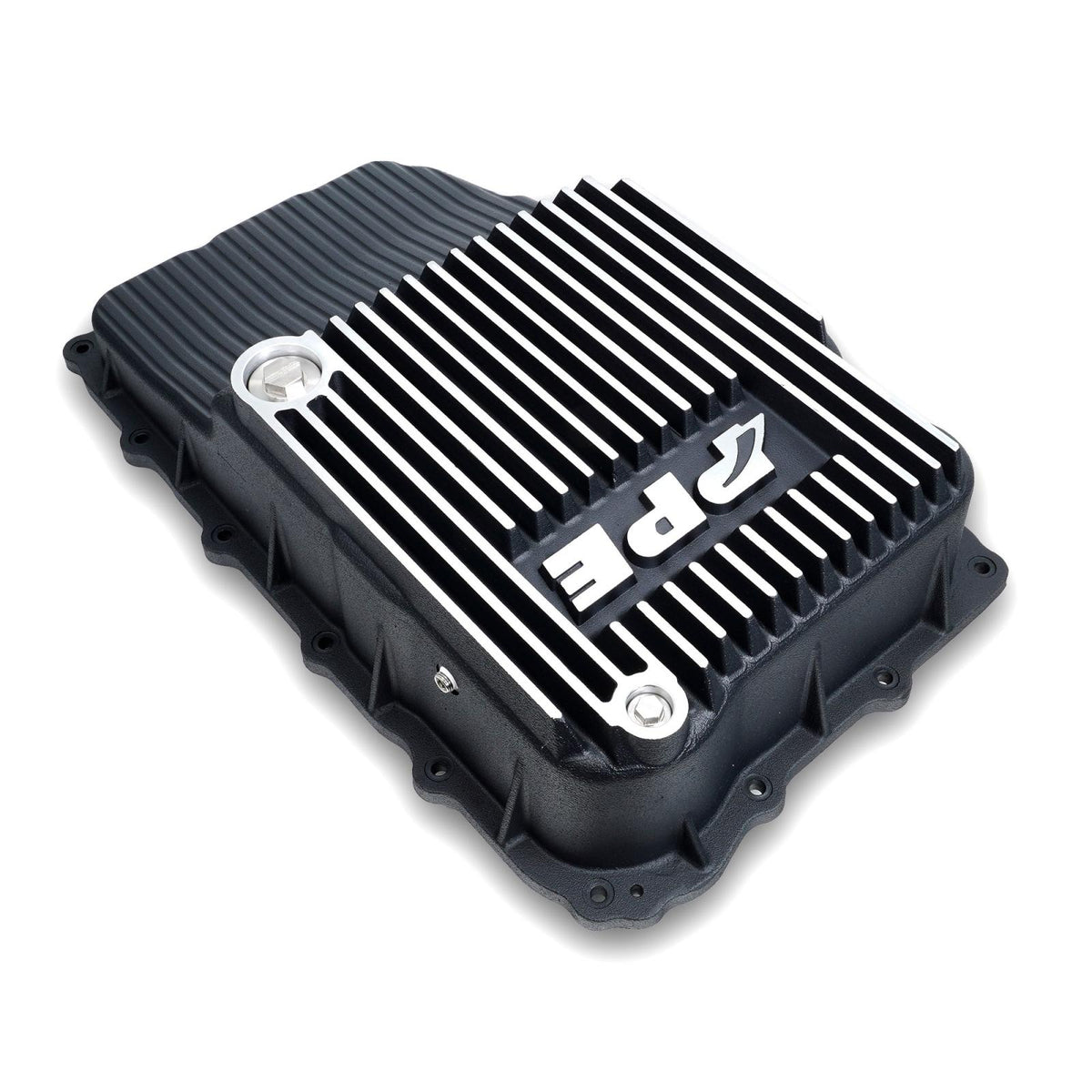

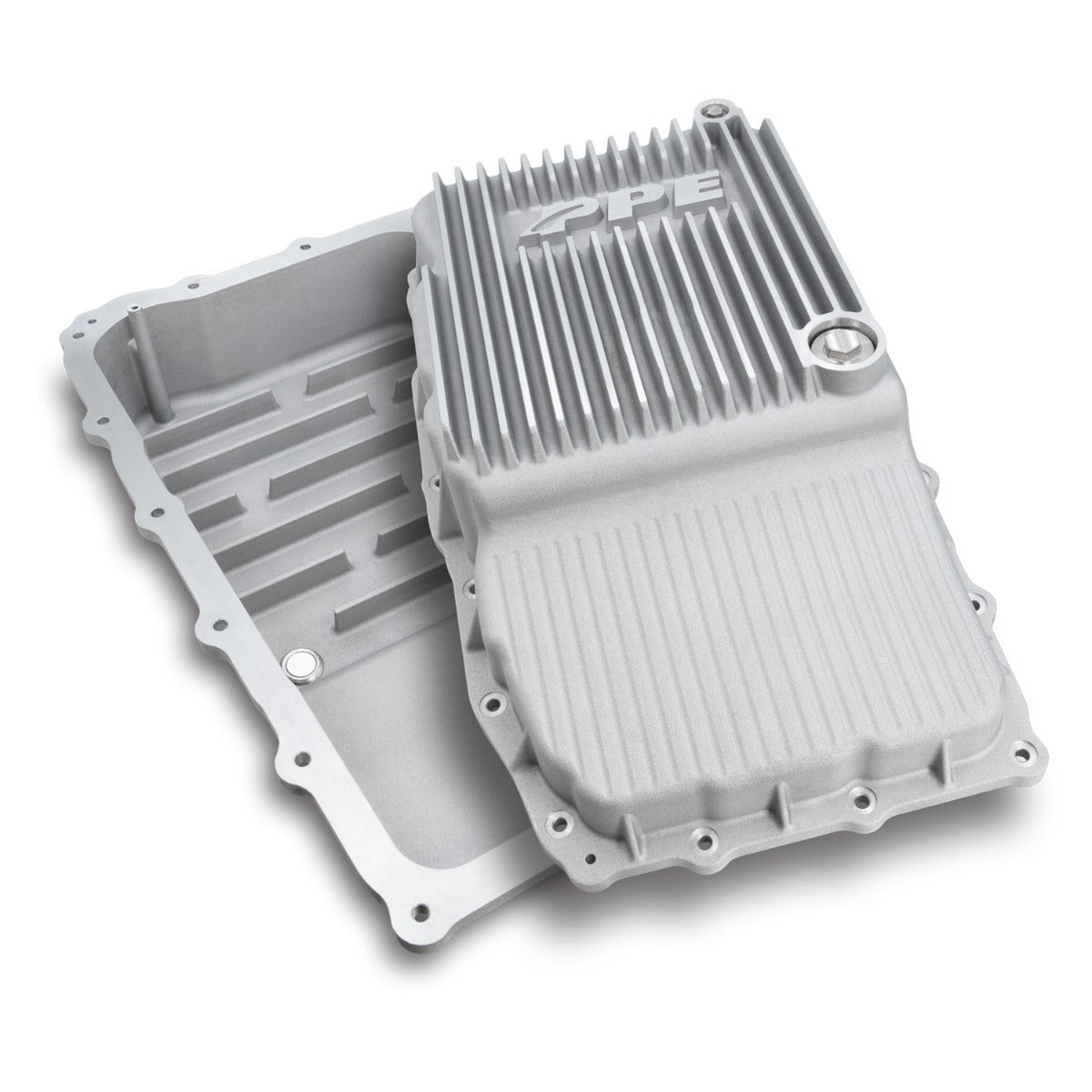

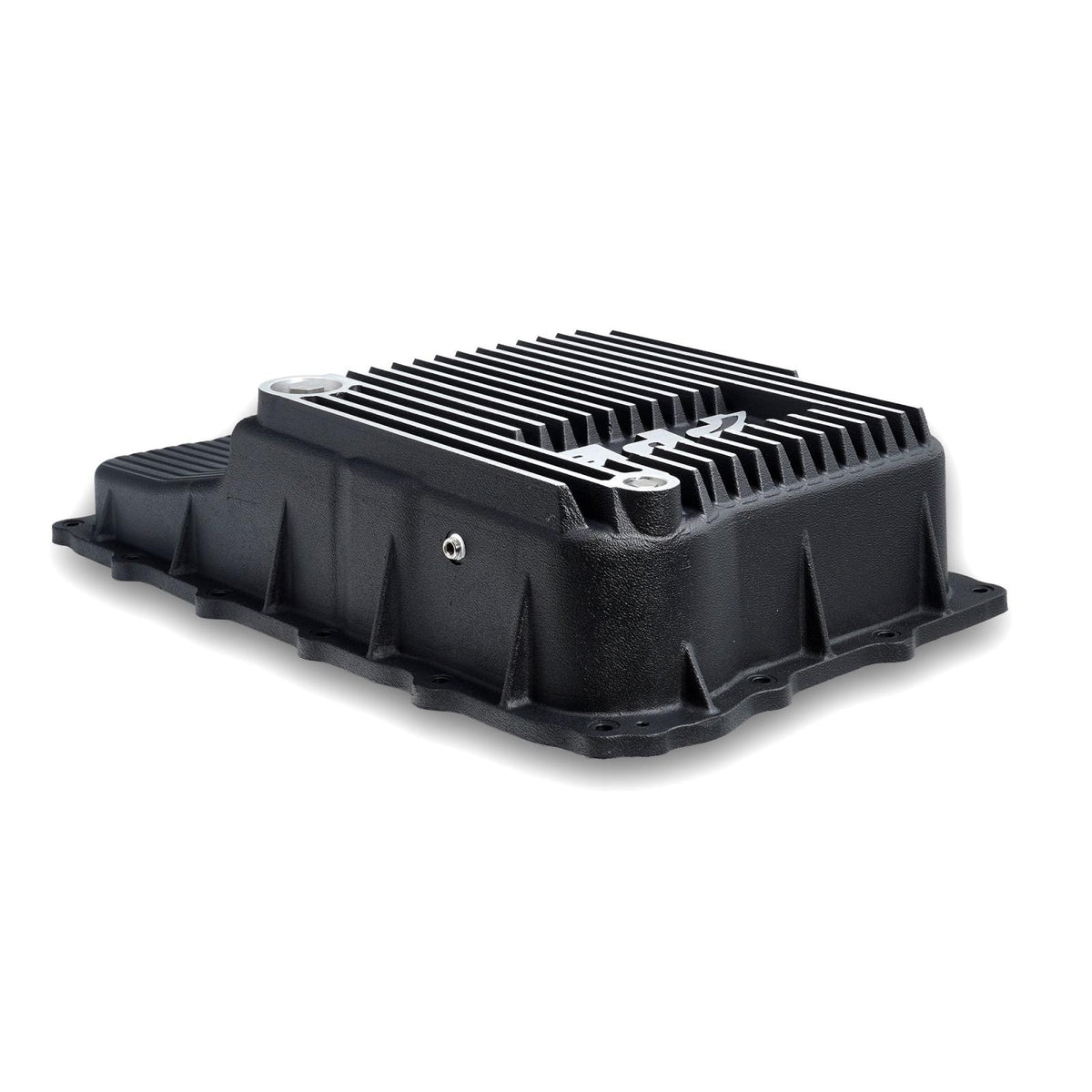

2018-2021 w/ 10L80 Transmission Heavy-Duty Cast Aluminum Transmission Pan Raw (128051200)

Description

PPEs Heavy-Duty 10L80 Transmission Pan holds an extra 2 quarts of fluid and is cast from high-quality A356.0-T6 aluminum alloy for strength and optimal heat dissipation.

The PPE Heavy-Duty Aluminum Transmission Pan also includes an integrated fluid level check tube, sealed by PPE 1/2-inch stainless steel magnet-equipped plug.  The drain port features a one-inch, high-power Neodymium magnet-equipped stainless steel drain plug. Both plugs catch and hold harmful ferrous particles and keep them out of the transmission internals.

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 2 quarts for higher thermal capacity

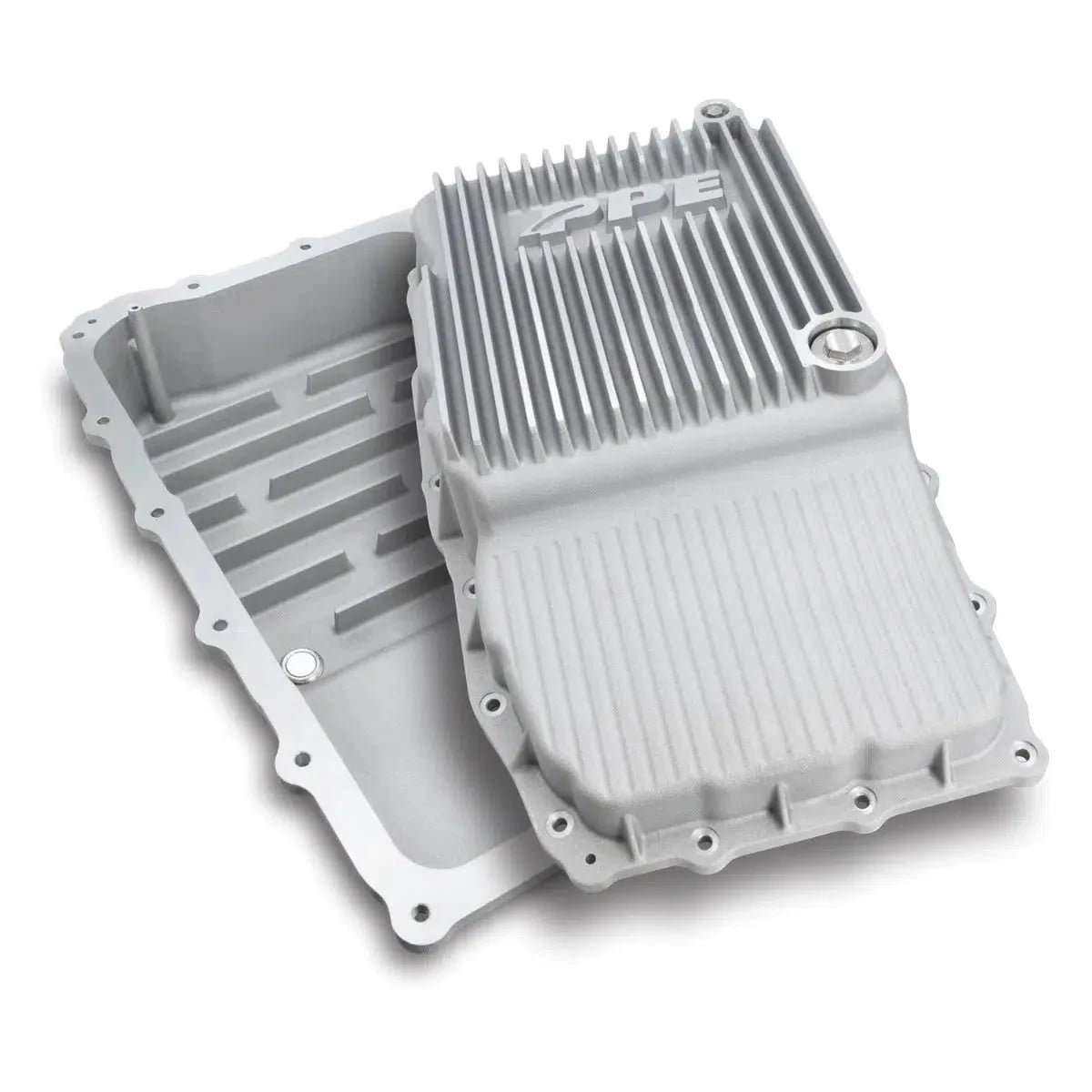

• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance

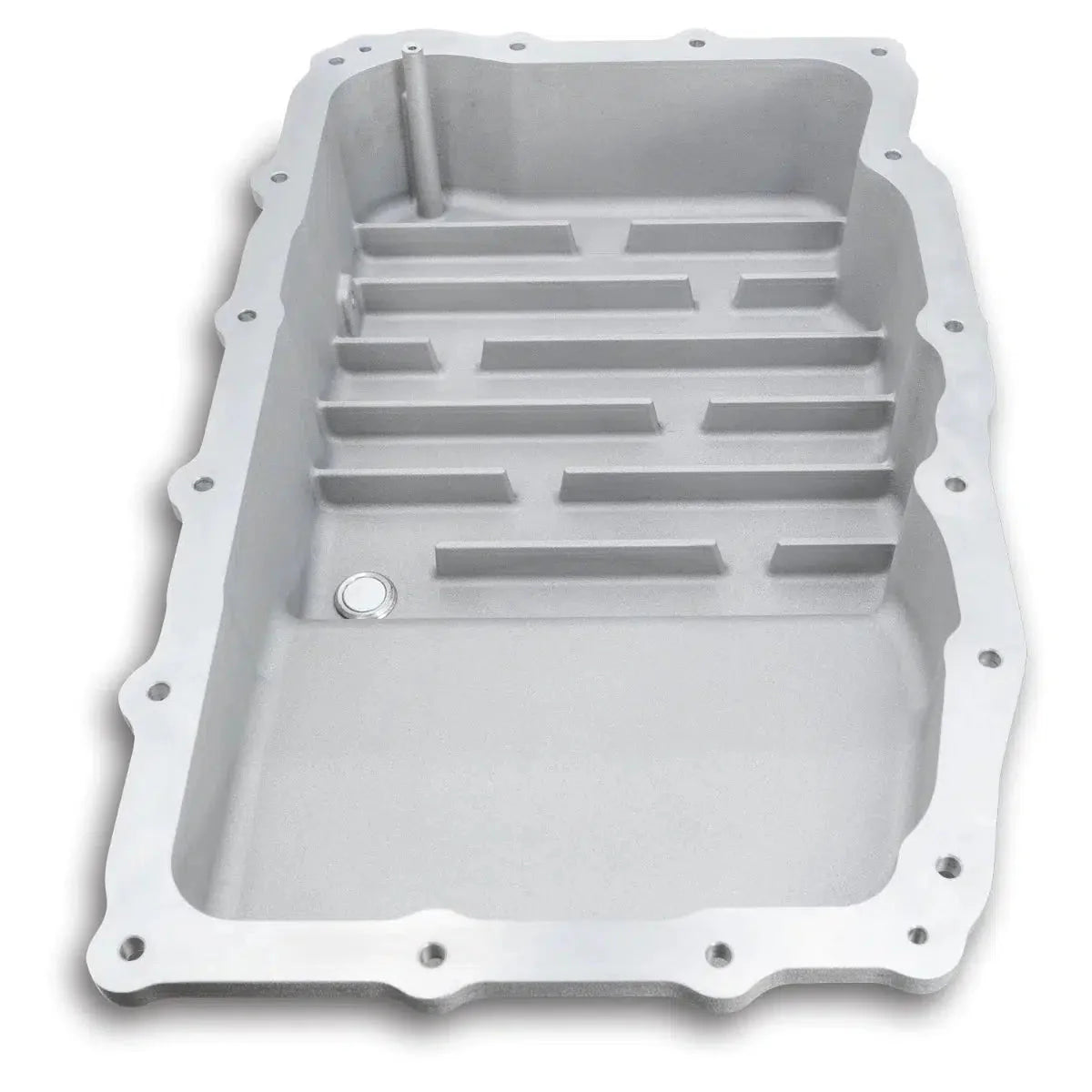

• Deep 3/4-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure

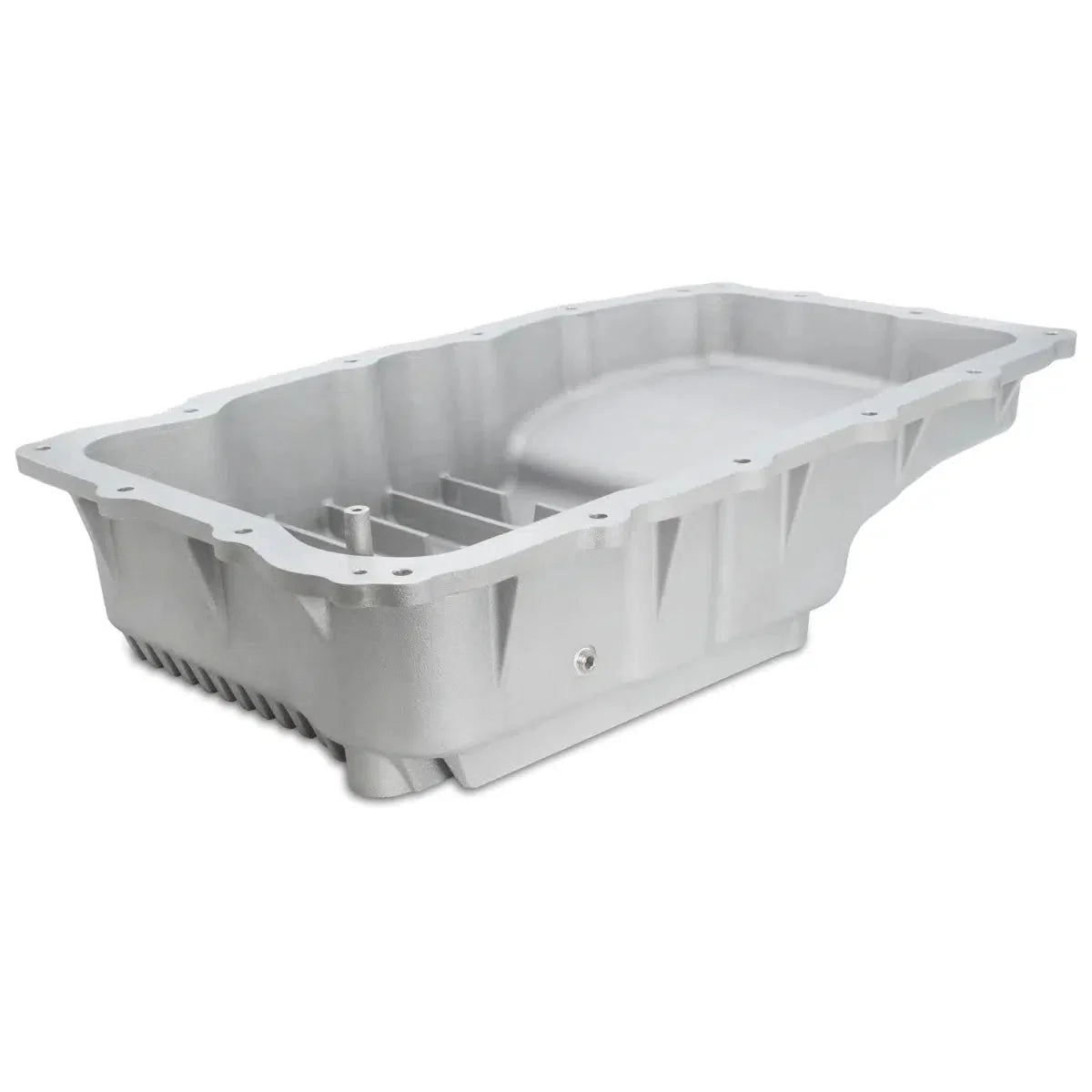

• Cast-in gussets for additional transmission housing flange support and increased rigidity
• 304 Stainless steel service plugs with built-in high temperature rated neodymium magnet and Viton O-ring
• Integrated standpipe ensures accurate fluid level checks during the filling process

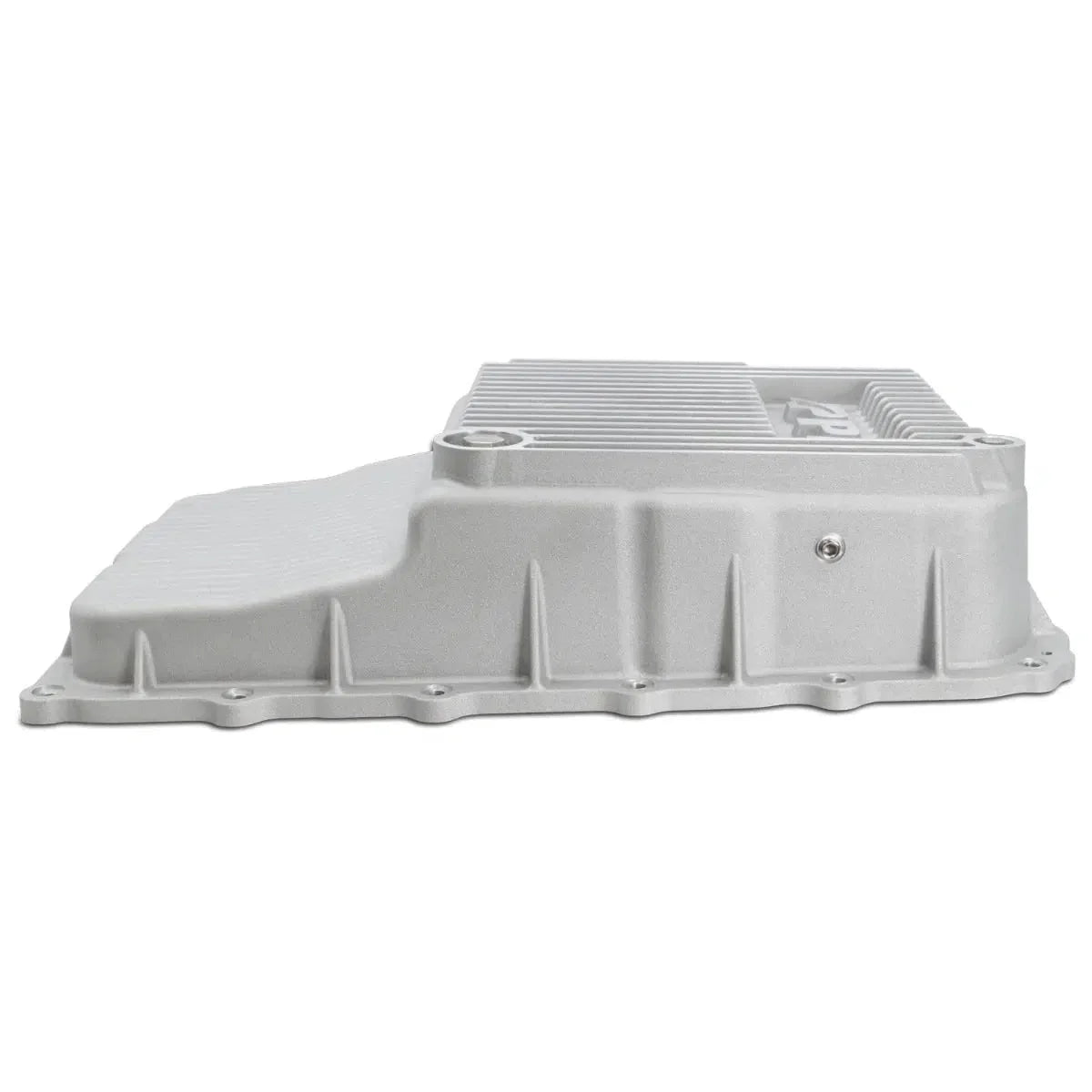

• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
• Compatible with OEM gasket and filter

Notes

Note: Certain 2018–2020 GM SUV 10L80 transmissions require filling through the pan. PPE Fill Tool p/n 128051208 is required for these applications and is sold separately.
