2018-2025 Wrangler EnduroSport 3" Suspension Lift System (JL30-1X5310-L1)

Description

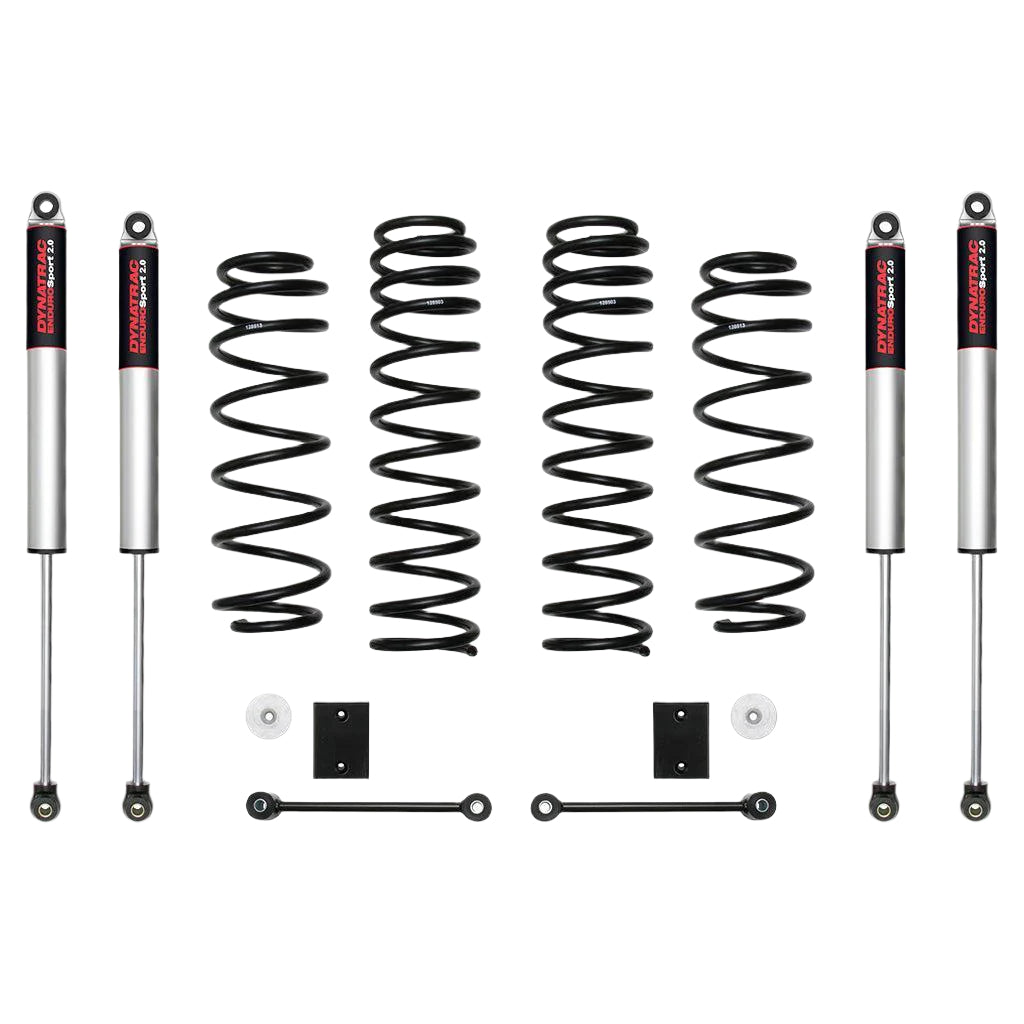

The 2018-2025 Wrangler EnduroSport 3" Suspension Lift System boosts your Jeep JL’s ride and performance without emptying your wallet. It includes 3" dual-rate coil springs, EnduroSport shocks, bump stop spacers, sway bar links, and all the hardware you need. Gain 3" more wheel travel up front and 2" in the rear, fitting up to 35" tires easily.

Part Number: JL30-1X5310-L1

Features

• 3" lift height over stock
• Fits 35" tires (37" with optional extended bump stop spacer kit
• 3" front, 2" rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Dual rate coil springs with lifetime guarantee against sagging/breakage
• 2.0 EnduroSport shocks with Jeep JL-specific valving
• 100% bolt-on
• Easy install
• Tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Additional Info

• Bushings Included: No
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Front Spring Rate Type: Progressive Dual Rate
• Grade Type: Performance
• Maximum Lift: 3
• Maximum Lift Front: 3
• Maximum Lift Rear: 3
• Mounting Hardware Included: Yes
• Rear Spring Rate Type: Progressive Dual Rate
• Reservoir Style: Internal
• Shock Body Diameter: 2
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

Notes

• Springs are NOT rated for use with models equipped with EcoDiesel engines.
• NOT compatible with Wrangler JL 4xe or Unlimited Rubicon 392 trims.

Tire Fitment

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922029)
