2018-2025 Wrangler 3" Lift Kit with NX2 Nitro Shocks (BDS1438H)

Improve the ride and style of your Jeep Wrangler JL 2 Door with this 3-inch lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires at an affordable price.

Features

• Full bump clearance.
• Rubbing can occur under full articulation.
• Non-Rubicon comes from the factory at a lower ride height, which will net slightly more lift final stance the same for all models.
• Will not fit 4xe models.
• Will not fit Rubicon 392 models.
• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Front HD track bar to correctly position the front axle and control lateral movement
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 37 inch Tires
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 17x9
• Back Spacing: 4.5

Notes

• Stock wheels cannot be reinstalled without spacers due to rear sway bar interference.
• Does not fit Diesel models

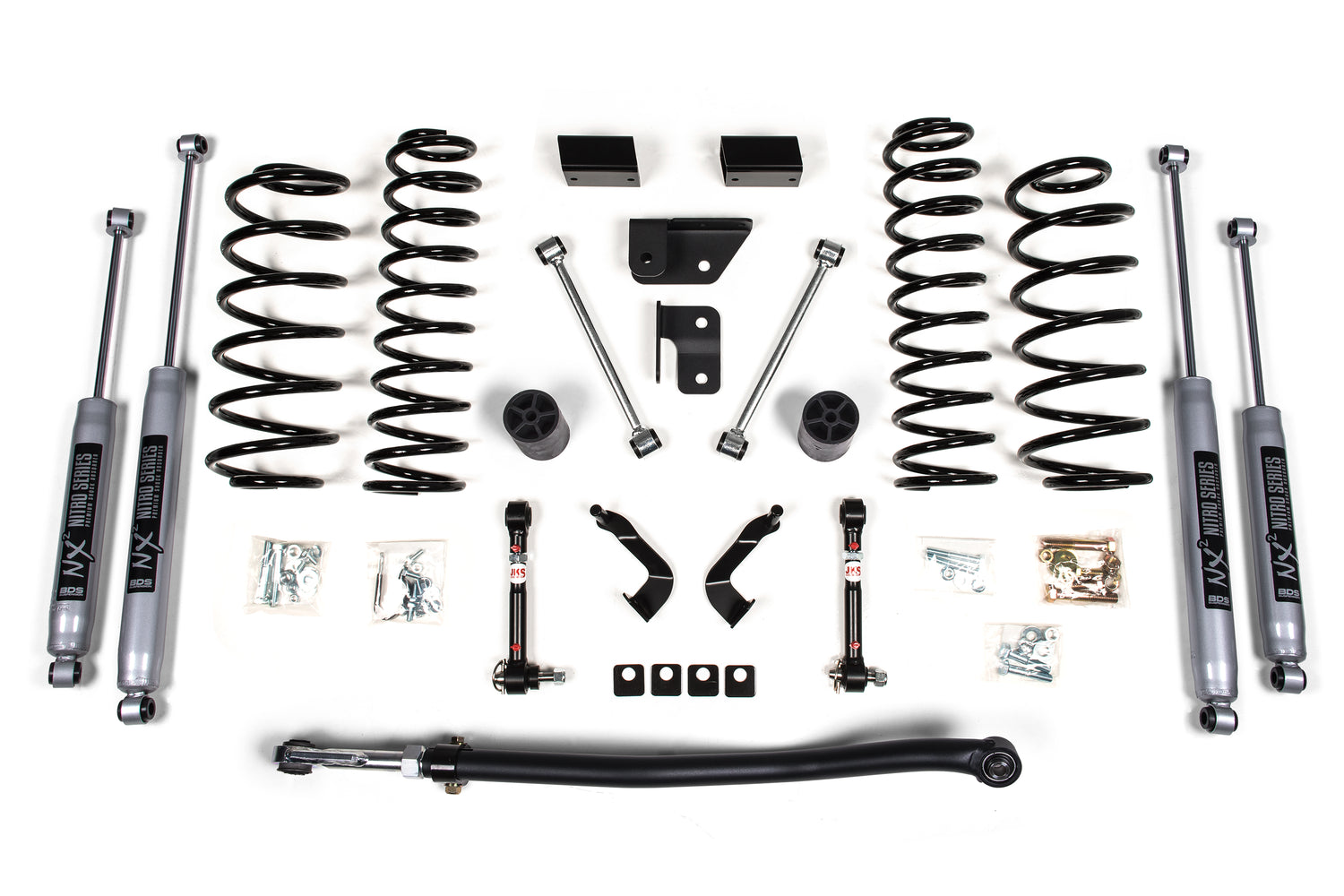

Includes

• BDS014330, 2018-2025 Jeep Wrangler JL 3 inch Lift Box Kit (UPC 658848614066)
• BDS034240, 2018-2025 Jeep Wrangler JL 2 inch Front Coil Spring Box Kit (UPC 658848616725)
• BDS034246, 2018-2025 Jeep Wrangler JL 2 inch Rear Coil Spring Box Kit (UPC 658848616732)
• BDS85782, 2018-2025 Shock - 26.2 x 15.67 x 2-3/8 - EB1/EB1 (UPC 711745609785)
• BDS85787, 2018-2025 Shock - 29.78 x 17.59 x 2-3/8 - EB1/EB1 (UPC 711745609792)
