2017-2020 F-150 4" Lift Kit (BDS1558H)

Take full advantage of the Raptor's FOX LiveValve shocks when you install a 4-inch suspension lift kit by BDS Suspension on your 2019-2020 Ford F150 Raptor. After months of engineering, BDS determined that the 4 inch lift height allows for the best use of the factory equipped FOX shocks and maintains full range of suspension travel, with clearance for up to 37 inch tires.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Shock relocation brackets to maintain factory FOX shocks

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5

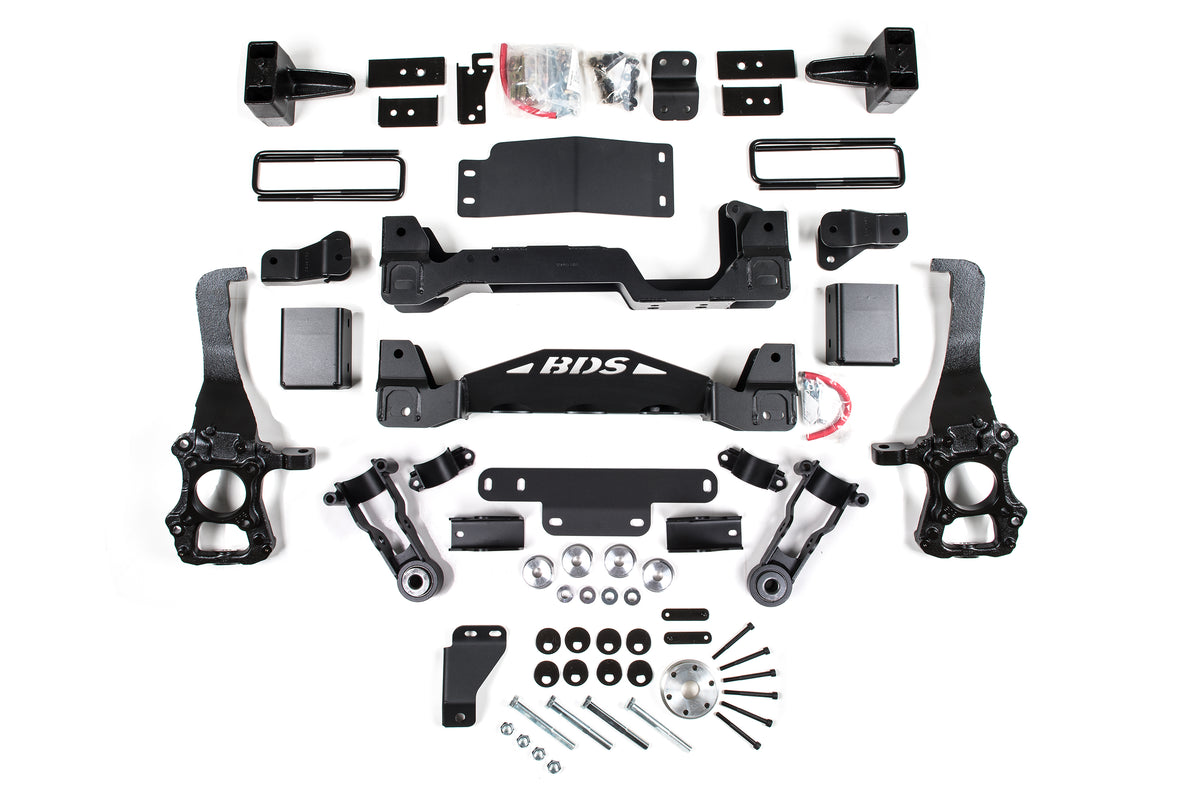

Includes

• BDS013539 - 2015-2020 Ford F150 Rear Box Kit (UPC 658848613670)
• BDS023409 - 19-20 Ford Raptor 4.5 inch Box Kit (UPC 658848615681)
• BDS023634 - 2015-2020 Ford F150 Knuckle Box Kit - DS (UPC 658848615919)
• BDS023635 - 2015-2020 Ford F150 Knuckle Box Kit - PS (UPC 658848615926)
• BDS023650 - 2015-2020 Ford F150 Front Box Kit (1of2) (UPC 658848615940)
• BDS023651 - 2015-2020 Ford F150 Front Box Kit (2of2) (UPC 658848615957)
