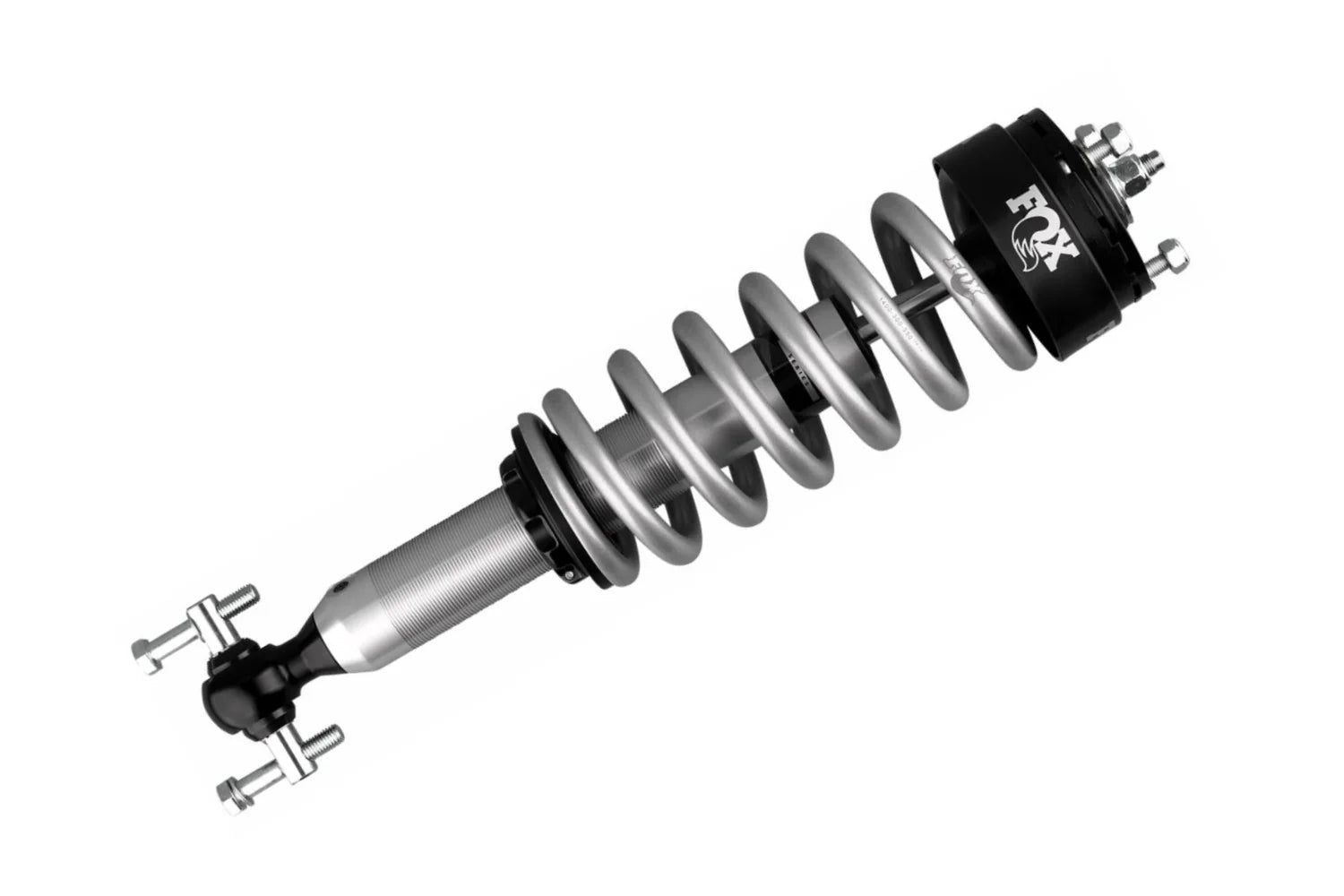

2019-2023 Ranger 2.0 Series Coilover Kit 0-3" Lift (FOX98502133)

Upgrade the on-road comfort and off-road control of your 2019-2023 Ford Ranger to FOX Performance Series 2.0 Coil-Over IFP (internal floating piston) shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. FOX shocks bolt on with no modifications and are designed to level your truck front-to-rear. The metal impact-extruded aluminum body increases cooling capacity and resists rust. Vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Features

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design


Specs

• Compressed Length : 15
• Cylinder Material : Aluminum
• Extended Length : 19.39
• Gas Charged : Yes
• Lower Mount Code : TM
• Lower Mount Type : Bar Pin
• Shaft Diameter : 5_8
• Travel Length : 4.39
• Type : Coil-Over
• Upper Mount Code : OEM
• Upper Mount Type : TM
