2019-2022 Sprinter 2500 2WD Complete Striker 2" Lift Kit, Front and Rear (7038)

Give your 2WD Sprinter the clearance it needs to go farther with the Van Compass complete Striker 2" lift kit. This bolt-on suspension lift opens up room for up to a 33" tire while retaining the stock suspension geometry, payload rating, and ride quality, so you get all the benefits of added clearance with none of the drawbacks. The rear lift block keeps your factory spring rate and pairs nicely with a tuned shock upgrade for even better comfort and control.

Features

• Complete front and rear bolt-on lift for the 2WD Sprinter
• Clears up to a 33" tire for higher ground clearance off-road
• Retains stock suspension geometry, payload rating, and ride quality
• Rear lift block preserves factory spring rate; pairs with tuned shock upgrades
• Built in the USA from high-quality materials, powder coated for durability and corrosion resistance

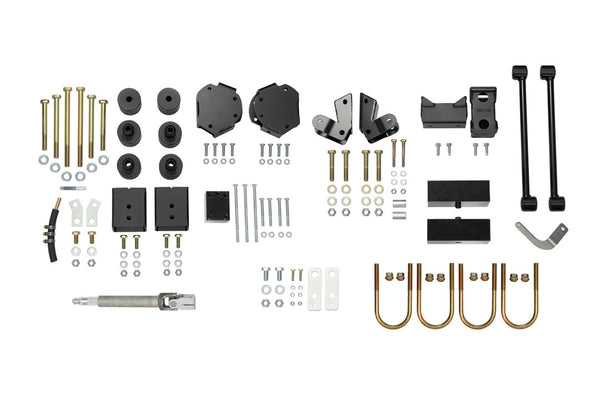

Included Components

• Front 2" strut spacers
• Front 2" subframe drop spacers
• Engine and transmission mount 2" lift spacers
• CNC Machined 2" steering shaft extension
• Low pressure power steering hose extension
• Front brake line relocation brackets
• Rear brake line relocation brackets
• Rear 2" lift block
• U-bolts with nuts
• Extended rear sway bar links (2500)
• Rear sway bar drop brackets (3500)
• Rear lower shock relocation brackets
• Rear bump stop drop brackets
• Wind assist or headlight leveling sensor bracket
• All necessary hardware and detailed instructions

Important Notes

• Up to 265/75R16 Tire
• Offset Wheels Recommended
• Some 3500 Sprinters have factory rear lift blocks installed, the kit will not be compatible on those models.

Installation Instructions

• VS30 2500 and 3500 Front Lift Installation Instructions
• VS30 2500 Rear Lift Installation Instructions
• VS30 3500 Rear Lift Installation Instructions

Labor Time

Recommended shop labor time: 12 hours.

Specifications

• Grade Type: Regular
• Maximum Lift: 2.0 IN
• Maximum Lift Front: 2 IN
• Maximum Lift Rear: 2 IN
