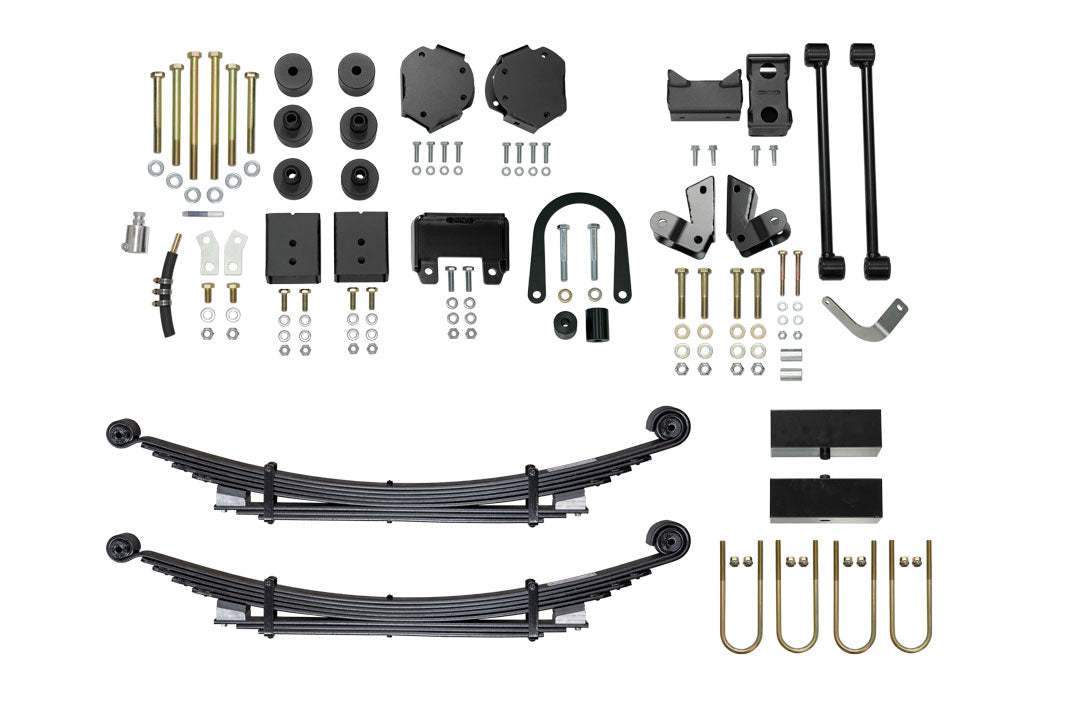

2019-2022 Sprinter 2500 4x4 Suspension Lift Kit (7057-OPTI)

The Van Compass Striker lift kit creates the clearance needed to fit larger tires and push deeper into the backcountry with confidence. Developed over years of careful design, it lifts the van with as few compromises to the factory geometry as possible, keeping the CVs, tie rods and control arms cycling in their original Mercedes-specified range. With the right wheel offset and fender trimming, it opens the door to a 35x12.50 tire for a big gain in traction and ground clearance.

Features

• Machined and welded front subframe spacers preserve factory CV, tie rod and control arm geometry
• Opti-Rate rear leaf spring pack lets you fine-tune spring rate and ride height for your build
• 2" rear lift block, longer sway bar links, shock relocation brackets and bump stop spacers keep everything cycling without bind
• Best suited to heavy vans in the 9,000-10,000 lb range and up, including upgraded Storytellers, Revels and 170 EXT builds
• Up to 2" of lift to clear larger tires for more capability off pavement

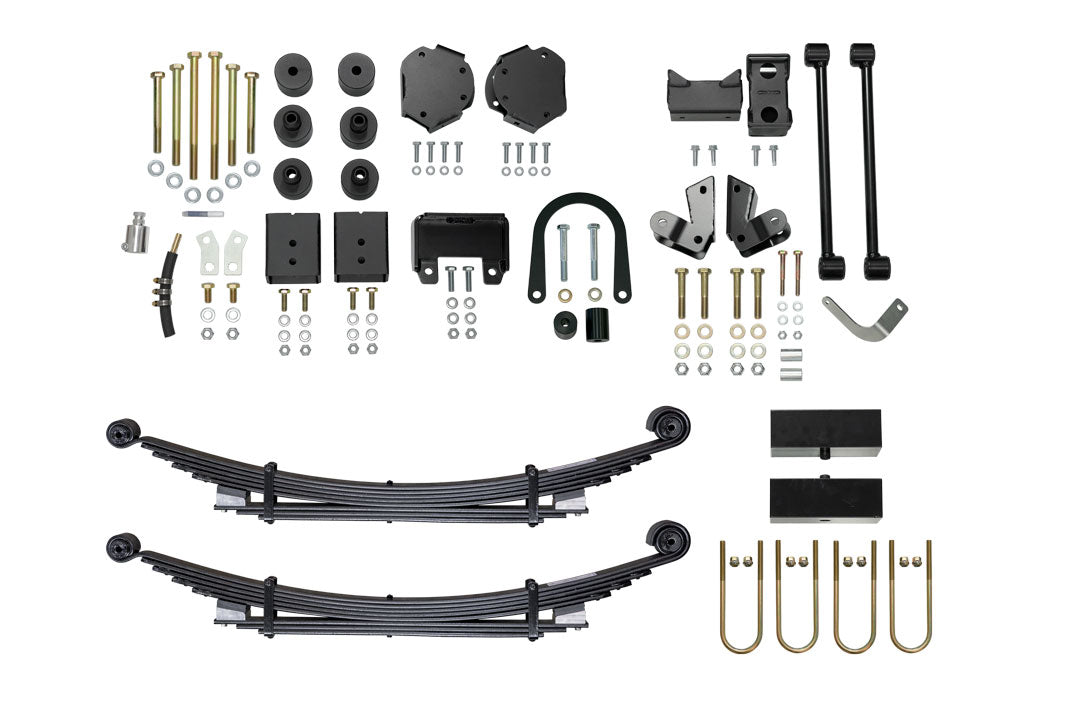

Included Components

• Front 2" strut spacers
• Front 2" subframe drop spacers
• Engine and transmission mount 2" lift spacers
• CNC Machined 2" steering shaft extension
• Low pressure power steering hose extension
• Front brake line relocation brackets
• Opti-Rate Rear leaf spring pack
• 2" rear lift block
• Extended rear sway bar links
• Rear lower shock relocation brackets
• Rear bump stop drop brackets
• Wind assist or headlight leveling sensor bracket
• All necessary hardware and detailed instructions

Important Notes

• Fits up to a 35x12.50 tire with proper wheel offset and fender trimming
• Offset Wheels Recommended
• With this lift kit, tires up to 35" diameter and 12.5" width can fit. Trimming of the fender liner and mud flap is required.

Installation Instructions

• 2015-2018 NCV3 4x4 Striker 2" Front Kit Installation Instructions
• 2019-2022 VS30 4x4 Striker 2" Front Kit Installation Instructions
• Striker 2" Rear Kit with Opti-Rate Springs Installation Instructions

Labor Time

Recommended shop labor time: 12 hours.

Specifications

• Grade Type: Performance
• Maximum Lift: 2.0 IN
