2019-2024 GM 1500 1.5" Lift Kit (BDS774FRS)

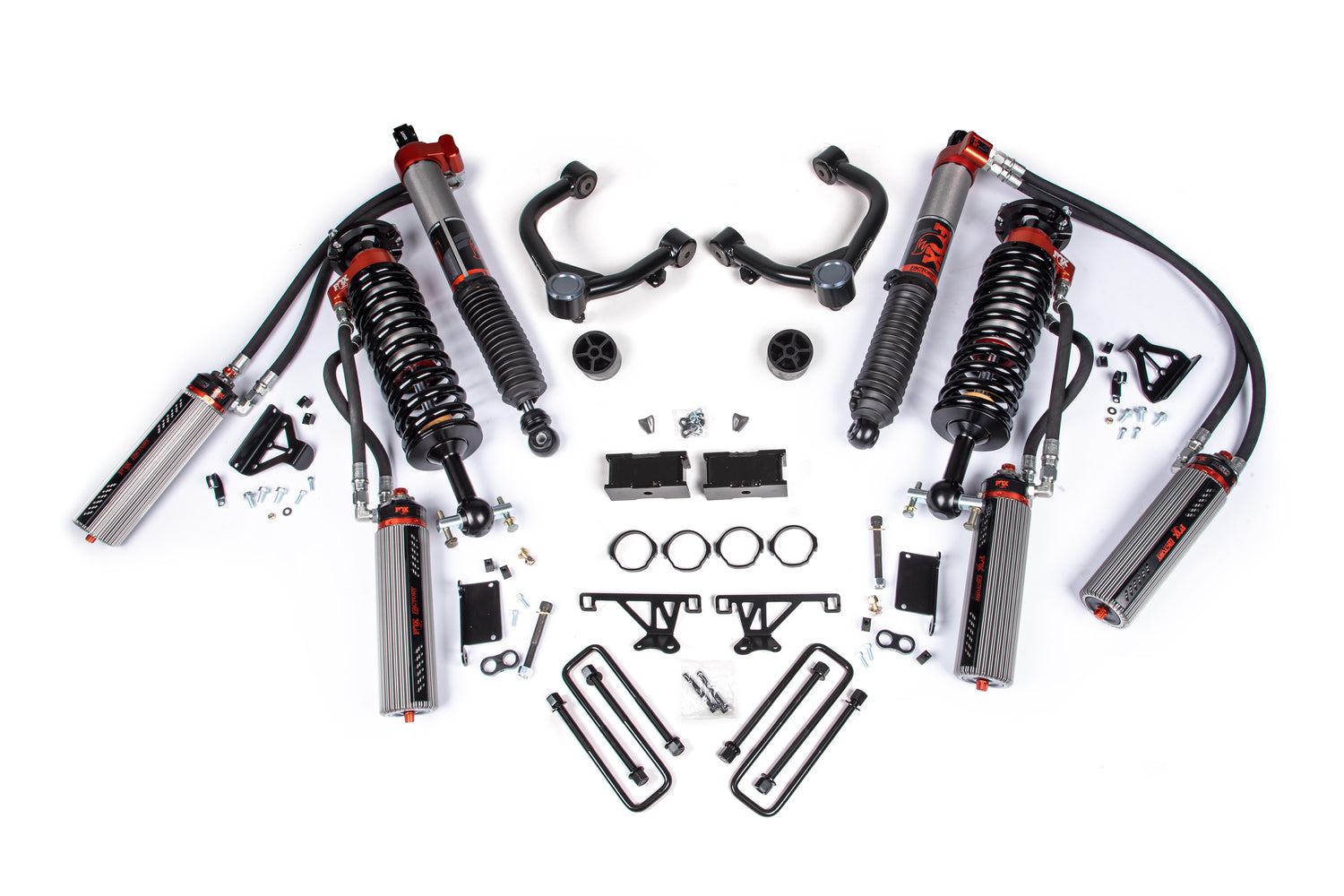

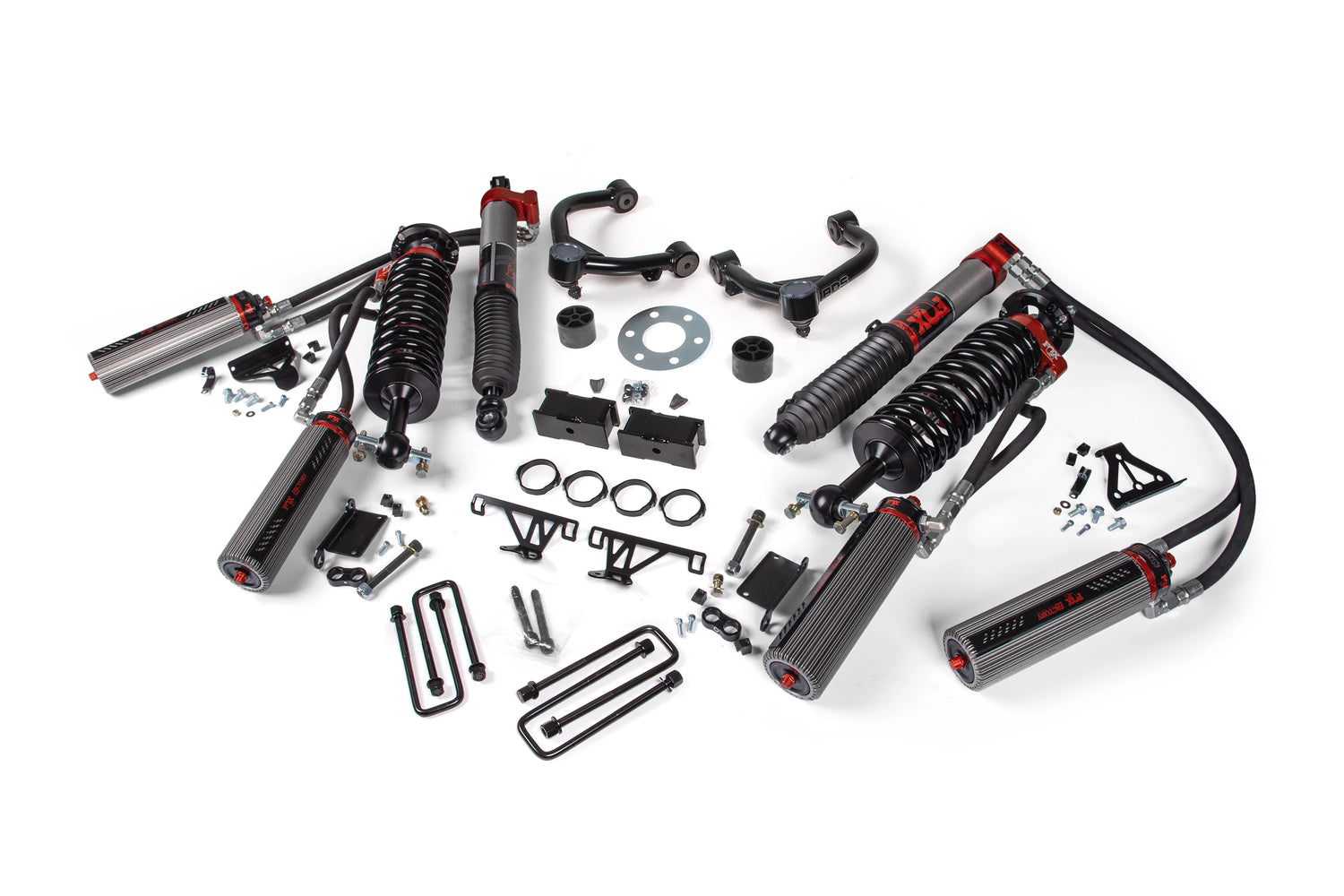

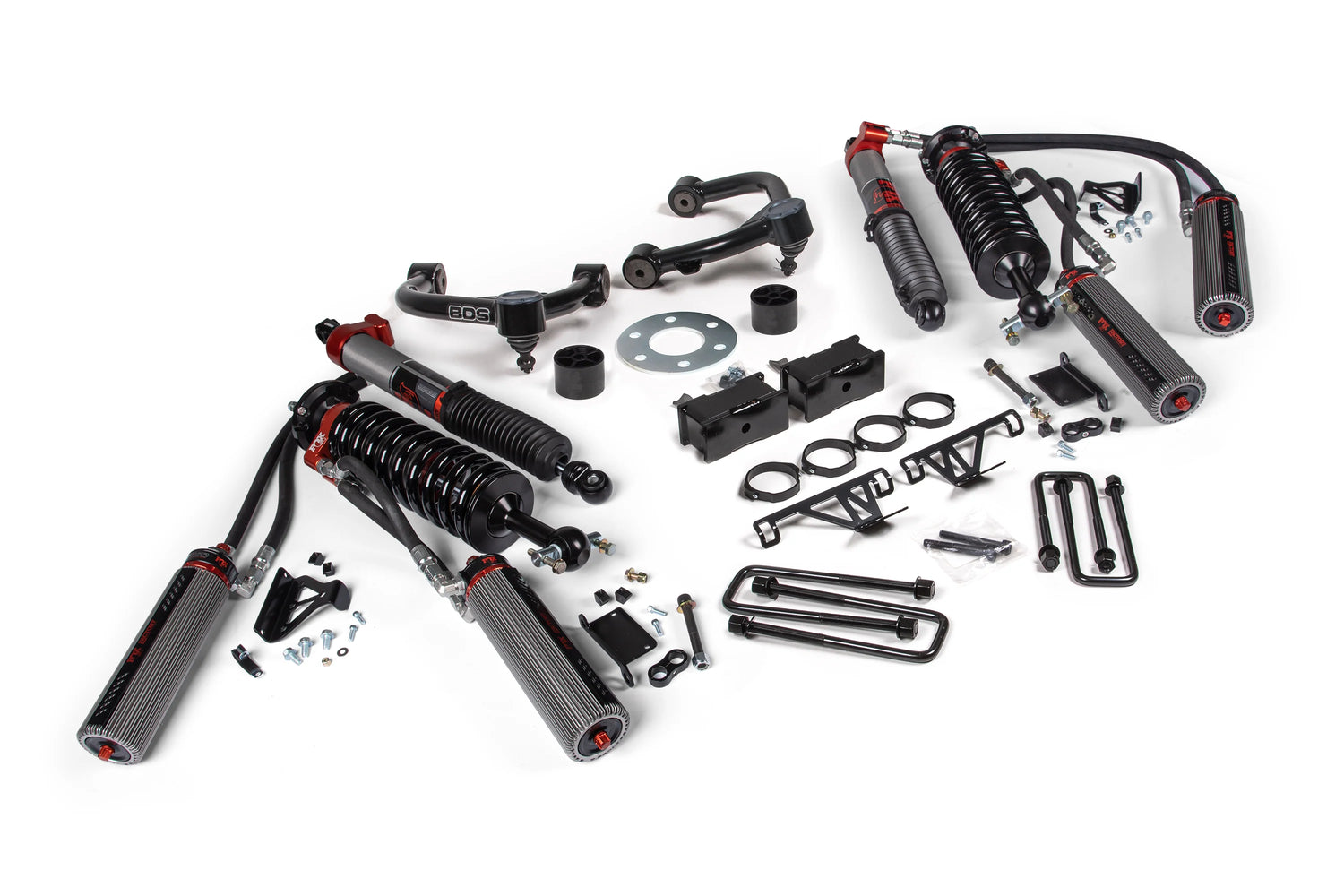

Add style and performance to your 2019-2024 GM Silverado/Sierra 1500 with this 1.5" lift kit featuring FOX Factory Race Series 3.0 remote reservoir coil-over shocks from BDS, with clearance for up to 35" tires (Chevy) or 33" tires (GMC). Up front it pairs the FOX 3.0 IBP coil-overs with heavy duty tubular upper control arms built from 1.5" OD x .120-wall tubing with an indexed ball joint cup for added down travel and camber adjustment. The rear runs fabricated steel lift blocks, longer u-bolts, and a matching set of FOX 3.0 shocks.

The patented Internal Bypass technology gives multiple zones of damping control, with finned external reservoirs and Type III anodized aluminum bodies to keep fluid cool, plus Dual Speed Compression adjustment to dial in for load, environment, and driving style.

Features

• Builds off factory suspension geometry for improved performance with easy install
• Front FOX 3.0 Factory Race Series IBP coil overs with simple adjustment of settings
• Rear FOX 3.0 Factory Race Series IBP shocks for improved ride quality, performance and capability
• BDS HD upper control arms for strength and increased suspension travel
• High misalignment angle, greaseable heavy duty ball joints
• Rubber control arm bushings to promote long life and no maintenance of the joint
• Anodized ball joint cap to seal the top of the control arm ball joint cup from dirt and debris
• Rear lift block kit to produce a level to slightly tail-high stance
• 1/4" wheel spacer provided to be used with the spare tire if needed
• Optional weld-on steering stops to help tire clearance to fenders and control arms, dependent on wheel offset
• Factory Protection Plus included

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3.5 inch
• Rear Lift Height: 2.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.53

Notes

• 5.5" max wheel backspacing can be used
• Will not fit models with Adaptive Ride Control (ARC)
• Will fit Trail Boss/AT4 models, however will net 1.5" of lift over factory ride height
• This kit has not been test fit on Silverado ZR2 or Sierra AT4X models
• Lifting of the bed required for shock install

Includes

• BDS011350, 2019-2024 Chevrolet Silverado/GMC Sierra 1500 Coilover 3.5 inch Box Kit (UPC 658848611775)
• FOX88306175, Kit: 2019-2023 GM 1500 Front Coilover, Internal Bypass, 3.0 Series, Recirc R/R, Dual Speed Compression Adjust, Non-TB/Non-AT4 3.5 inchРЎСљ Lift, TB/AT4 1.5 inchРЎСљ Lift
• FOX88326105, Kit: 2019-2023 GM 1500, Rear, Internal Bypass, 3.0 Series, Recirc R/R, Dual Speed Compression Adjust, Non-TB/Non-AT4 2-3 inchРЎСљ Lift, TB/AT4 0-1 inchРЎСљ Lift
