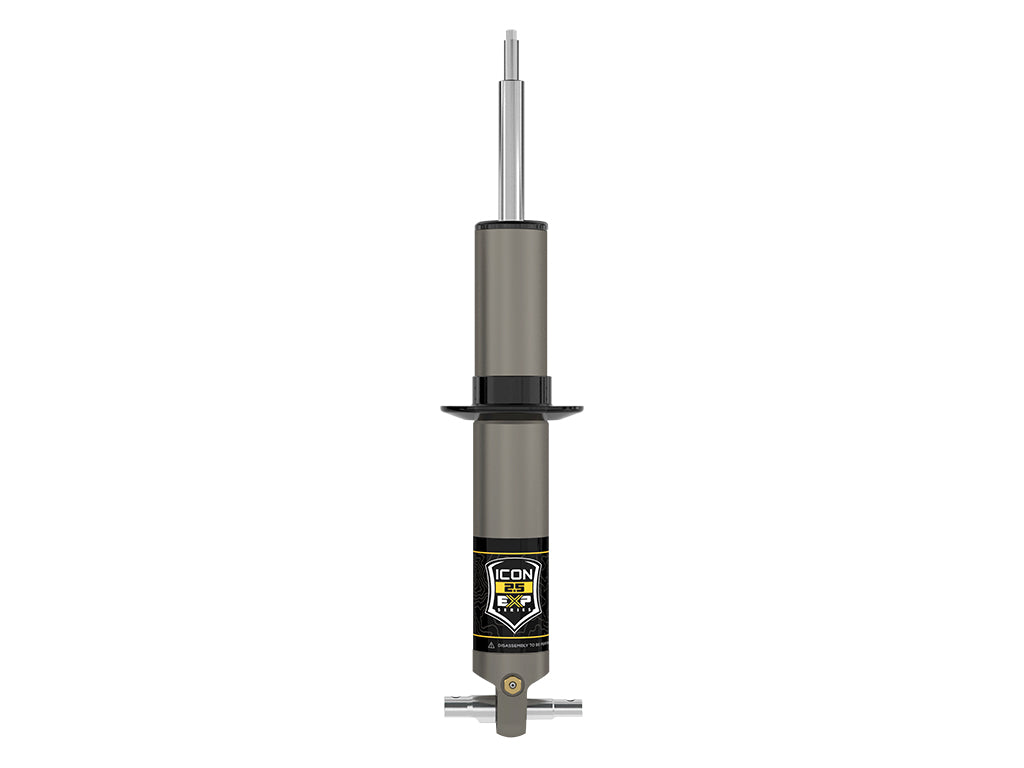

2019-2023 GM 1500 2.5 Front Coilover Kit (ICO71607)

Drop in serious suspension performance on your 2019-2023 GM 1500 with ICON 2.5 Series coilovers. Adjustable from 2.38-3.75" of lift over stock.

Features

• Vehicle specific design for the 2019-2023 GM 1500 trucks
• Adjustable ride heights from 2.375-3.75" of front lift over stock with the use of snap ring
• Utilizes factory coils
• 2.5 Aluminum Series Shock with Internal Reservoir
• CNC machined 6061 aluminum components with a black anodize finish
• PTFE lined bearings for extended longevity and minimal deflection
• Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft
• One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
• 100% Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9 with 5" Backspace / 0mm Offset
• ICON Alloys - 20x9 with 5" Backspace / 0mm Offset
• Tires: Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required)
• Tires: Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required)

Important Notes

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Trimming Required For Recommended Tire Size
• EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.
• Models equipped with Duramax diesel engines will have front lift height range of 1.75-3" over stock
• Not compatible with models equipped with Adaptive Ride Control (ARC)
• Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X
• Not compatible with Silverado 1500 Trail Boss or Sierra 1500 AT4

Manufacturer Description

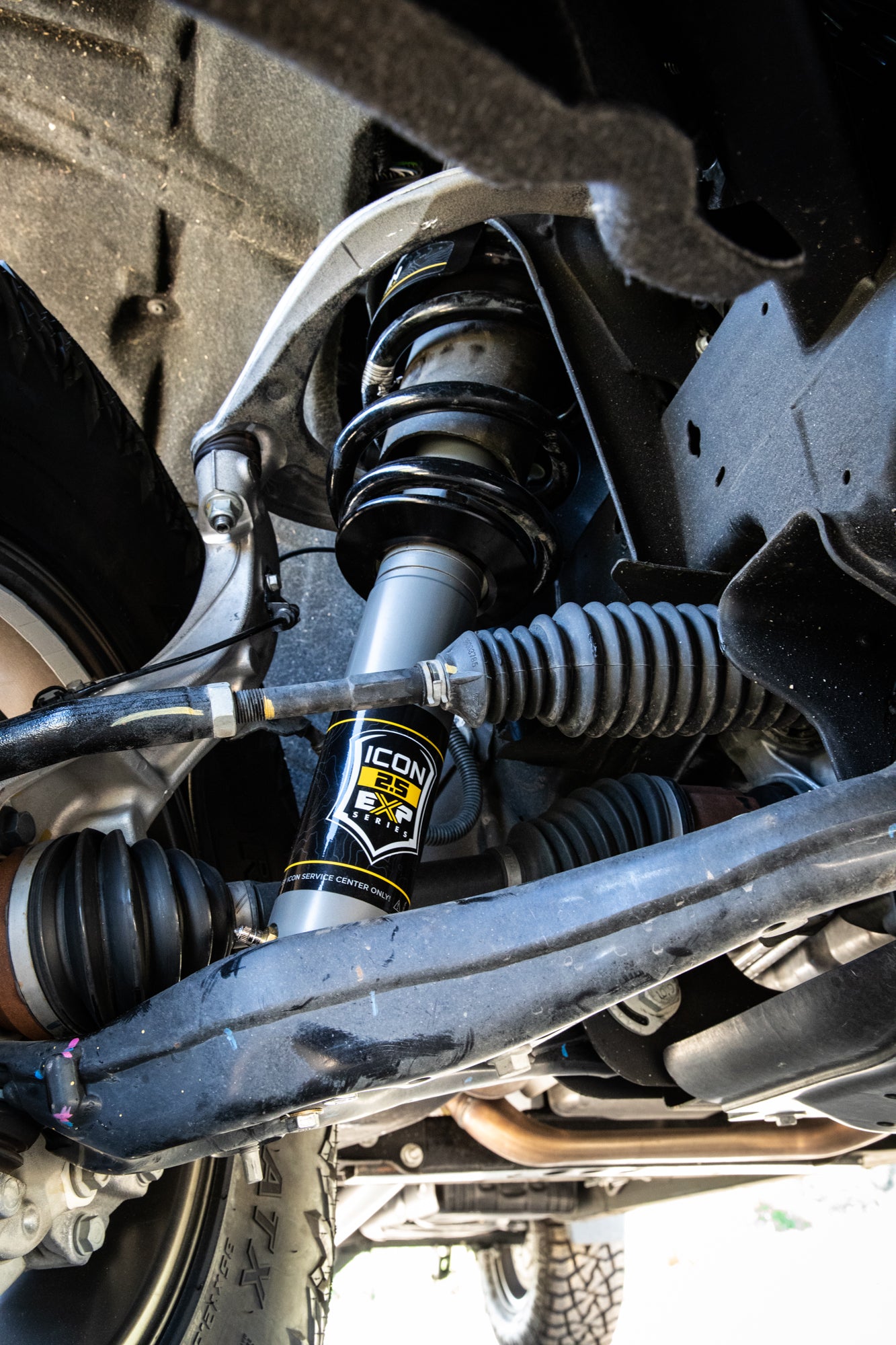

EXP Series for the 2019-2023 GM 1500 is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation. The 6061-billet aluminum coil spring seat is CNC machined to fit the truck’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 2.375" to 3.75" of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
