2019-2024 Ram 1500 4" Lift Kit with NX2 Nitro Shocks (BDS1663H)

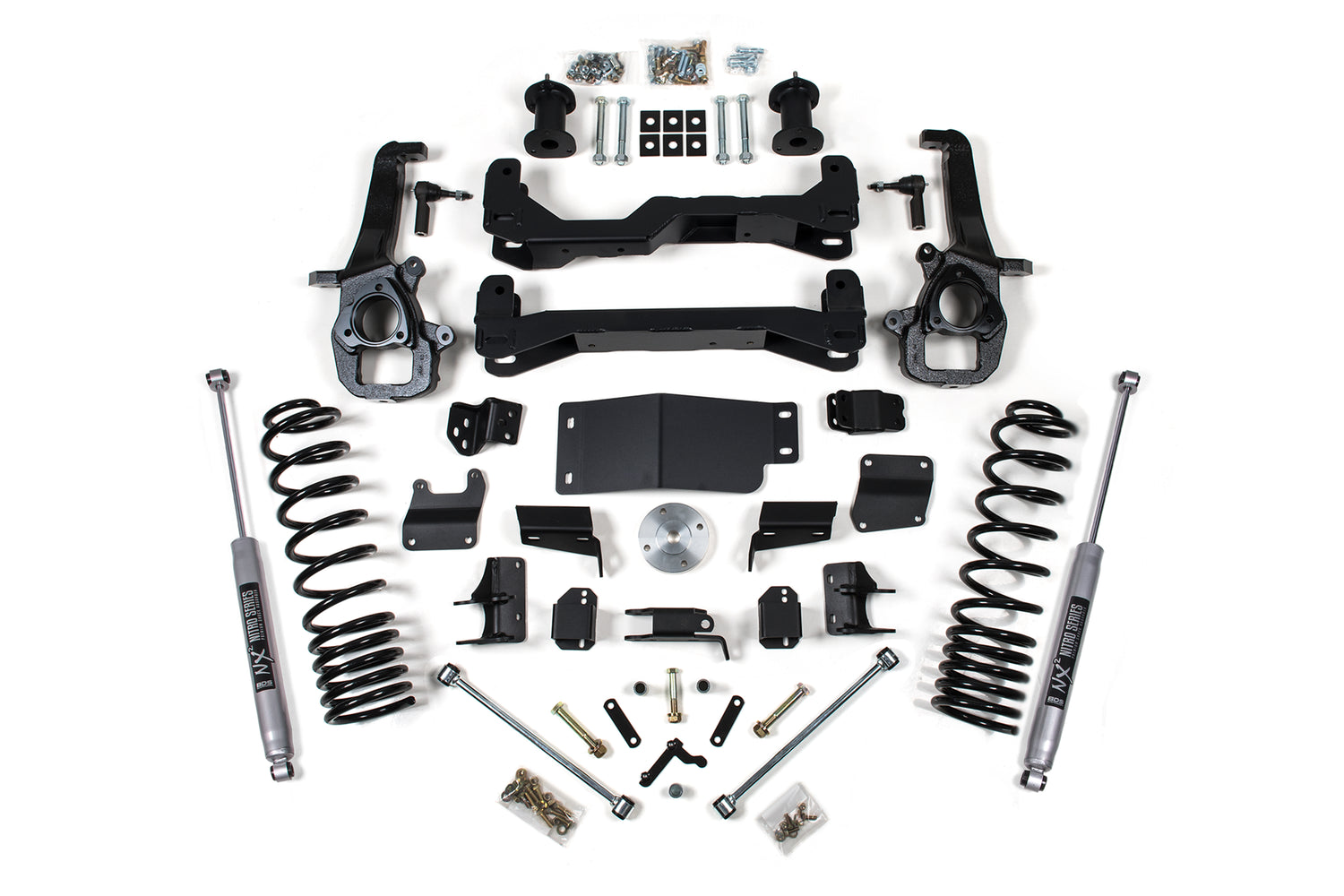

BDS steps up the 2019-2024 RAM 1500 with this 4" suspension lift kit, clearing up to 35" tires. Up front it uses top mounted strut spacers, high-arched 1/4" steel crossmembers, differential relocation brackets and heavy duty skid plates, plus CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility. The rear runs progressive rate Pro-Ride coil springs, upper control arm relocation brackets, a track bar relocation bracket, bump stop extensions and sway bar links with NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• NX2 gas or FOX Performance Series Internal Floating Piston shocks for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included
• NX2: nitrogen-charged twin-tube, 10-stage velocity-sensitive valving, 1-3/8" high-flow piston, self-lubricating seals, silver powder coat finish, dual-welded ends

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5

Notes

• Fits 4WD models only.
• RAMs with factory 22" wheels require larger bore knuckles due to the larger wheel bearing assembly. Reference build code WPM or WPZ.
• Will NOT fit adjustable air ride suspension equipped models.
• Vehicles equipped with the Off-Road Group package require the Ram 1500 Rebel 4" kit to achieve correct ride height. Verify via your VIN/window sticker (an 'Off-Road Group' line item under Optional Equipment).
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.
• Will NOT work on diesel models.
• Will NOT fit 2019-2022 RAM 1500 Classic models; refer to the 2018 kit listings.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines.
• If using 18" wheels with maximum recommended backspacing, test fit wheels on the vehicle before mounting tires to ensure clearance.

Includes

• BDS022404, 2019-2023 Ram 1500 4 Inch Strut Spacer Box Kit (UPC 658848615391)
• BDS022508, 2019-2023 Ram 1500 Rear Box Kit (UPC 658848615407)
• BDS022632, 2019-2023 Ram 1500 Knuckle Box Kit - DRV (UPC 658848615520)
• BDS022633, 2019-2023 Ram 1500 Knuckle Box Kit - PASS (UPC 658848615537)
• BDS022642, 2019-2023 Ram Front Box Kit 1 of 2 (UPC 658848615575)
• BDS022643, 2019-2023 Ram Front Box Kit 2 of 2 (UPC 658848615582)
• BDS032308, 2019-2023 Ram 1500 3in Rear Coil Box Kit (UPC 658848616350)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
