2019-2024 Ram 1500 4" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1663FPE)

Hit the trails in your 2019-2024 RAM 1500 with this BDS 4" coil-over lift kit running FOX 2.5 Performance Elite coil-over shocks, clearing up to 35" tires. Up front it uses FOX 2.5 coil-overs, high-arched 1/4" steel crossmembers, differential relocation brackets and heavy duty skid plates, plus CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility. The rear runs progressive rate Pro-Ride coil springs, upper control arm relocation brackets, a track bar relocation bracket, bump stop extensions, sway bar links and FOX 2.0 Performance Series shocks.

The FOX 2.5 Performance Elite shocks add a remote reservoir for extra fluid capacity and cooling, with Dual Speed Compression Adjusters offering 10 low-speed and 12 high-speed settings.

Features

• FOX 2.5 coil-over shocks for increased travel
• Dual Speed Compression Adjust: 10 low-speed and 12 high-speed compression settings via twist knobs
• Black anodized aluminum reservoir to increase cooling efficiency
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• FOX 2.0 Performance Series Internal Floating Piston rear shocks for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: No Front Lift Method
• Rear Lift Method: No Rear Lift Method
• Shocks Included: No
• Front Lift Height: No Front Lift Height
• Rear Lift Height: No Rear Lift Height

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9
• Back Spacing: 5

Notes

• Fits 4WD models only.
• RAMs with factory 22" wheels require larger bore knuckles due to the larger wheel bearing assembly. Reference build code WPM or WPZ.
• Will NOT fit adjustable air ride suspension equipped models.
• Truck sits about 1/2" front high with the preload spacer installed, or about 3/8" nose low without it.
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.
• Will NOT work on diesel models.
• Will NOT fit 2019-2022 RAM 1500 Classic models; refer to the 2018 kit listings.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines.
• If using 18" wheels with maximum recommended backspacing, test fit wheels on the vehicle before mounting tires to ensure clearance.

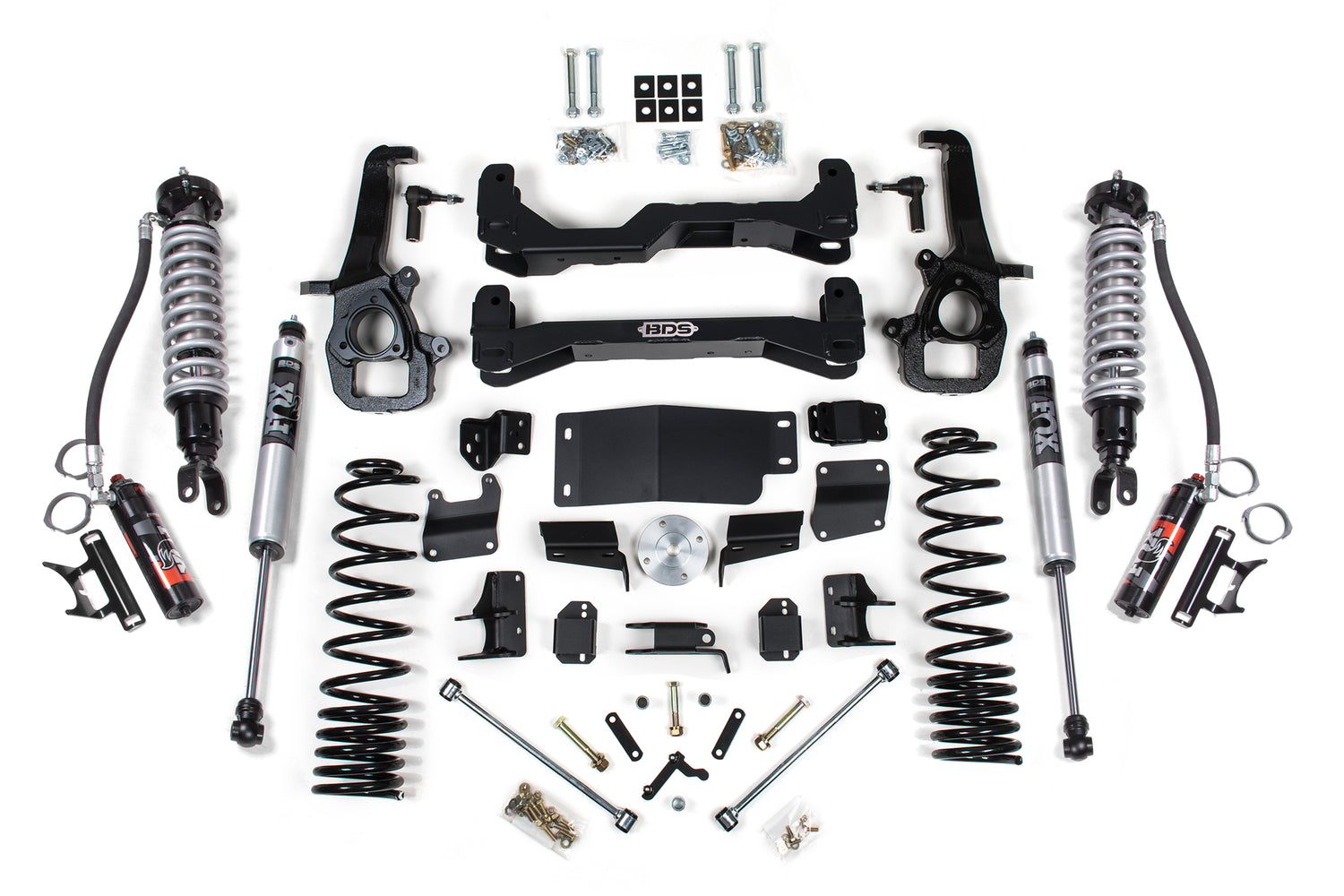

Includes

• BDS022508, 2019-2023 Ram 1500 Rear Box Kit (UPC 658848615407)
• BDS022632, 2019-2023 Ram 1500 Knuckle Box Kit - DRV (UPC 658848615520)
• BDS022633, 2019-2023 Ram 1500 Knuckle Box Kit - PASS (UPC 658848615537)
• BDS022642, 2019-2023 Ram Front Box Kit 1 of 2 (UPC 658848615575)
• BDS022643, 2019-2023 Ram Front Box Kit 2 of 2 (UPC 658848615582)
• BDS032308, 2019-2023 Ram 1500 3in Rear Coil Box Kit (UPC 658848616350)
• FOX88406383, Kit: BDS 19-ON Ram 1500, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 4 inch Lift, Dual Speed Compression Adjust
• FOX98224807, Fox 2.0 Shock 27.57 x 16.95 x 2- S50/EB1 (UPC 711745613546)
