2019-2024 Ram 1500 6" Lift Kit with FOX 2.0 Performance Shocks (BDS1662FS)

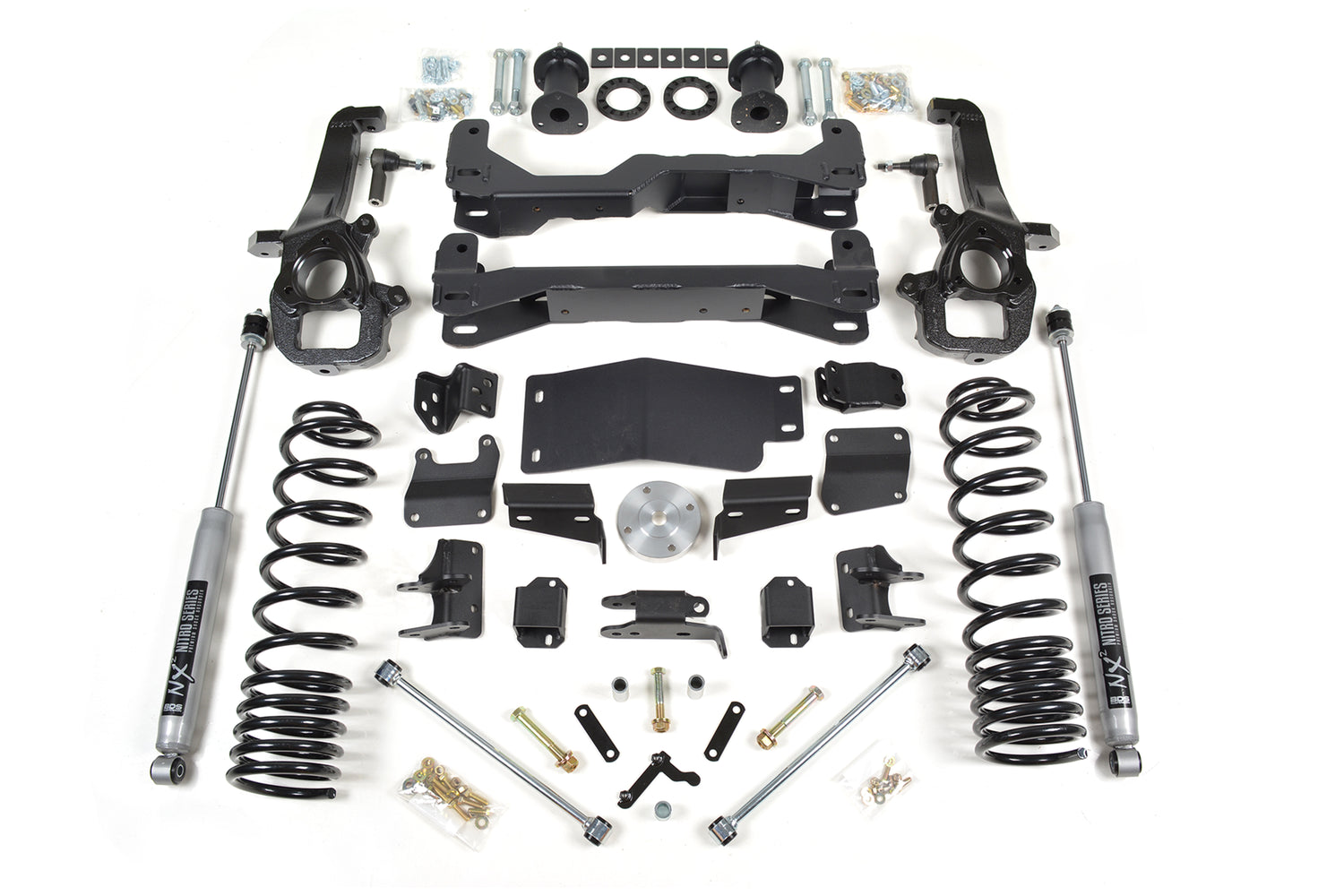

BDS steps up the 2019-2024 RAM 1500 with this 6" suspension lift kit, clearing up to 37" tires. Up front it uses top mounted strut spacers, high-arched 1/4" steel crossmembers, differential relocation brackets and heavy duty skid plates, plus CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility. The rear runs progressive rate Pro-Ride coil springs, upper control arm relocation brackets, a track bar relocation bracket, bump stop extensions and sway bar links with NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• NX2 gas or FOX Performance Series Internal Floating Piston shocks for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube, CNC machined 6061-T6 aluminum ends, 5/8" hard chrome shaft, clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5

Notes

• Fits 4WD models only.
• RAMs with factory 22" wheels require larger bore knuckles due to the larger wheel bearing assembly. Reference build code WPM or WPZ.
• Will NOT fit adjustable air ride suspension equipped models.
• On a Rebel or truck with the off-road group package, the truck sits roughly 1/2" front high with the preload spacer installed, or about 3/8" nose low without it.
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.
• Will NOT work on diesel models.
• Will NOT fit 2019-2022 RAM 1500 Classic models; refer to the 2018 kit listings.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines.
• If using 18" wheels with maximum recommended backspacing, test fit wheels on the vehicle before mounting tires to ensure clearance.

Includes

• BDS022508, 2019-2023 Ram 1500 Rear Box Kit (UPC 658848615407)
• BDS022636, 2019-2023 Ram 1500 6 Inch Strut Spacer Box Kit (UPC 658848615544)
• BDS022640, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - DRV (UPC 658848615551)
• BDS022641, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - PASS (UPC 658848615568)
• BDS022642, 2019-2023 Ram Front Box Kit 1 of 2 (UPC 658848615575)
• BDS022643, 2019-2023 Ram Front Box Kit 2 of 2 (UPC 658848615582)
• BDS032508, 2019-2023 Ram 1500 5in Rear Coil Box Kit (UPC 658848616404)
• FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
