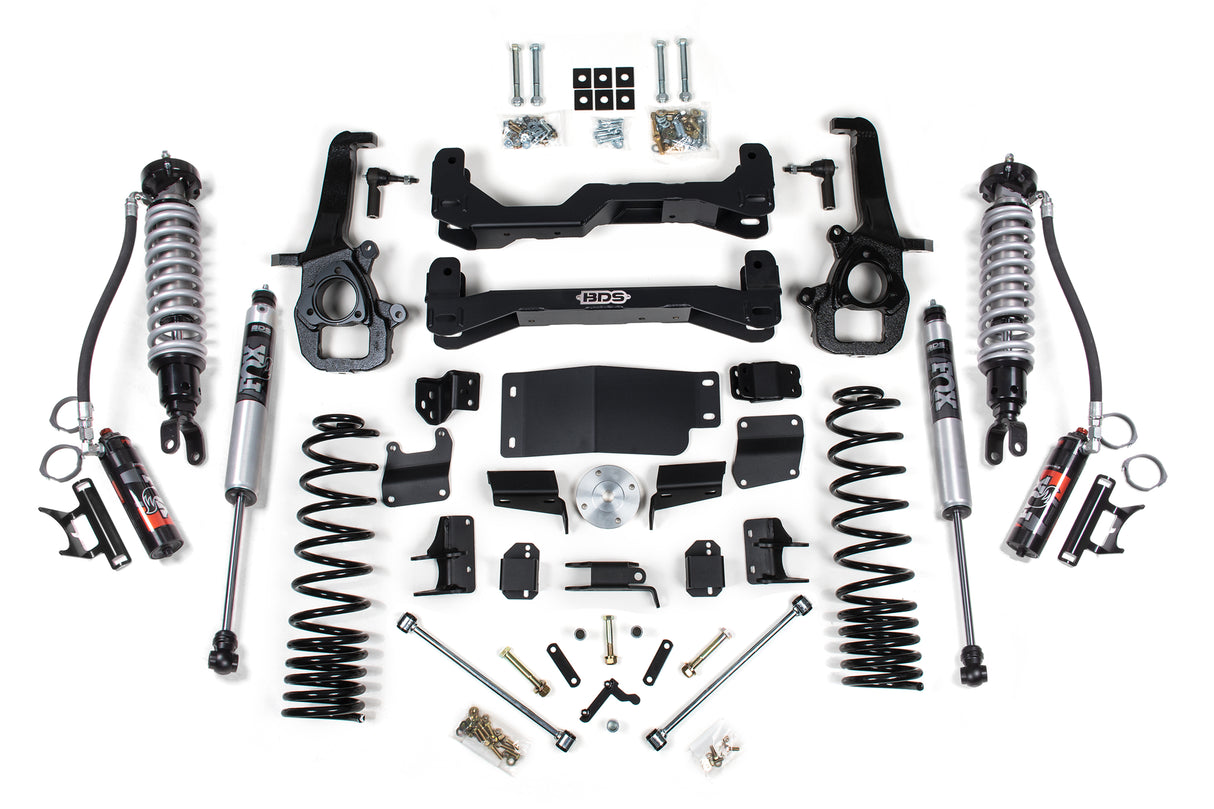

2019-2024 Ram 1500 6" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS2108FPE)

Hit the trails in your 2019-2024 RAM 1500 after installing this BDS 6" coil-over suspension lift kit featuring FOX 2.5 Performance Elite coil-over shocks, with clearance for up to 37" tires. Up front it uses FOX 2.5 coil-over shocks, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, CNC-machined ductile iron steering knuckles with replacement tie rod ends for ESC compatibility, sway bar drops, bump stop extensions, stainless steel braided brake lines, and CV spacers. The rear uses progressive-rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, a track bar relocation bracket, bump stop extensions, sway bar links, and FOX 2.0 internal floating piston shocks.

Features

• Bolt-on FOX 2.5 shocks designed for increased travel and soaking up the roughest terrain
• Dual Speed Compression Adjust adjuster adds versatility and precise tuning, with a remote reservoir and black anodized aluminum reservoir to increase cooling
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX Performance Series internal floating piston gas rear shocks
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5

Notes

• Fits 4WD models only.
• Will NOT work on diesel models.
• RAMs with factory 22" wheels require larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
• Will NOT fit adjustable air ride suspension equipped models.
• Sits 1/2" front high with the preload spacer installed; without the preload spacer the truck sits about 3/8" low.
• Will NOT fit 2019-2022 RAM 1500 Classic models; refer to the 2018 kit listings.
• Vehicles equipped with Offroad or Rebel Package will not achieve the full 6" of lift; net ride height change will be around 5" above stock.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines.
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.

Includes

• BDS022508, 2019-2023 Ram 1500 Rear Box Kit (UPC 658848615407)
• BDS022640, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - DRV (UPC 658848615551)
• BDS022641, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - PASS (UPC 658848615568)
• BDS022642, 2019-2023 Ram Front Box Kit 1 of 2 (UPC 658848615575)
• BDS022643, 2019-2023 Ram Front Box Kit 2 of 2 (UPC 658848615582)
• BDS032508, 2019-2023 Ram 1500 5in Rear Coil Box Kit (UPC 658848616404)
• FOX88406335, Kit: BDS 19-0N Ram 1500, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 6 inchРЎСљ Lift, Dual Speed Compression Adjust
• FOX88426028, Kit: BDS 19-ON Ram 1500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, (UPC 814897013513)
