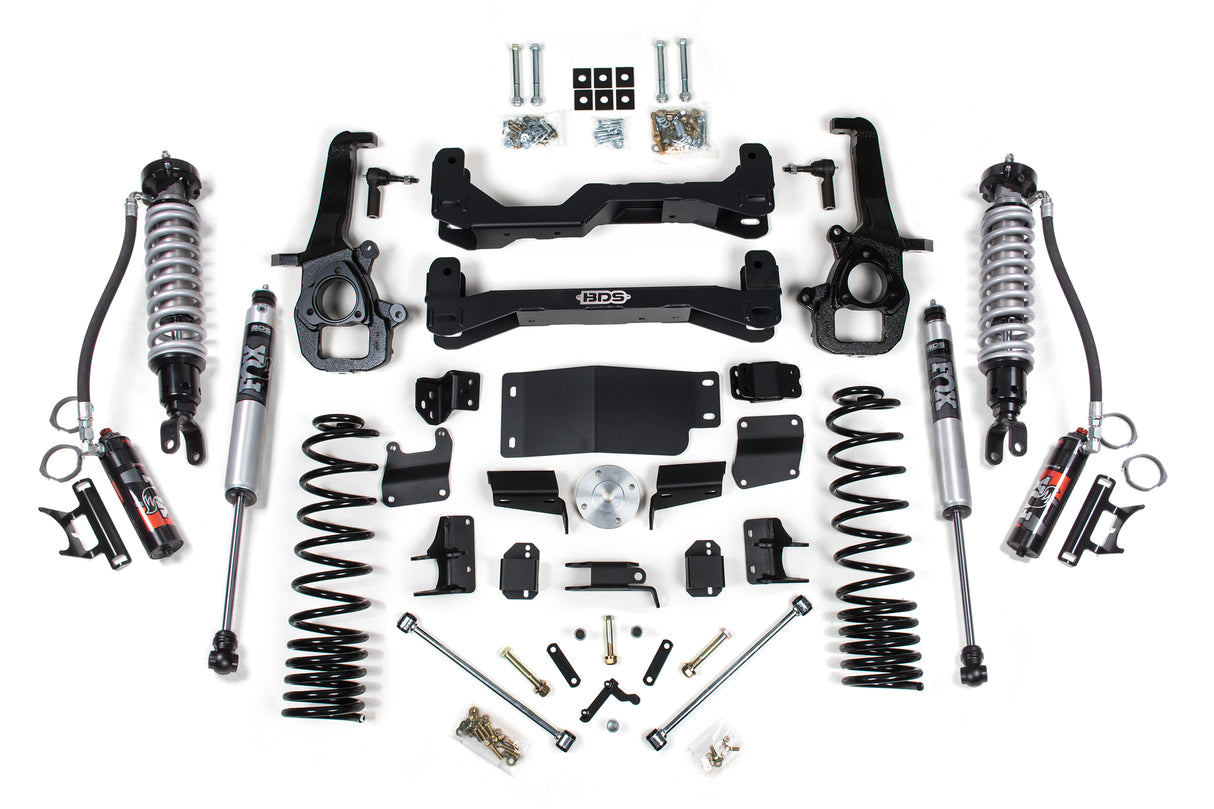

2019-2024 Ram 1500 6" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1756FPE)

BDS 6" coil-over suspension lift kit for the 2019-2024 Ram 1500 4WD, featuring proprietary FOX 2.5 Performance Elite coil-over shocks and clearing up to 37" tires. The high-clearance front end runs the FOX 2.5 coil-overs, 1/4" thick steel crossmembers, a multi-piece differential relocation bracket, and heavy duty skid plates. CNC-machined ductile iron steering knuckles and replacement tie rod ends correct steering geometry and keep the ESC system compliant. The rear runs progressive-rate Pro-Ride coil springs, upper control arm and track bar relocation brackets, bump stop extensions, sway bar links, and FOX 2.0 IFP shocks. The FOX 2.5 coil-overs use a remote reservoir for cooling and a Dual Speed Compression Adjust adjuster offering 10 low-speed and 12 high-speed settings.

Features

• FOX 2.5 Performance Elite coil-overs designed for increased travel and rough terrain
• Dual Speed Compression Adjust adjuster (10 low-speed, 12 high-speed levels) with remote reservoir
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• FOX 2.0 Performance Series IFP rear shocks
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5

Notes

• Fits 4WD models only.
• Will NOT work on diesel models.
• Will NOT fit adjustable air ride suspension equipped models.
• Will NOT fit 2019-2022 RAM 1500 Classic models; refer to the 2018 kit listings.
• Will NOT fit models with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines.
• RAMs with factory 22" wheels require larger bore knuckles due to the larger wheel bearing assembly. Reference build code WPM or WPZ.
• Sits 1/2" front high with the preload spacer installed; without the preload spacer the truck sits about 3/8" low.
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20" wheels can be reinstalled with factory tire size.
• Vehicles with the Offroad or Rebel Package will not achieve the full 6" of lift; net ride height change will be around 5" above stock.

Includes

• BDS022508, 2019-2023 Ram 1500 Rear Box Kit (UPC 658848615407)
• BDS022632, 2019-2023 Ram 1500 Knuckle Box Kit - DRV (UPC 658848615520)
• BDS022633, 2019-2023 Ram 1500 Knuckle Box Kit - PASS (UPC 658848615537)
• BDS022642, 2019-2023 Ram Front Box Kit 1 of 2 (UPC 658848615575)
• BDS022643, 2019-2023 Ram Front Box Kit 2 of 2 (UPC 658848615582)
• BDS032508, 2019-2023 Ram 1500 5in Rear Coil Box Kit (UPC 658848616404)
• FOX88406335, Kit: BDS 19-0N Ram 1500, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 6 inchРЎСљ Lift, Dual Speed Compression Adjust
• FOX88426028, Kit: BDS 19-ON Ram 1500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, (UPC 814897013513)
