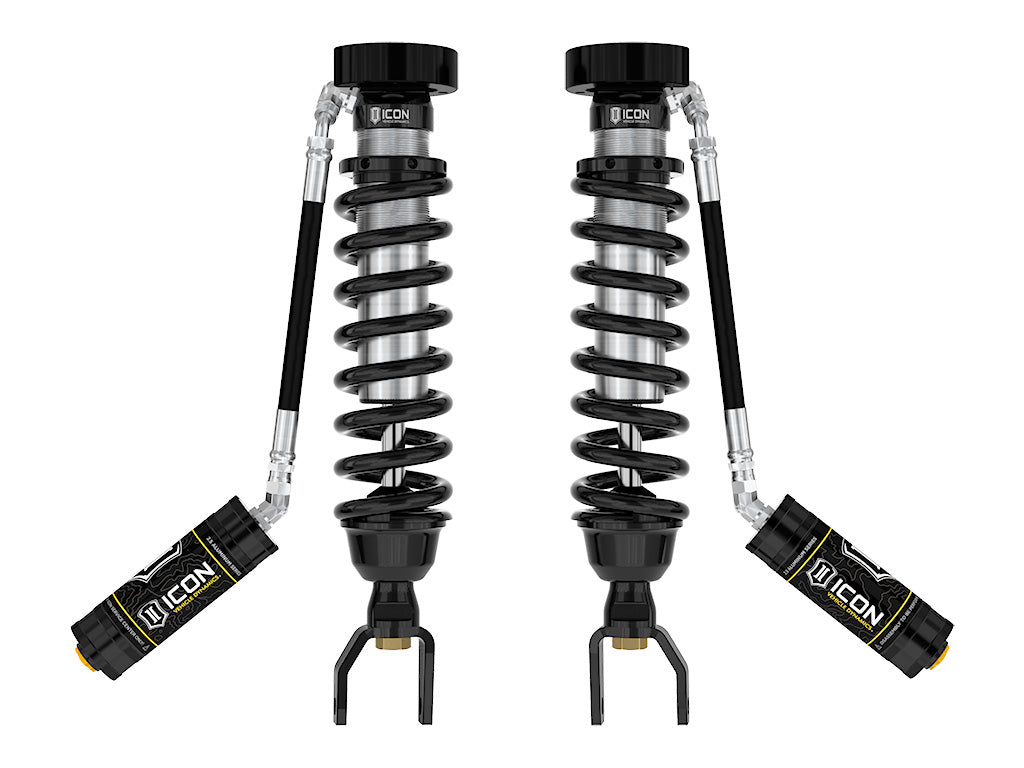

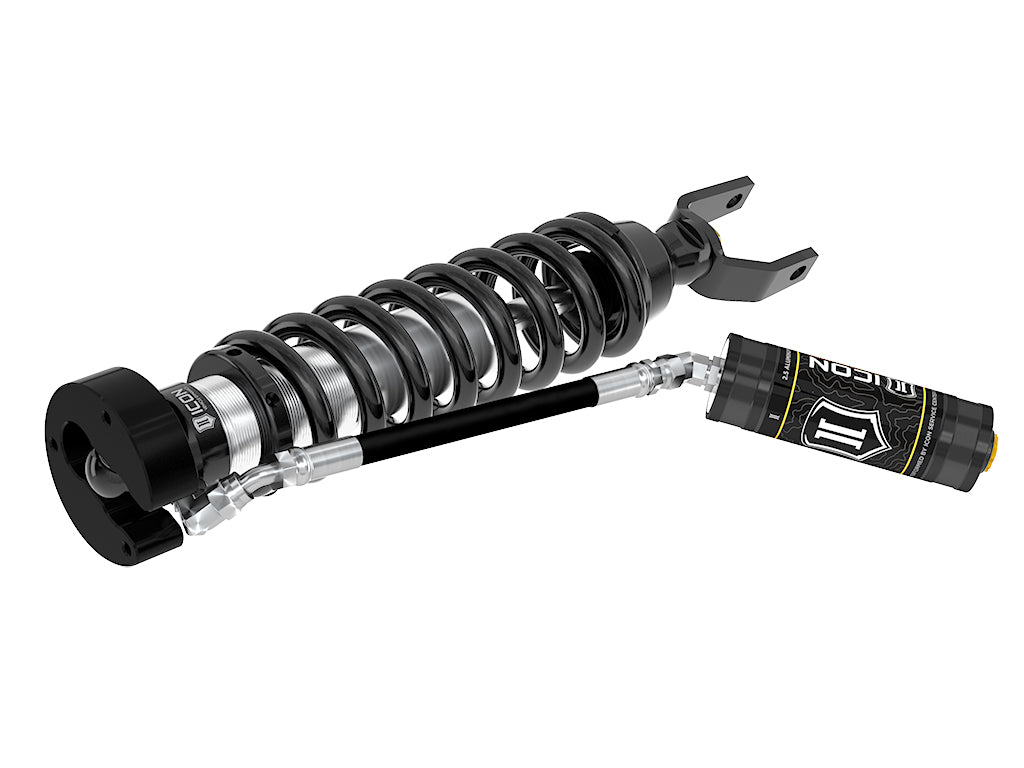

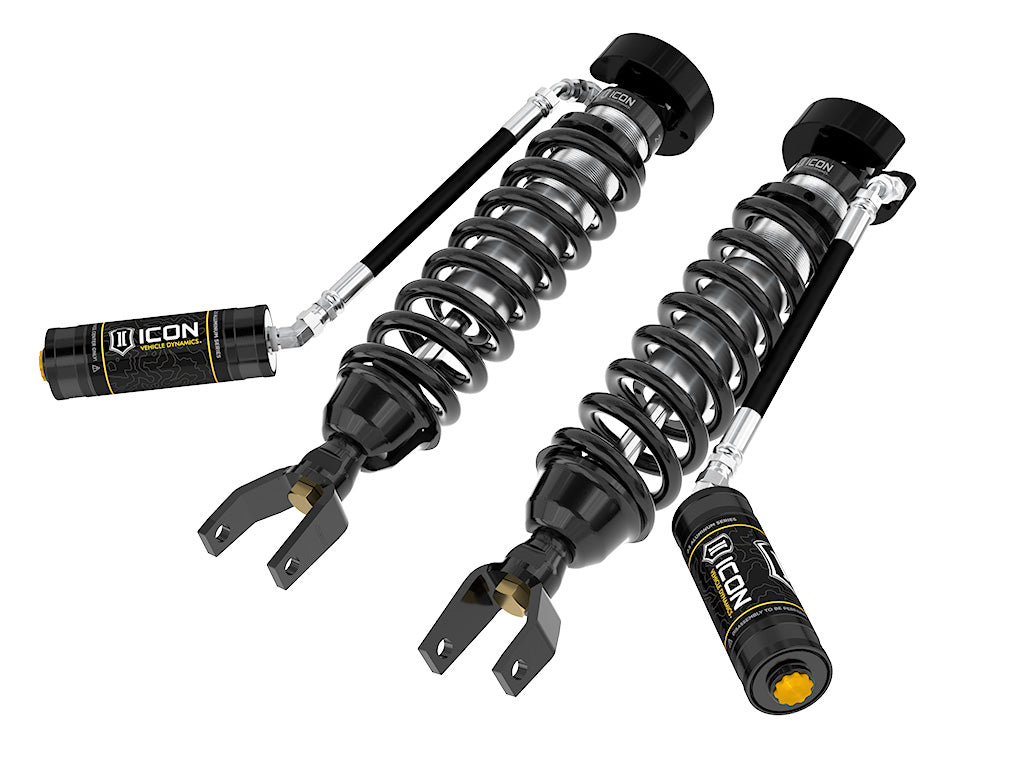

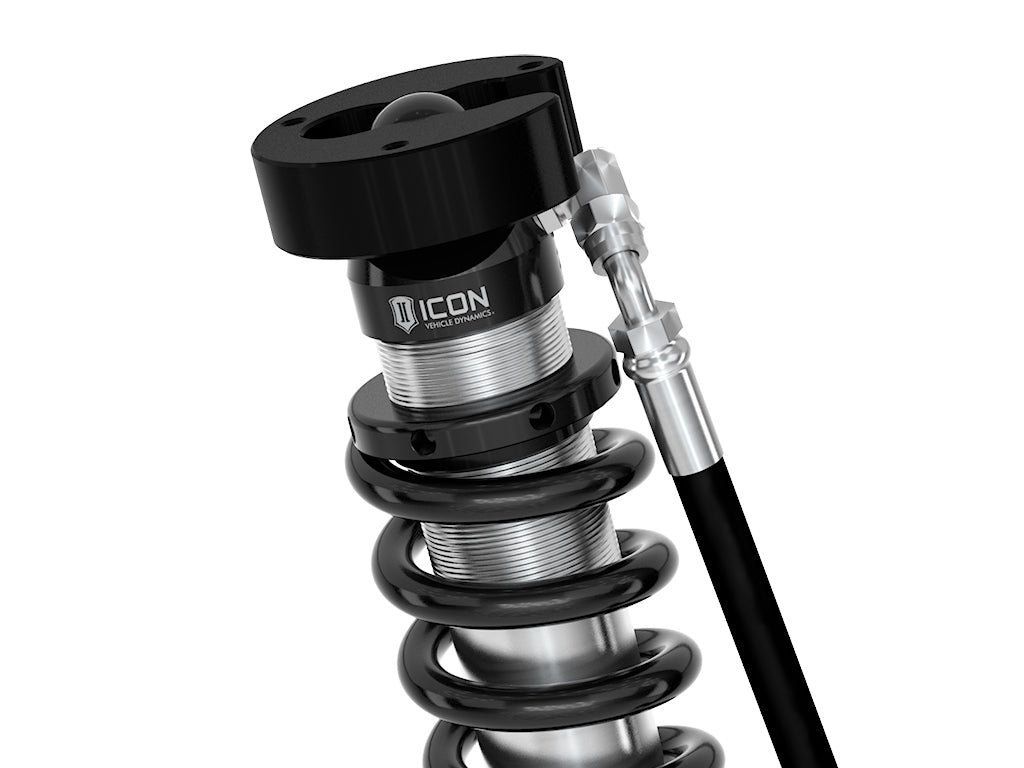

2019-2023 Ram 1500 2.5 RR Front Coilover Kit (ICO211015)

Drop in serious suspension performance on your 2019-2023 Ram 1500 with ICON 2.5 Series coilovers. Remote reservoirs keep temps down and damping consistent when you push hard.

Features

• Increased wheel travel and ride quality over stock
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
• Vehicle specific tuned for superior shock damping and control
• Adjustable from 2-3" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• High strength alloy CNC machined lower mounting clevis

Wheel & Tire Recommendations

• ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Tires: 35" x 12.50" (fender trimming and modifications will be required.)

Important Notes

• These systems are to be used with aftermarket upper control arms only
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Spring not rated for EcoDiesel equipped trucks
• Not for vehicles with rear factory air ride
• Will not fit 2019-UP Ram 1500 Classic models
• 2019-2023 Ram 1500 Rebel will have lift height range of 1.25-2.25" over stock
• Will not fit Ram 1500 TRX

Manufacturer Description

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3" of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
