2019-2023 Ram 1500 3" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1761FPE)

Hit the trails in your 2019-2024 Ram 1500 Rebel with this BDS 3" coil-over lift kit featuring FOX 2.5 Performance Elite coil-overs, with clearance for up to 35" tires. Up front it runs the FOX 2.5 coil-overs, high-arched 1/4" steel crossmembers, multi-piece differential relocation brackets, and heavy-duty skid plates, with CNC-machined ductile iron steering knuckles and replacement tie rod ends to correct steering geometry and keep ESC compatibility. The rear uses progressive-rate Pro-Ride coil springs, upper control arm and track bar relocation brackets, bump stop extensions, sway bar links, and FOX 2.0 IFP performance shocks.

The FOX 2.5 Performance Elite shocks add a remote reservoir for extra fluid capacity and cooling, plus a Dual Speed Compression adjuster offering 10 low-speed and 12 high-speed compression settings via two knobs.

Features

• FOX 2.5 Performance Elite remote-reservoir coil-over shocks built for increased travel
• Dual Speed Compression adjuster: 10 low-speed and 12 high-speed settings
• Black anodized aluminum reservoir for cooling efficiency
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX 2.0 IFP performance series gas rear shocks
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Spring
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9
• Back Spacing: 5

Notes

• Standard knuckle type. Fits 4WD models only.
• Standard Ram 1500 achieves 4" of lift with this kit; Rebel and Off-Road package trucks achieve 3" due to being 1" taller from the factory.
• Will NOT work on diesel models.
• Will NOT fit adjustable air ride suspension equipped models.
• Will NOT fit 2019-2022 Ram 1500 Classic models; refer to the 2018 kit listings.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for mounted cooling lines.
• Rams with factory 22" wheels require the larger bore knuckles due to the larger wheel bearing assembly. Reference build code WPM or WPZ.
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.
• If using 18" wheels with maximum recommended backspacing, test fit wheels on the vehicle before mounting tires to ensure clearance.

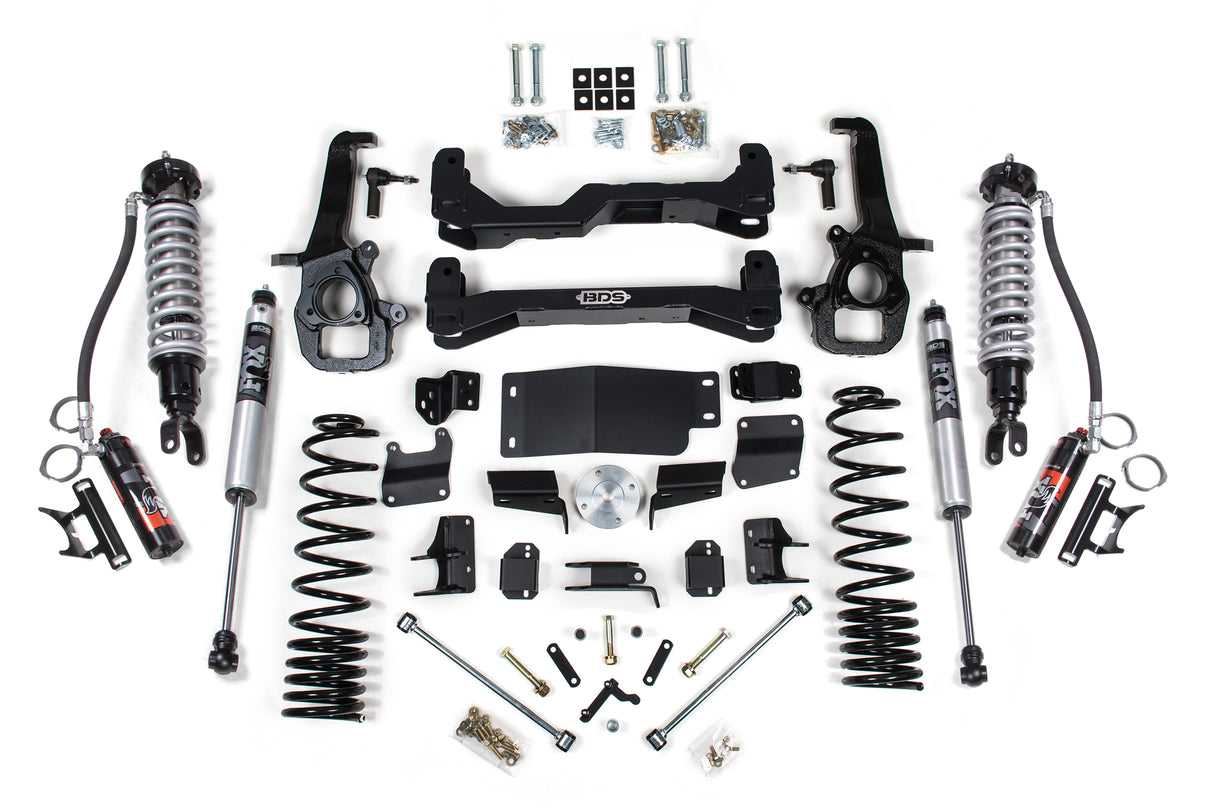

Includes

• BDS022508, 2019-2023 Ram 1500 Rear Box Kit (UPC 658848615407)
• BDS022632, 2019-2023 Ram 1500 Knuckle Box Kit - DRV (UPC 658848615520)
• BDS022633, 2019-2023 Ram 1500 Knuckle Box Kit - PASS (UPC 658848615537)
• BDS022642, 2019-2023 Ram Front Box Kit 1 of 2 (UPC 658848615575)
• BDS022643, 2019-2023 Ram Front Box Kit 2 of 2 (UPC 658848615582)
• BDS032308, 2019-2023 Ram 1500 3in Rear Coil Box Kit (UPC 658848616350)
• FOX88406383, Kit: BDS 19-ON Ram 1500, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 4 inch Lift, Dual Speed Compression Adjust
• FOX88426028, Kit: BDS 19-ON Ram 1500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, (UPC 814897013513)
